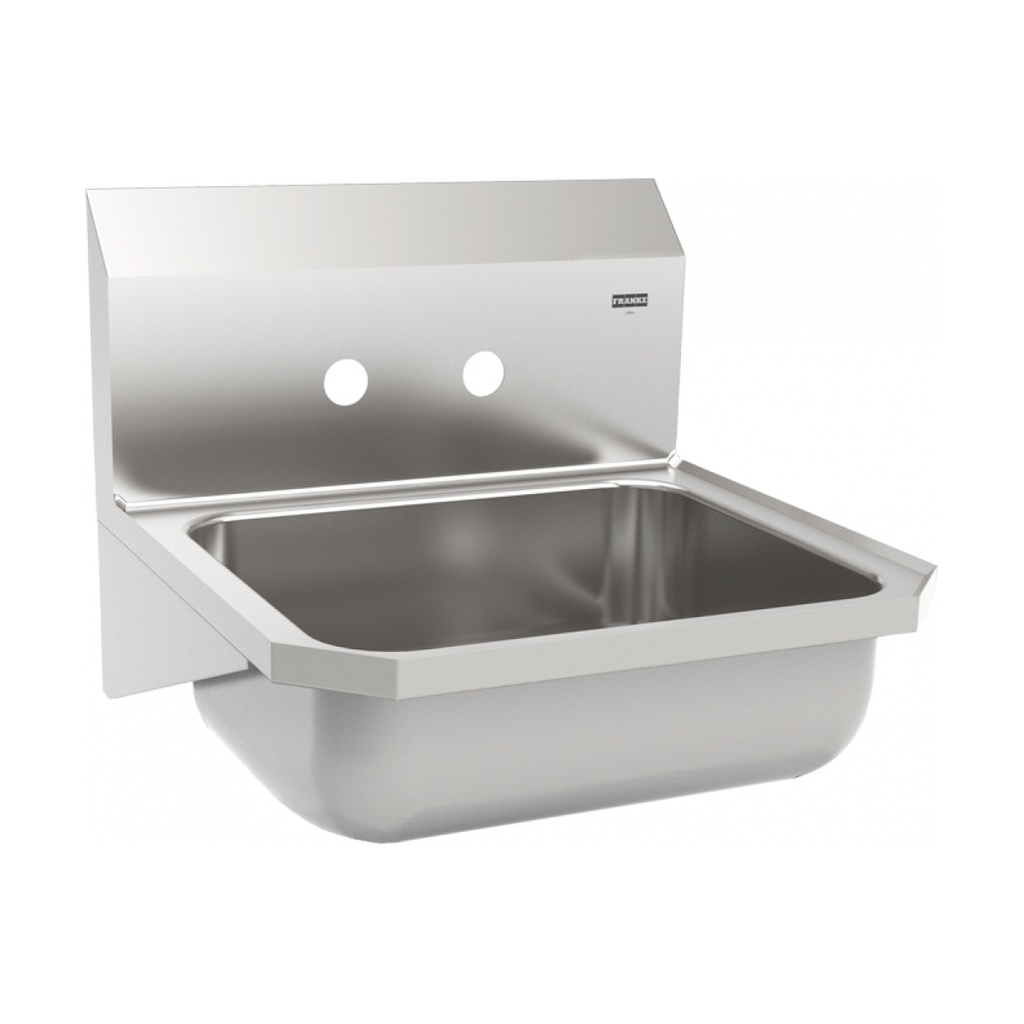

Franke WHB1616-3-1 Wall Hung Hand Wash Basin 1 Hole Stainless Steel
Hand wash basins
WHB1616-3 Wall hung wash basin,18ga
Article Number
214.0493.266
Wall hung basin. Centre back waste location. 18 gauge (1.2 mm), type 304 (CNS 18/10) stainless steel. Exposed surfaces are #4 satin finished. Radius coved bowl corners. One piece wall hanger. Includes 1 1/2" (38 mm) duplex waste assembly with rubber stopper. Optional shroud also available: WT-RS.

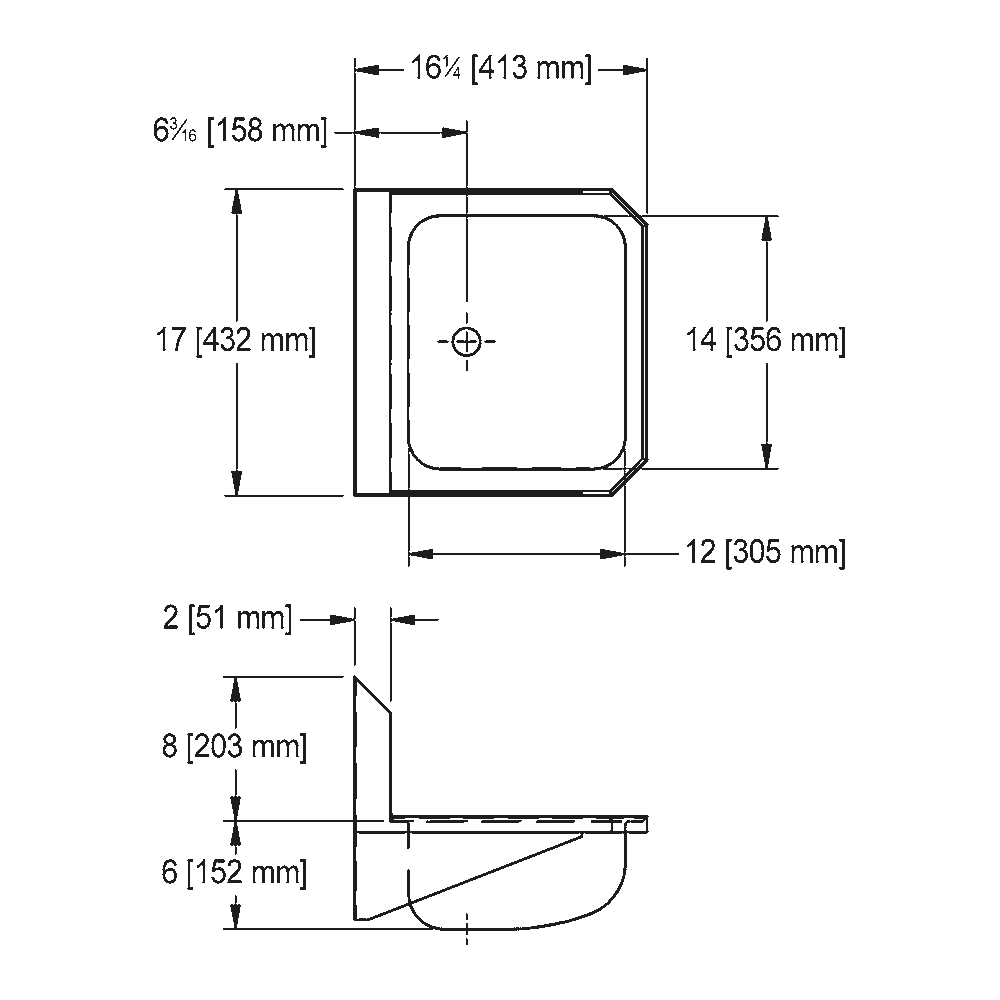

Certified to ASME A112.19.3-2008 / CSA B45.4-08. Separate sink carrier is not required. Model Options: WHB1616-3-1, 1 faucet hole 1 1/2" (38 mm). WHB1616-3-2, 2 faucet holes, 1 1/2" (38 mm) diameter, 4" (102 mm) centreset. WHB1616-3 - Custom (non-returnable), specify hole drilling. 16 1/4 x 17" Overall. 12 x 14 x 6" Bowl. (FB x LR x D). 413 x 432 mm Overall. 305 x 356 x 152 mm Bowl. (FB x LR x D).
Product Information
Features
Waste assembly Included
Waste fitting Duplex waste with stopper
Overflow location No
Product Dimensions
Overall front to back 16.26 "
Overall left to right 17.008 "
Overall height 14.055 "
Bowl dimension front to back 12.008 "
Bowl dimension left to right 14.016 "
Bowl depth 5.984 "
Installation
Installation type Wall mount
Installation system Wall hanger bracket
Recommended wall carrier IWC2203 sold separately
Product identification
Model WHB1616-3
Brand FRANKE
Product category Hand wash basins
Product specifications
Gauge 18
Certification cUPC
Type of material Type 304
Material code CNS 18/10
Surface finish #4 Satin
Number of bowls 1
Splash location Back
Number of faucet holes Specify when ordering
Waste location Center back
Waste size 1 1/2" (38mm)
Tailpiece diameter (in) 1 1/2" (38mm)
