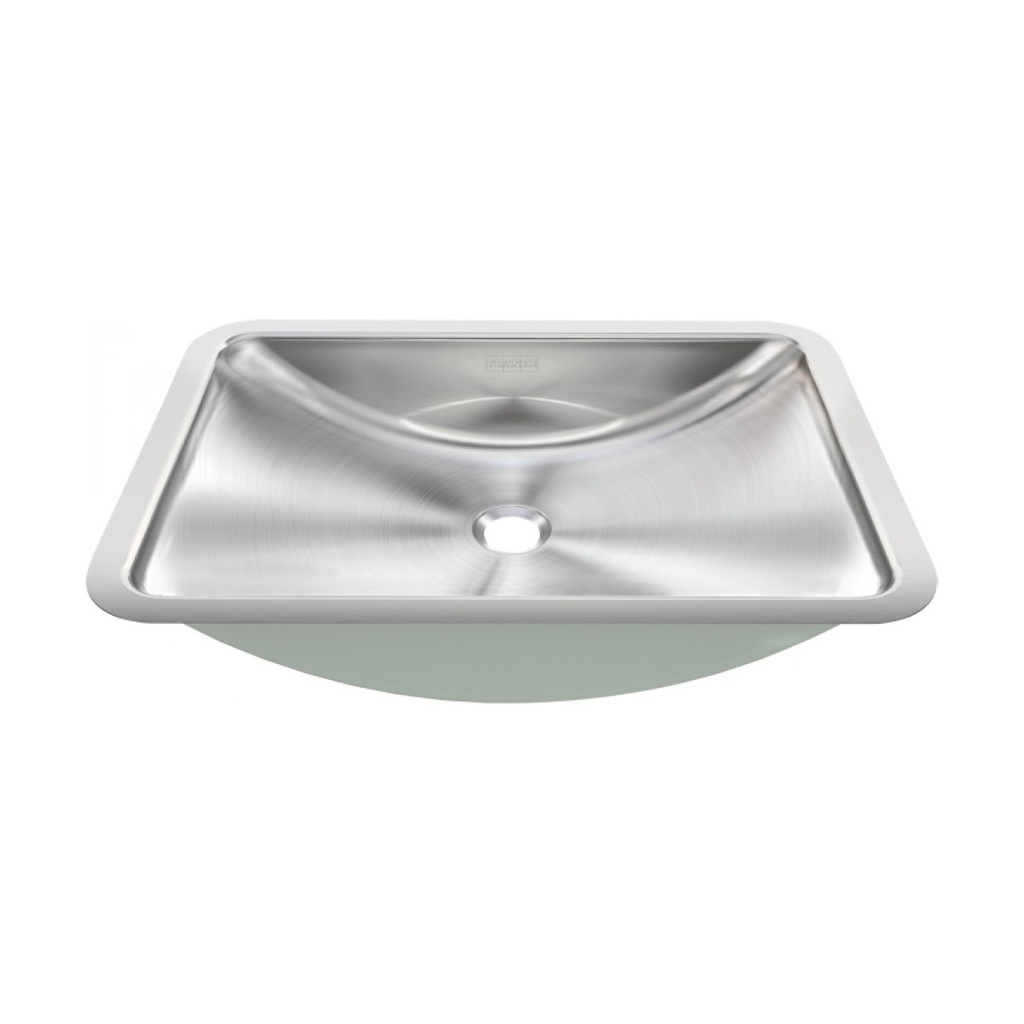

Franke WB1420U-5 Vanity Undermount 18 Gauge Sink Stainless Steel
Vanity basins
WB1420U-5 Vanity undermount,18ga
Article Number
214.0493.227
Single compartment undermount vanity basin. 18 gauge (1.2 mm), type 304 (CNS 18/10) stainless steel. Exposed surfaces are #4 satin finished. Undercoated to reduce condensation and resonance. Includes cutout template.

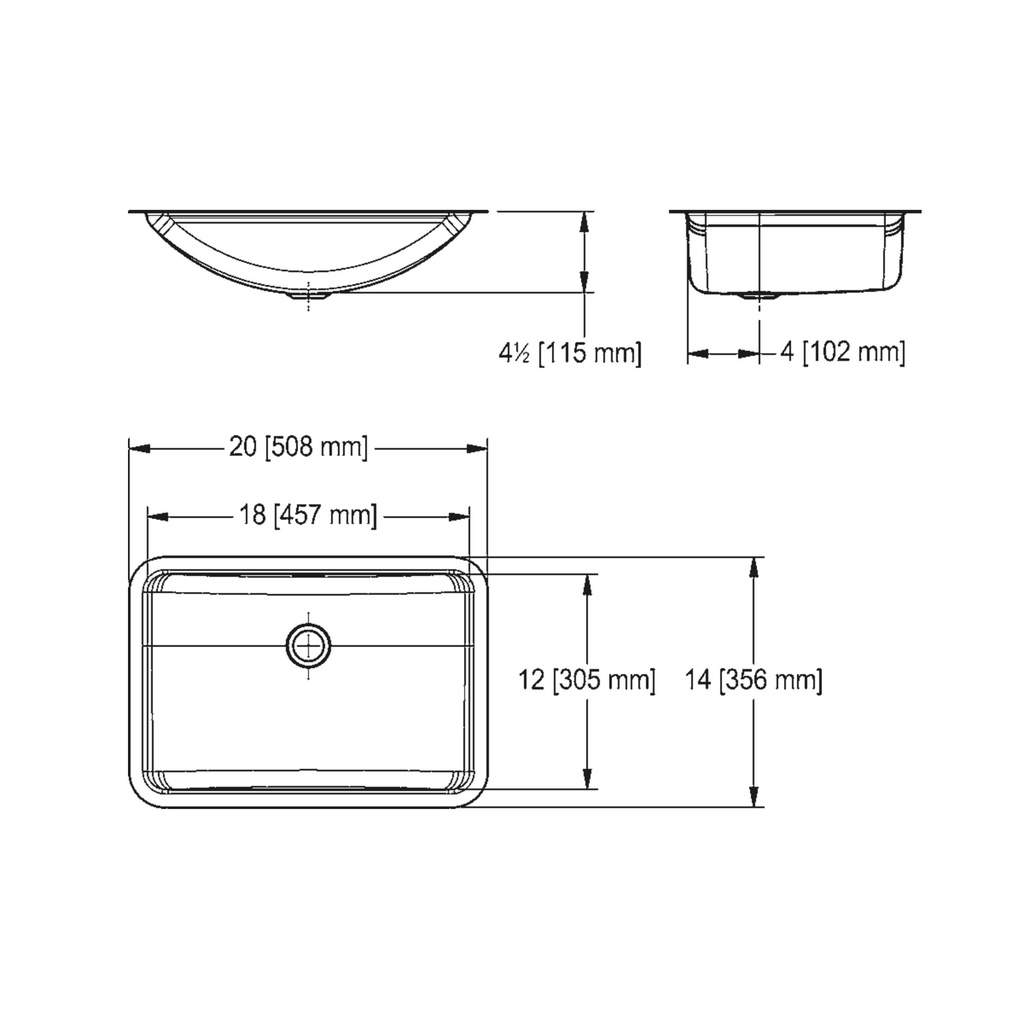

Certified to ASME A112.19.3-2008 / CSA B45.4- 08. Centre back waste location, accepts 1 1/4" (32 mm) waste assembly (not included). 14 x 20" Overall. 12 x 18 x 4 1/2" Bowl. (FB x LR x D). 356 x 508 mm Overall. 305 x 457 x 114 mm Bowl. (FB x LR x D).
Product Information
Features
Overflow location No
Waste assembly Not included
Product Dimensions
Overall front to back 14.016 "
Overall left to right 20 "
Bowl dimension front to back 12.008 "
Bowl dimension left to right 17.992 "
Bowl depth 4.488 "
Installation
Installation type Undermount
Product identification
Model WB1420U-5
Brand FRANKE
Product category Vanity basins
Product specifications
Gauge 18
Wheelchair accessibility Yes
Certification cUPC
Type of material Type 304
Material code CNS 18/10
Surface finish Mirror rim, satin bowl
Number of bowls 1
Faucet ledge position No
Waste location Center back
Waste size 1 1/4" (32mm)
