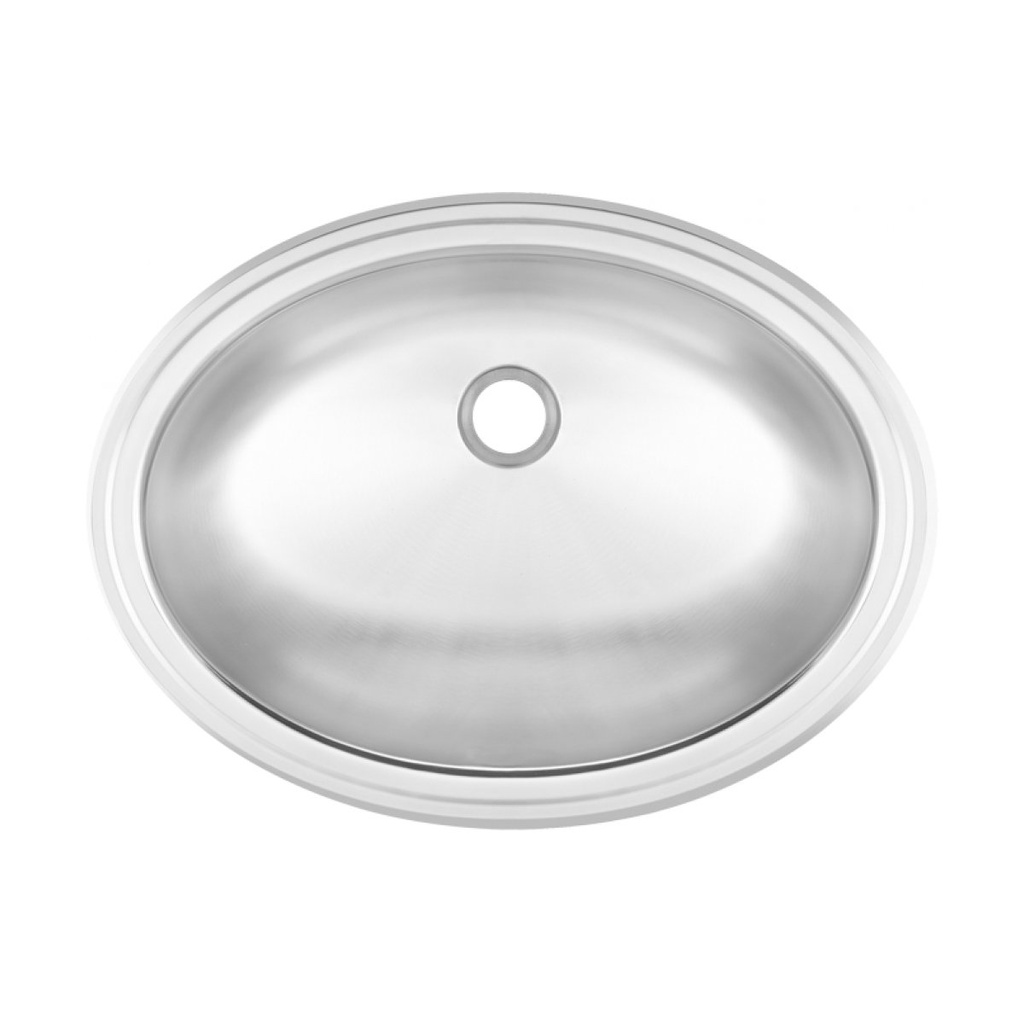

Franke V1418-5 Vanity Basin No Ledge 18 Gauge Stainless Steel
Vanity basins
V1418-5 Vanity no ledge,18ga
Article Number
214.0493.194
Single compartment self rimming vanity basin less faucet ledge. 18 gauge (1.2 mm), type 304 (CNS 18/10) stainless steel. Mirror finished rim, #4 satin finished bowl. Undercoated to reduce condensation and resonance. Includes factory applied rim seal, cutout template, and installation hardware.
Certified to ASME A112.19.3-2008 / CSA B45.4-08. Wheelchair accessible: meets ADA (Americans with disabilities act guidelines), ANSI A117.1 (Accessible and usable buildings and facilities), and CSA B651-04 (Accessible design for the built environment). Check local codes to ensure compliance.
Centre back waste location, accepts 1 1/4" (32 mm) waste assembly (not included). Model Option: V1418-5D, Centre back waste location. Includes 1 1/2" (38 mm) duplex waste assembly with rubber stopper, model 100. 13 3/4 x 18 1/4" Overall. 11 x 15 1/2 x 5" Bowl. (FB x LR x D). 349 x 464 mm Overall. 279 x 394 x 127 mm Bowl. (FB x LR x D).
Product Information
Features
Overflow location No
Waste assembly Not included

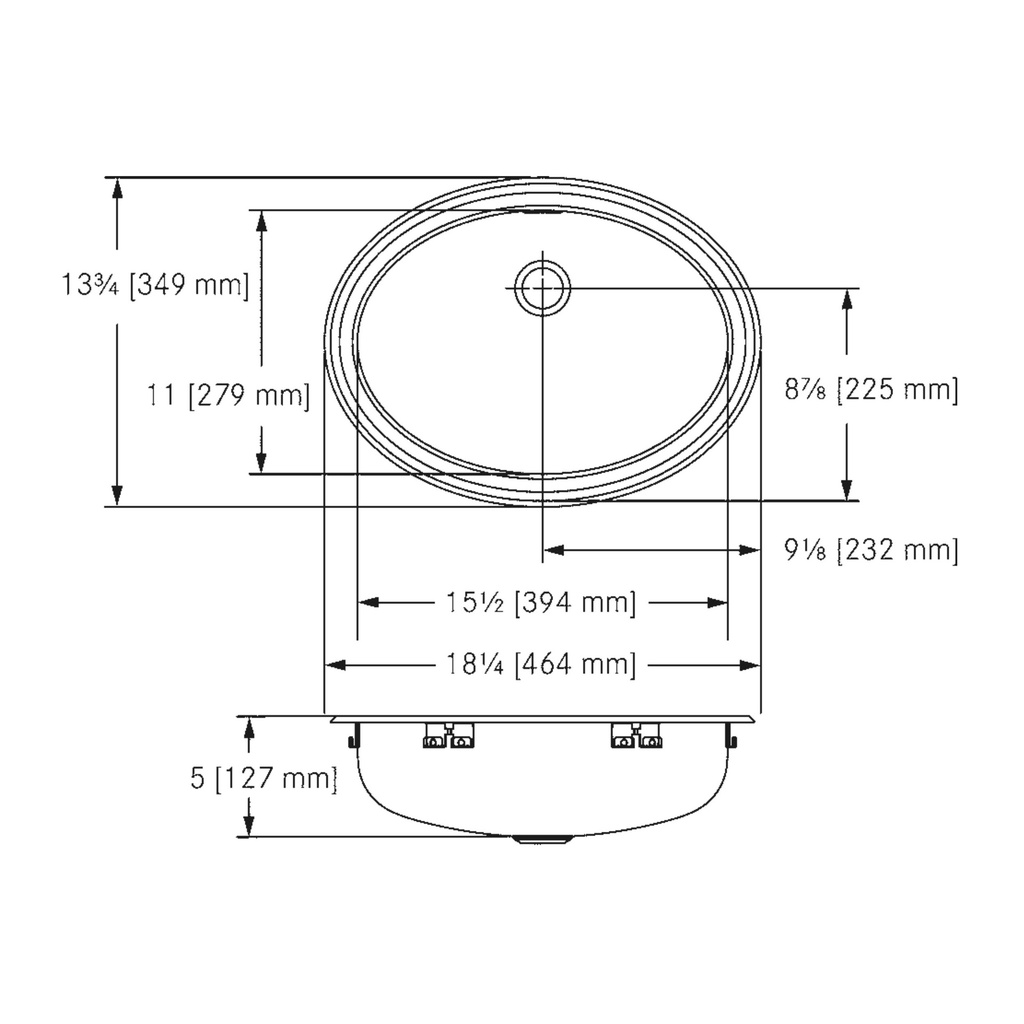

Product Dimensions
Overall front to back 13.74 "
Overall left to right 18.268 "
Bowl dimension front to back 10.984 "
Bowl dimension left to right 15.512 "
Bowl depth 5 "
Installation
Installation type Topmount
Installation system EZ Claw
Product identification
Model V1418-5
Brand FRANKE
Product category Vanity basins
Product specifications
Gauge 18
Wheelchair accessibility Yes
Certification cUPC
Type of material Type 304
Material code CNS 18/10
Surface finish Mirror rim, satin bowl
Number of bowls 1
Faucet ledge position No
Waste location Center back
Waste size 1 1/4" (32mm)
