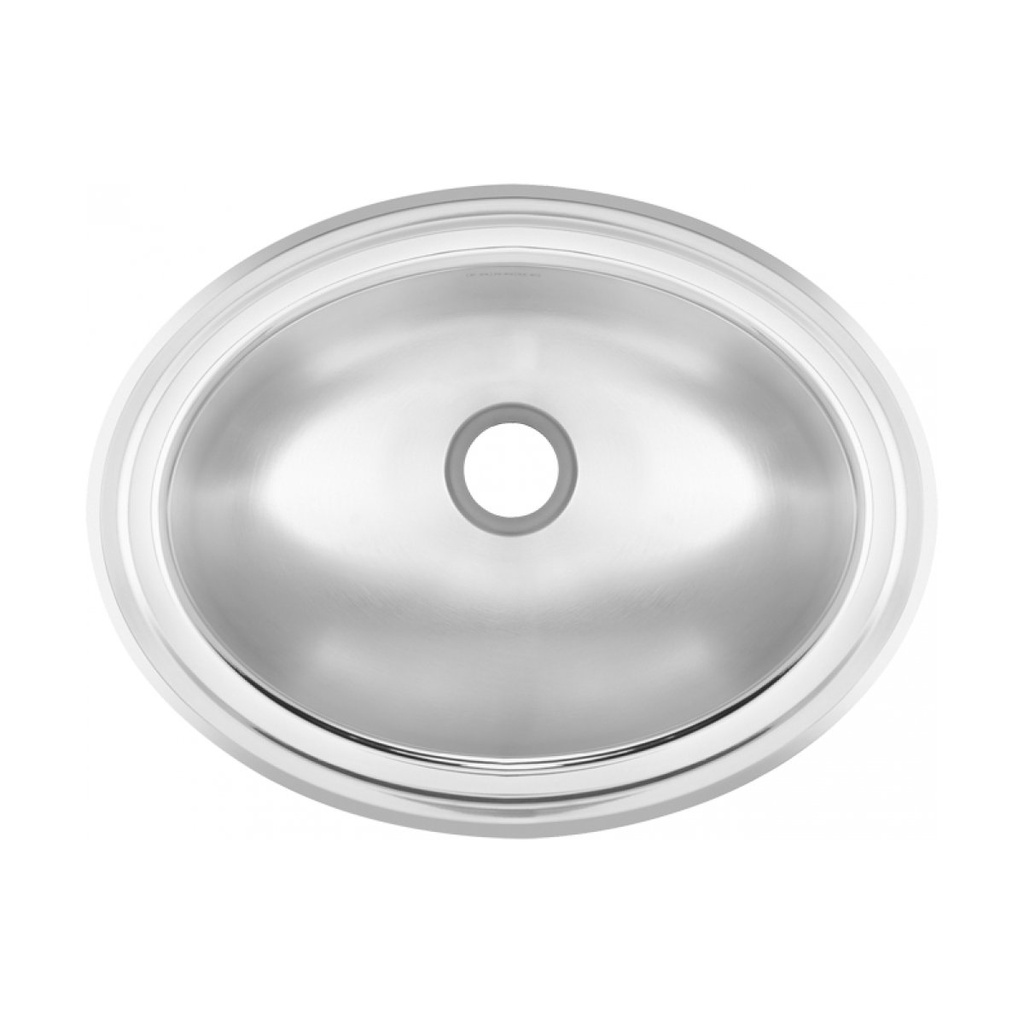

Franke V1114-5D Vanity Basin No Ledge 18 Gauge Stainless Steel
Vanity basins
V1114-5D Vanity no ledge,18ga
Article Number
214.0493.193
Single compartment self rimming vanity basin less faucet ledge. 18 gauge (1.2 mm), type 304 (CNS 18/10) stainless steel. Mirror finished rim, #4 satin finished bowl. Undercoated to reduce condensation and resonance. Includes factory applied rim seal, cutout template, and installation hardware.
Certified to ASME A112.19.3-2008 / CSA B45.4-08. Wheelchair accessible: meets ADA (Americans with disabilities act guidelines), ANSI A117.1 (Accessible and usable buildings and facilities), and CSA B651-04 (Accessible design for the built environment). Check local codes to ensure compliance.

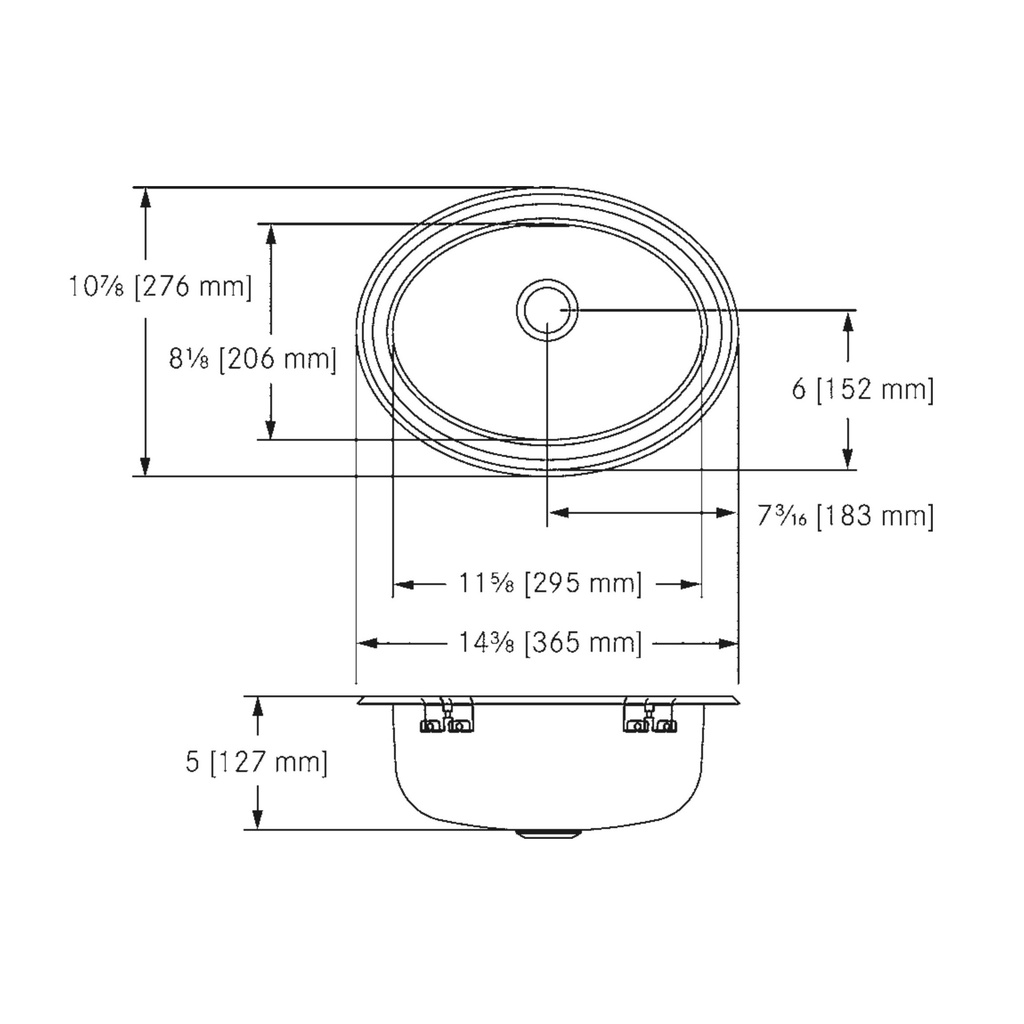

V1114-5D, Centre back waste location. Includes 1 1/2" (38 mm) duplex waste assembly with rubber stopper, model 100. 10 7/8 x 14 7/8" Overall. 8 1/8 x 11 5/8 x 5" Bowl. (FB x LR x D). 276 x 378 mm Overall. 206 x 295 x 127 mm Bowl. (FB x LR x D).
Product Information
Features
Overflow location No
Waste assembly Included
Waste fitting Duplex waste with stopper
Product Dimensions
Overall front to back 10.866 "
Overall left to right 14.37 "
Bowl dimension front to back 8.11 "
Bowl dimension left to right 11.614 "
Bowl depth 5 "
Installation
Installation type Topmount
Installation system EZ Claw
Product identification
Model V1114-5D
Brand FRANKE
Product category Vanity basins
Product specifications
Gauge 18
Wheelchair accessibility Yes
Certification cUPC
Type of material Type 304
Material code CNS 18/10
Surface finish Mirror rim, satin bowl
Number of bowls 1
Faucet ledge position No
Waste location Center back
Waste size 1 1/2" (38mm)
Tailpiece diameter (in) 1 1/2" (38mm)
