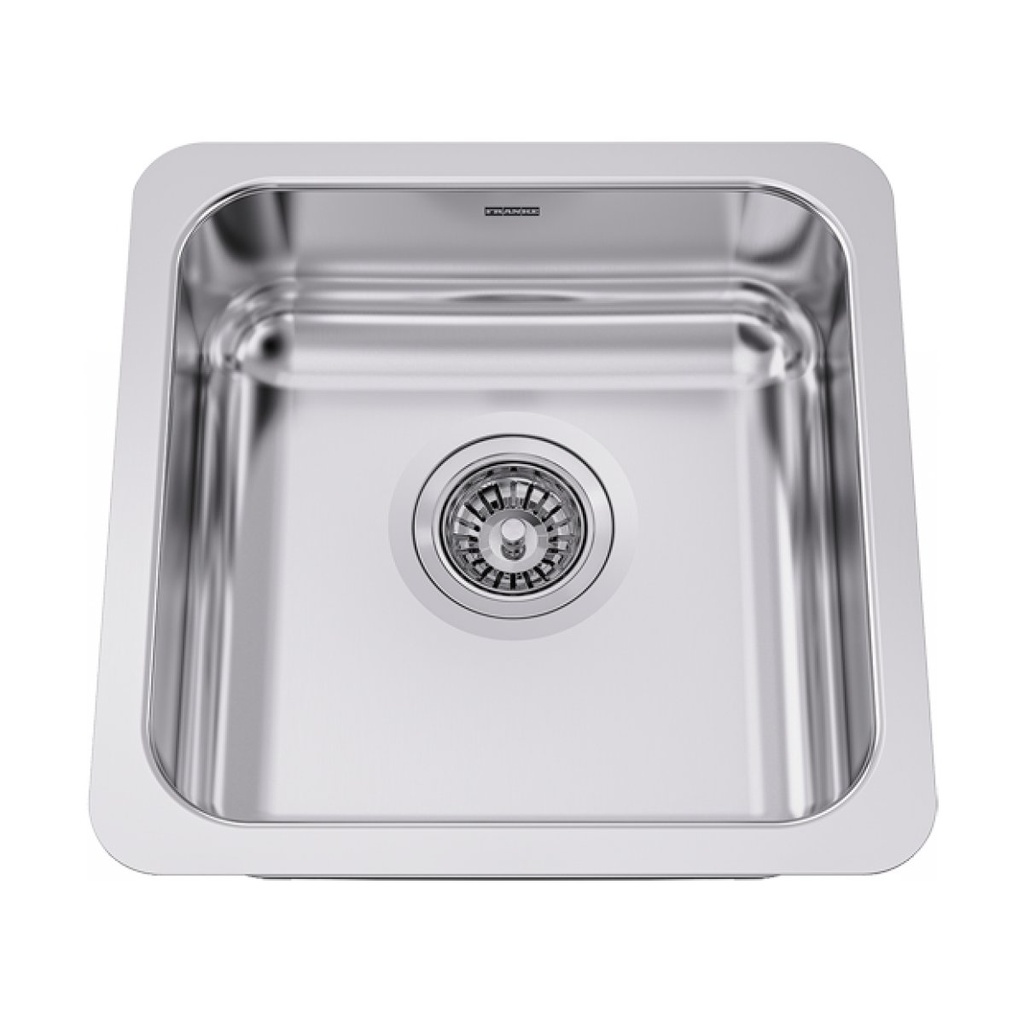

Franke UCS6808P-1 Single Undermount Sink 18 Gauge Stainless Steel
Stainless steel sinks
UCS6808P-1 Undermount, single bowl, 18ga
Article Number
207.0683.126
Single compartment undermount sink. 18 gauge (1.2 mm), type 304 (CNS 18/10) stainless steel. Exposed surfaces are #4 satin finished. Undercoated to reduce condensation and resonance. Includes waste fitting, cutout template, and installation hardware.

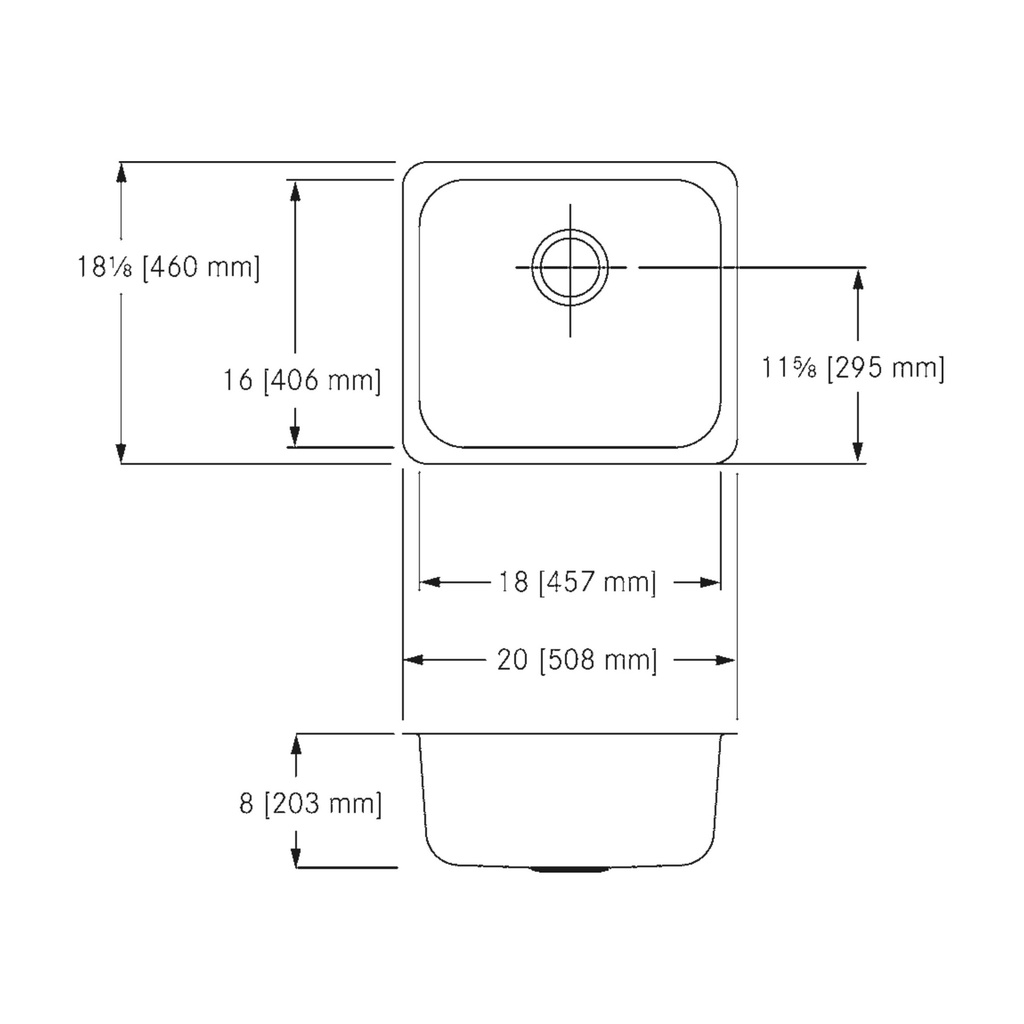

Certified to ASME A112.19.3-2008 / CSA B45.4-08. Centre back waste location, 3 1/2" (89 mm) crumb cup strainer with 1 1/2" (DN38) brass tailpiece. 18 1/8 x 20" Overall. 16 x 18 x 8" Bowl. (FB x LR x D). 460 x 508 mm Overall. 406 x 457 x 203 mm Bowl. (FB x LR x D).
Product Information
Features
Waste assembly Included
Waste fitting Crumb cup waste assembly
Product Dimensions
Overall front to back 18.11 "
Overall left to right 20 "
Bowl dimension front to back 15.984 "
Bowl dimension left to right 17.992 "
Bowl depth 7.992 "
Installation
Installation type Undermount
Product identification
Model UCS6808P-1
Brand FRANKE
Product category Stainless steel sinks
Product specifications
Gauge 18
Certification cUPC
Type of material Type 304
Material code CNS 18/10
Surface finish #4 Satin
Number of bowls 1
Faucet ledge position No
Waste location Left rear
Waste size 3 1/2" (89mm)
Tailpiece diameter (in) 1 1/2" (38mm)
