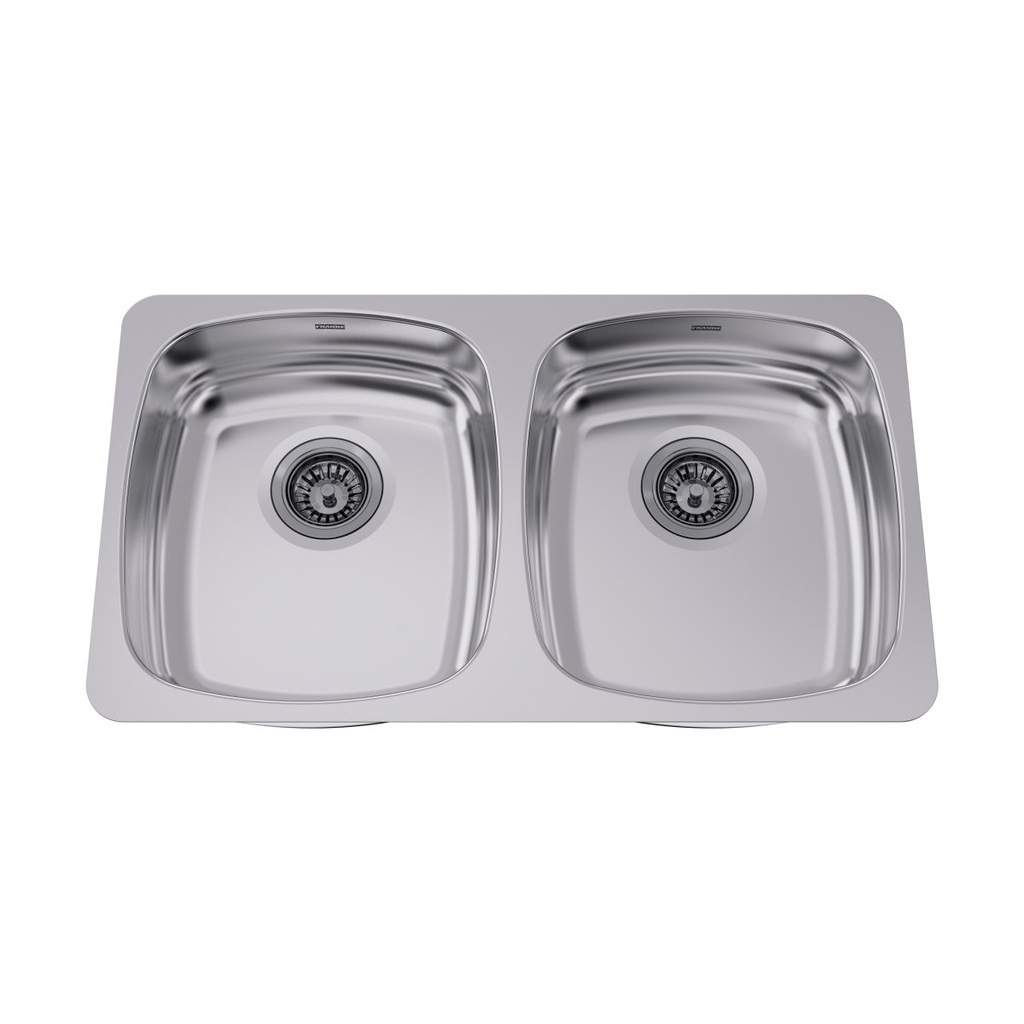

Franke UCD6405P-1 Double Undermount Sink 18 Gauge Stainless Steel
Stainless steel sinks
UCD6405P-1 Undermount, double bowl, 18ga
Article Number
207.0683.120
Double compartment undermount sink. 18 gauge (1.2 mm), type 304 (CNS 18/10) stainless steel. Exposed surfaces are #4 satin finished. Undercoated to reduce condensation and resonance. Includes waste fittings, cutout template, and installation hardware.
Certified to ASME A112.19.3-2008 / CSA B45.4-08. Wheelchair accessible: meets ADA (Americans with disabilities act guidelines) and ANSI A117.1 (Accessible and usable buildings and facilities). Check local codes to ensure compliance. Centre back waste location. Includes 3 1/2" (89 mm) crumb cup strainer with 1 1/2" (DN38) brass tailpiece. 17 3/4 x 30 7/8" Overall. 16 x 14 x 5" Bowl. (FB x LR x D). 451 x 784 mm Overall. 406 x 356 x 127 mm Bowl. (FB x LR x D).
Product Information
Features
Waste assembly Included
Waste fitting Crumb cup waste assembly

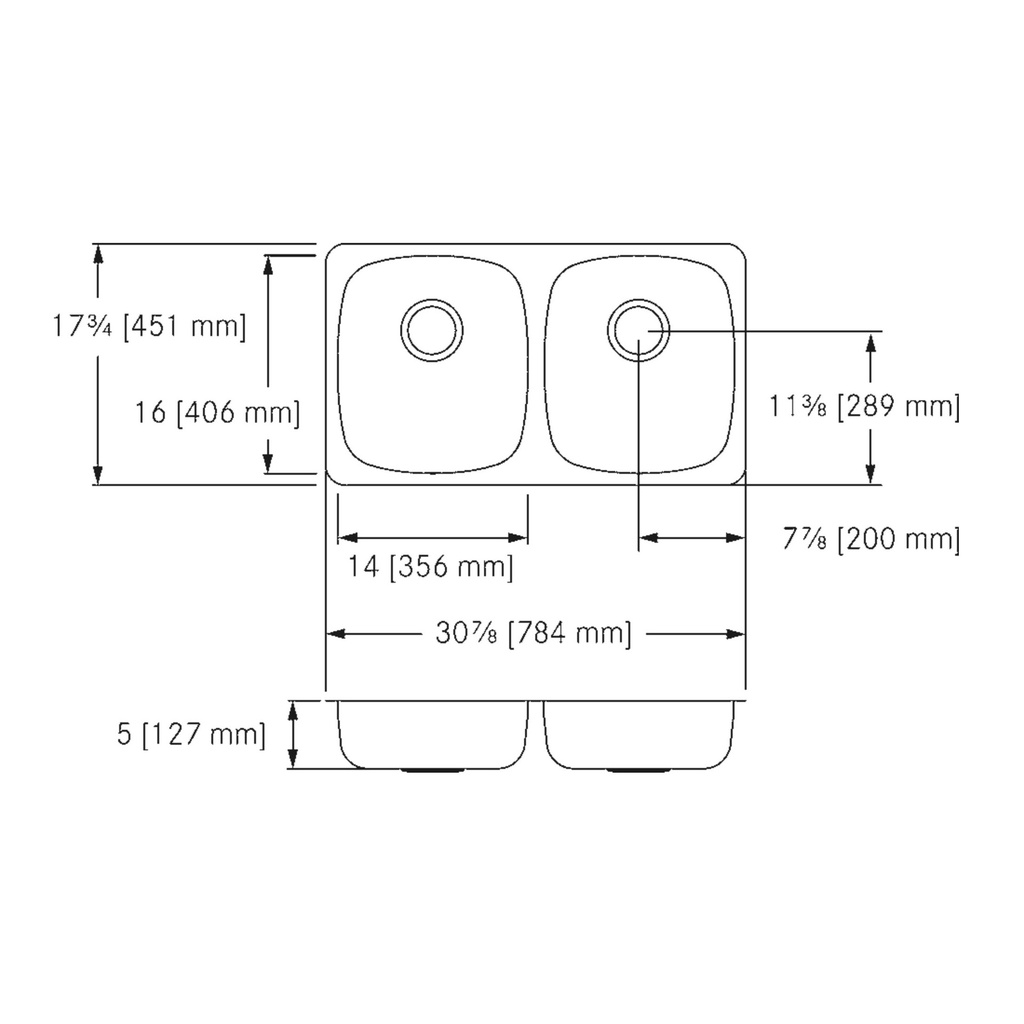

Product Dimensions
Overall front to back 17.756 "
Overall left to right 30.866 "
Bowl dimension front to back 15.984 "
Bowl dimension left to right 14.016 "
Bowl depth 5 "
Installation
Installation type Undermount
Product identification
Model UCD6405P-1
Brand FRANKE
Product category Stainless steel sinks
Product specifications
Gauge 18
Certification cUPC
Type of material Type 304
Material code CNS 18/10
Surface finish #4 Satin
Number of bowls 2
Faucet ledge position No
Waste location Center back
Waste size 3 1/2" (89mm)
Tailpiece diameter (in) 1 1/2" (38mm)
