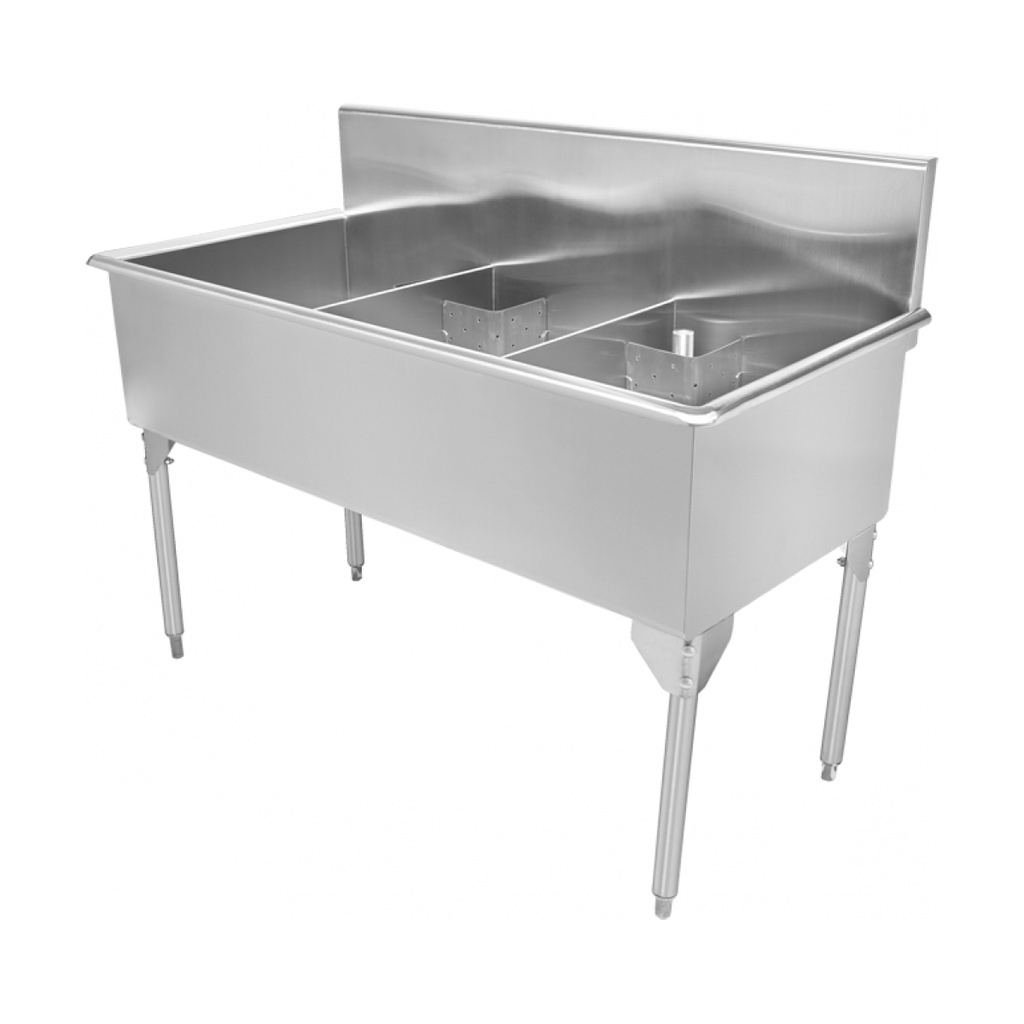

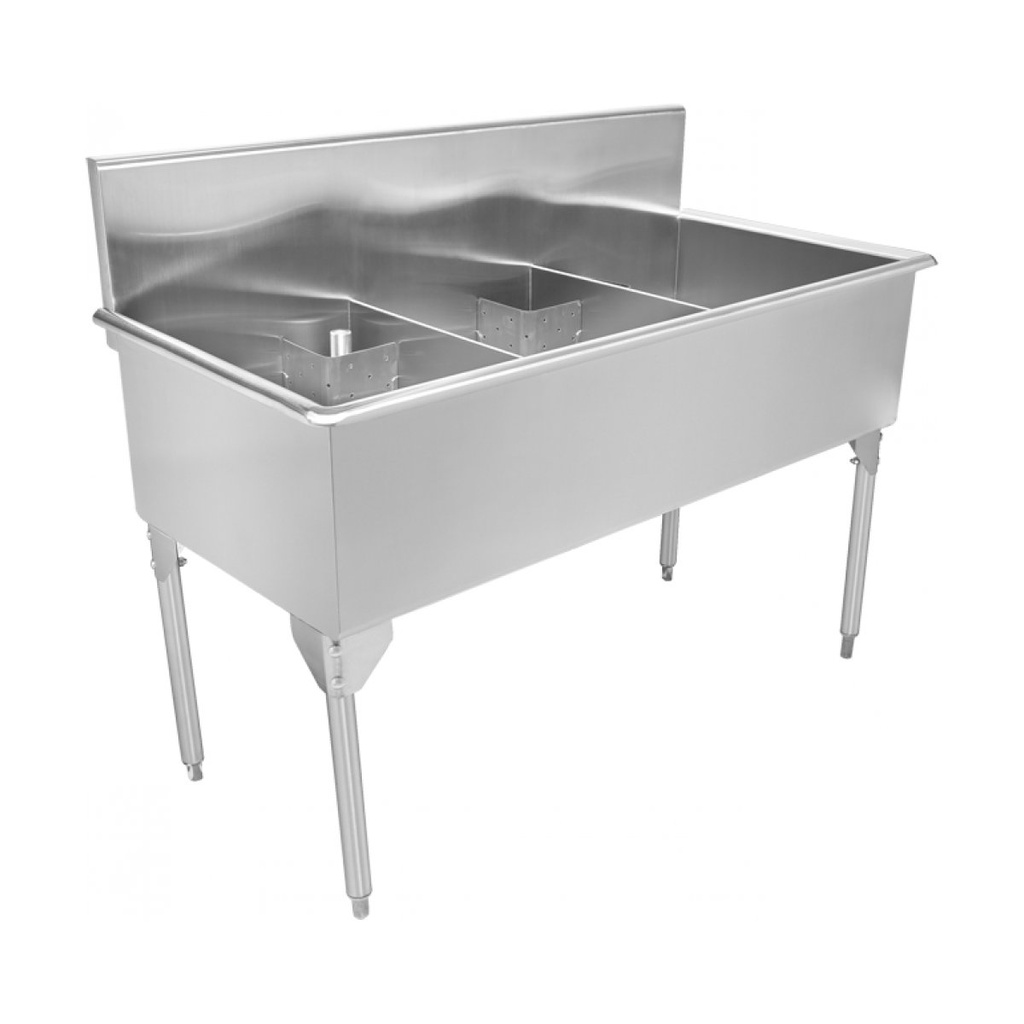

Franke TL2454-1-2 Classic Series 16 Gauge Triple Sink
Scullery sinks
TL2454-1 Classic 16 ga, triple
Article Number
253.0221.436
Triple compartment scullery sink. 16 gauge (1.5 mm), type 304 (CNS 18/10) stainless steel. Polished to a #4 satin finish. Sink compartments sloped to drain with radius coved corners on front and back only. Rolled rim. Stainless steel tubular legs with adjustable feet. Includes waste fittings.

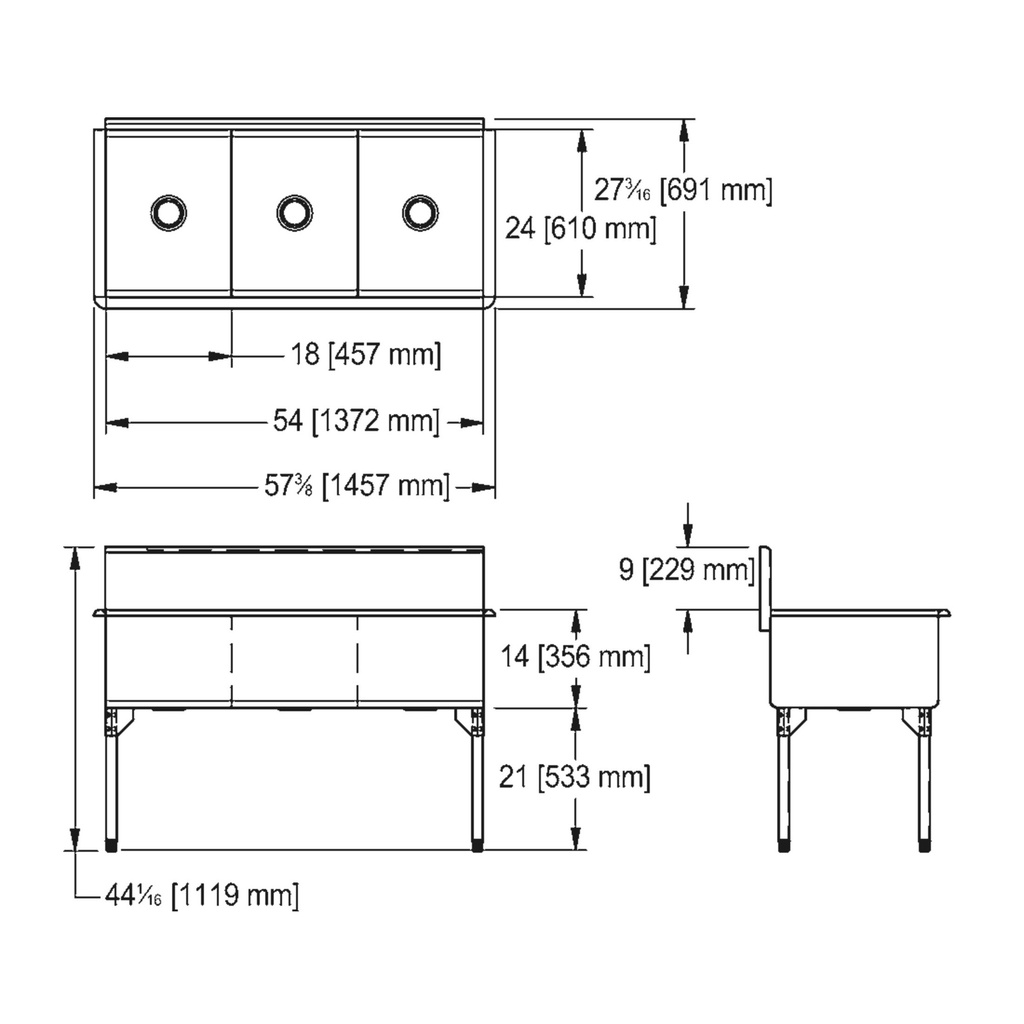

Certified to ASME A112.19.3-2008 / CSA B45.4-08. Centre waste location. Includes 3 1/2" (89 mm) crumb cup strainer with 1 1/2" (DN38) brass tailpiece. Model Options: TL2454-1-2, 2 faucet holes, 1 1/4" diameter, 8" centreset. TL2454-1, Custom (non-returnable). 27 3/16 x 57 3/8" Overall. 24 x 18 x 14" Bowl. (FB x LR x D). 691 x 1524 mm Overall. 610 x 457 x 356 mm Bowl. (FB x LR x D).
Product Information
Features
Bowl construction Radius coved front and back
Drainboard Optional: CL-DB
Waste assembly Included
Waste fitting Crumb cup waste assembly
Product Dimensions
Overall front to back 27.205 "
Overall left to right 57.362 "
Overall height 44.055 "
Floor to rim height 35.039 "
Bowl dimension front to back 24.016 "
Bowl dimension left to right 17.992 "
Bowl depth 14.016 "
Installation
Installation type On legs
Product identification
Model TL2454-1
Brand FRANKE
Product category Scullery sinks
Scullery sink type Classic series
Product specifications
Gauge 16
Tailpiece diameter (in) 1 1/2" (38mm)
Certification cUPC
Type of material Type 304
Material code CNS 18/10
Surface finish #4 Satin
Number of bowls 3
Splash location Back
Faucet ledge position Yes
Number of faucet holes Specify when ordering
Waste location Center
Waste size 3 1/2" (89mm)
