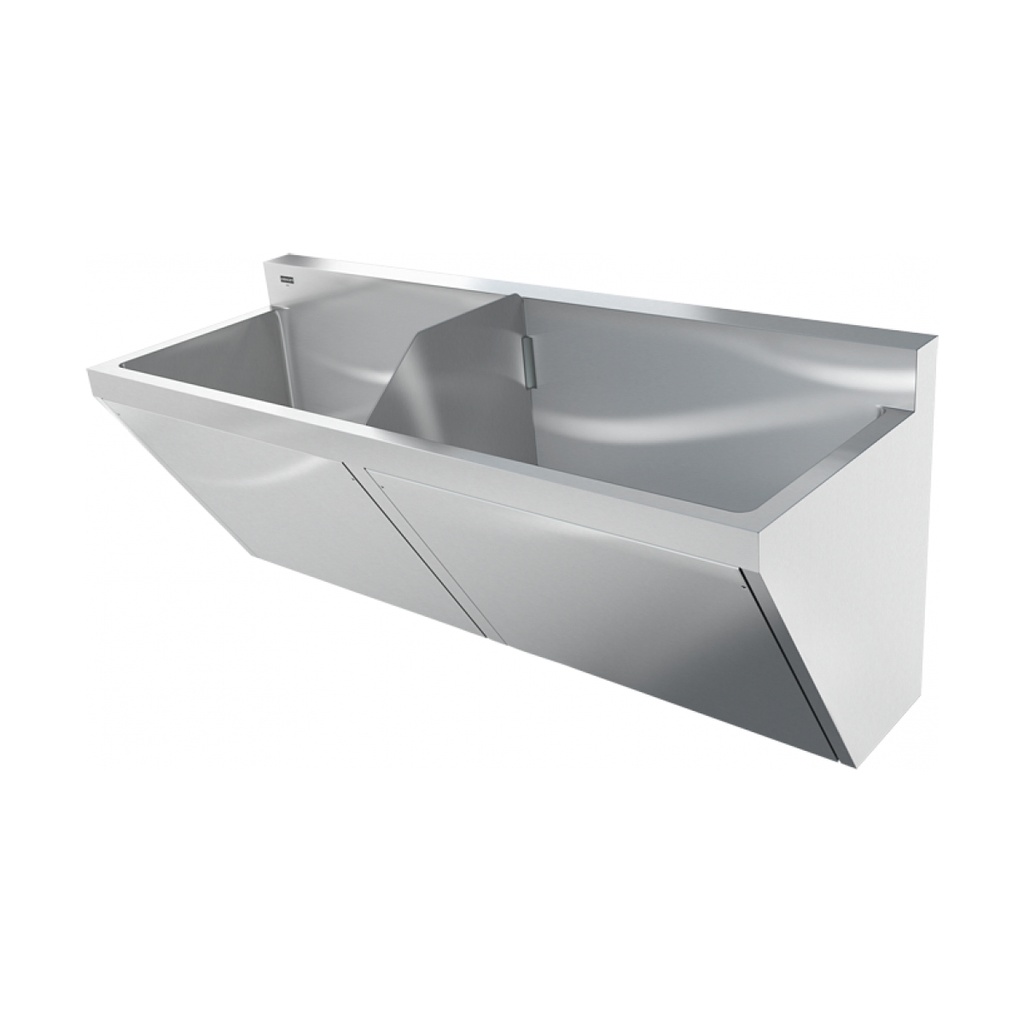

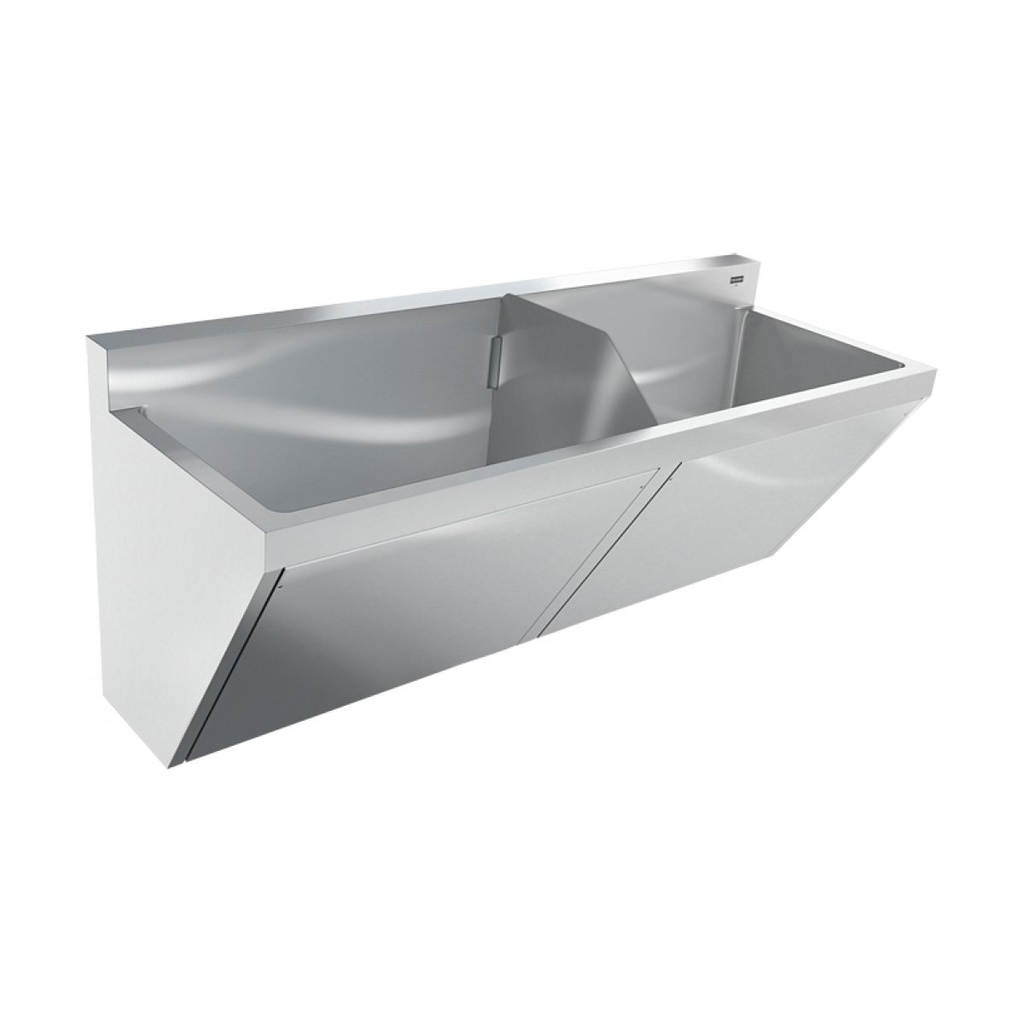

Franke SSU2-00-2 Premium Scrub Double Sink Stainless Steel
Healthcare
SSU2-00 Scrub Sink, 2 compartments, 16ga
Article Number
214.0493.240
Model Options:
SSU2-00-2. 2 faucet holes, 1 1/2" diameter, centred over each bowl.
SSU2-10, AC powered hands-free faucets, Franke Aquarius AT03-043AC high polish finish (2 pieces) . MIX-LF, thermostatic mixing valves (2 pieces). 23 x 60" Overall. 17 1/2 x 57 x 12" Bowl. (FB x LR x D). 584 x 1524 mm Overall. 445 x 1448 x 305 mm Bowl. (FB x LR x D).
Double compartment surgical scrub station. 16 gauge (1.5 mm), type 304 (CNS 18/10) stainless steel. Polished #4 satin finish. Radius coved bowl corners. Franke hygienic waste with integral talipiece. (No separate waste fitting required)
Access panel for service and maintenance. Removable divider. Please specify hole drilling requirement when ordering. Supplied with wall hanger brackets. Certified to ASME A112.19.3-2008 / CSA B45.4-08. Faucets not included.
Product Information
Features
Waste assembly Integral
Waste fitting Welded

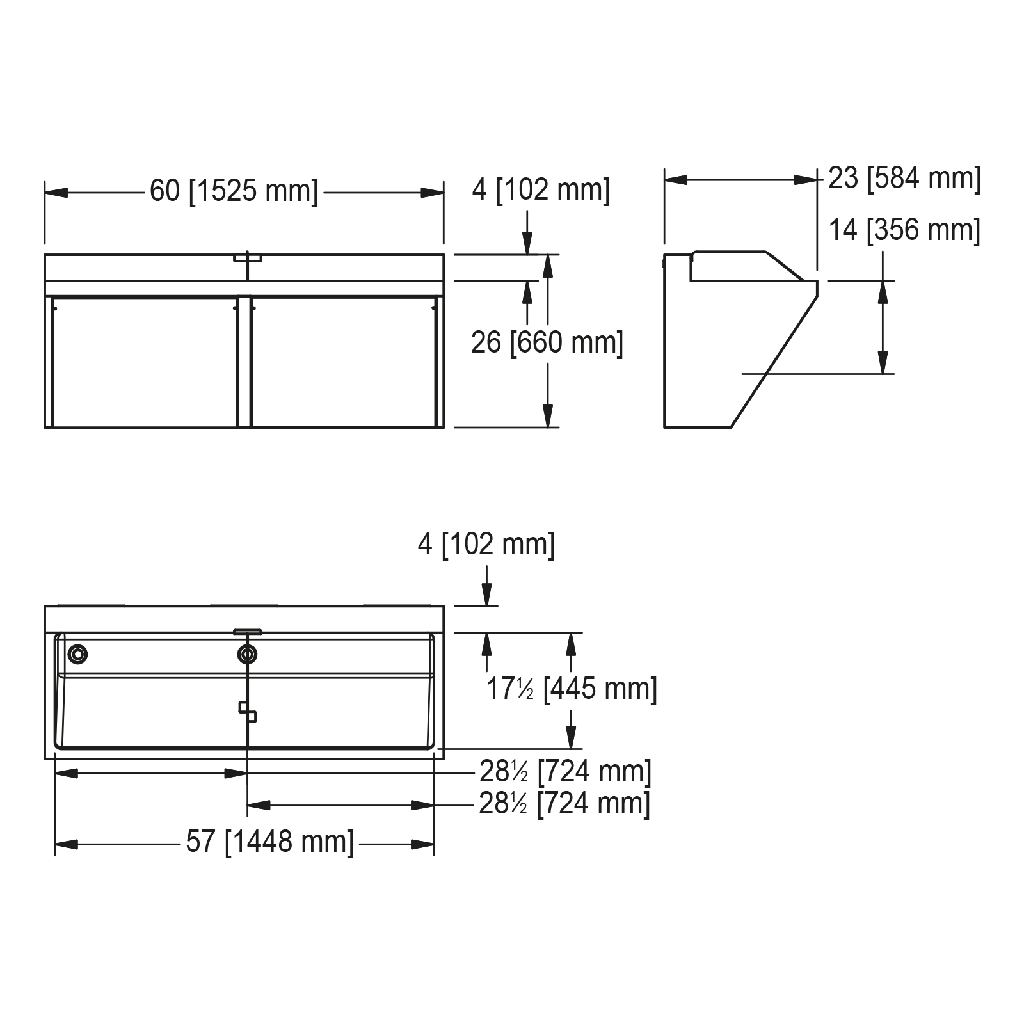

Product Dimensions
Overall front to back 22.992 "
Overall left to right 60.039 "
Overall height 25.984 "
Bowl dimension front to back 17.52 "
Bowl dimension left to right 57.008 "
Bowl depth 14.016 "
Installation
Installation type Wallmounted
Installation system Wall hanger bracket
Product identification
Model SSU2-00
Brand FRANKE
Product category Healthcare
Healthcare category Surgical scrub sinks
Product specifications
Gauge 16
Waste location Left rear
Waste size 1 1/2" (38mm)
Type of material Type 304
Certification cUPC
Material code CNS 18/10
Surface finish #4 Satin
Number of bowls 2
Splash location Back
Faucet ledge position Yes
Number of faucet holes Specify when ordering
Tailpiece diameter (in) 1 1/2" (38mm)
