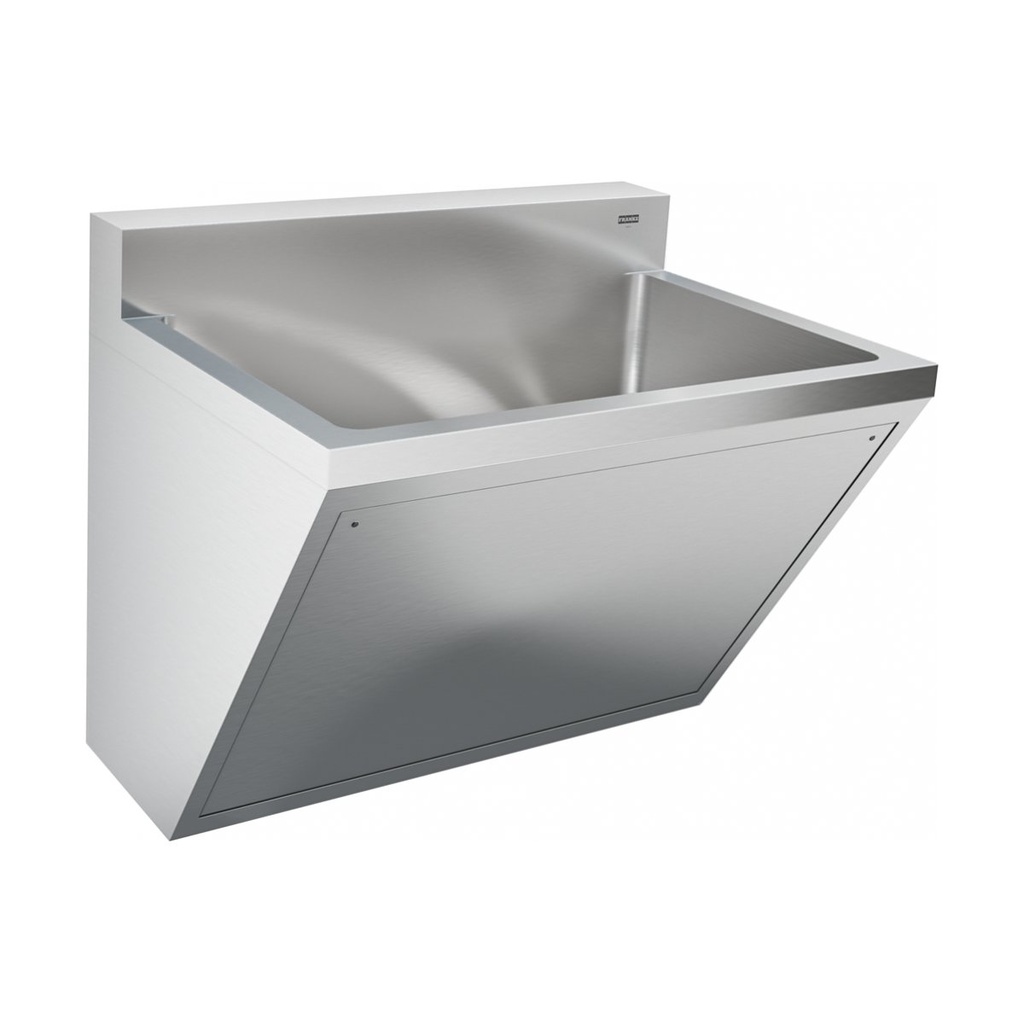

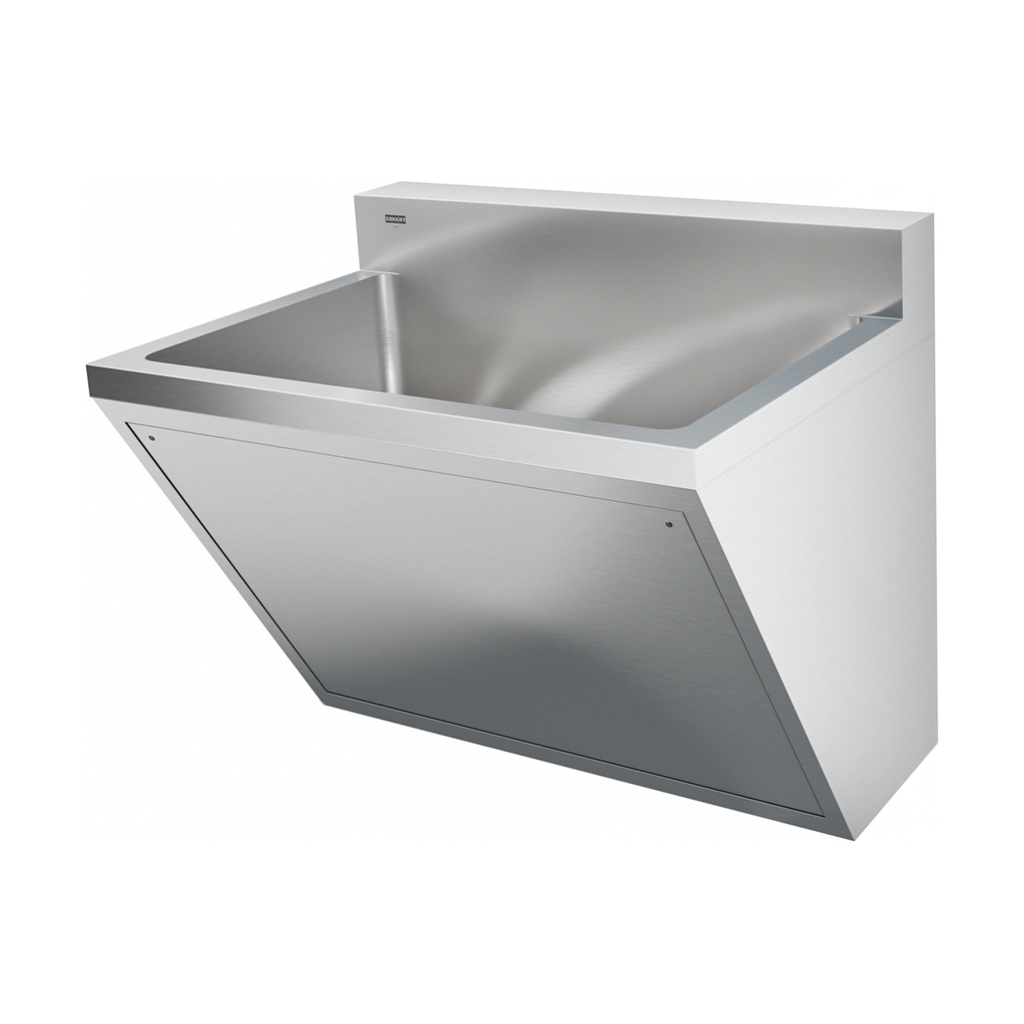

Franke SSU1-00-1 Scrub Single Sink Stainless Steel
Healthcare
SSU1-00 Scrub Sink, 1 compartment, 16ga
Article Number
214.0493.236
Single compartment surgical scrub station. 16 gauge (1.5 mm), type 304 (CNS 18/10) stainless steel. Polished #4 satin finish. Radius coved bowl corners. Franke hygienic waste with integral talipiece. (No separate waste fitting required) Access panel for service and maintenance. Supplied with wall hanger brackets.
Certified to ASME A112.19.3-2008 / CSA B45.4-08. Faucet not included. Please specify hole drilling requirement when ordering. Model Options: SSU1-00-1, 1 faucet hole, 1 1/2" diameter, centred over bowl. SSU1-10 , AC powered hands-free faucet, Franke Aquarius AT03-043AC high polish finish, MIX-LF, thermostatic mixing valve. 23 x 30" Overall. 17 1/2 x 27 x 12" Bowl. (FB x LR x D). 584 x 762 mm Overall. 445 x 686 x 305 mm Bowl. (FB x LR x D).
Product Information
Features
Waste assembly Integral
Waste fitting Welded

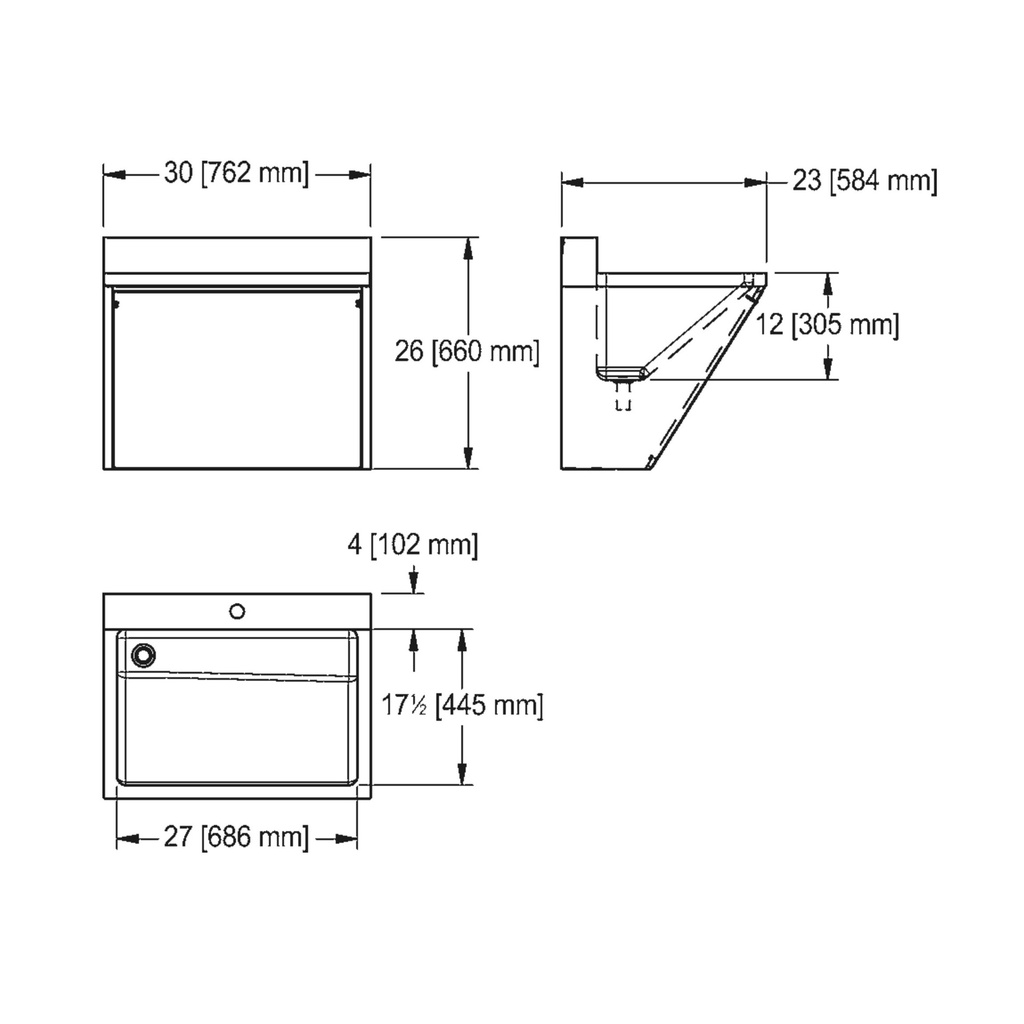

Product Dimensions
Overall front to back 22.992 "
Overall left to right 30 "
Overall height 25.984 "
Bowl dimension front to back 17.52 "
Bowl dimension left to right 27.008 "
Bowl depth 12.008 "
Installation
Installation type Wallmounted
Installation system Wall hanger bracket
Product identification
Model SSU1-00
Brand FRANKE
Product category Healthcare
Healthcare category Surgical scrub sinks
Product specifications
Gauge 16
Waste location Left rear
Waste size 1 1/2" (38mm)
Type of material Type 304
Certification cUPC
Material code CNS 18/10
Surface finish #4 Satin
Number of bowls 1
Splash location Back
Faucet ledge position Yes
Number of faucet holes Specify when ordering
Tailpiece diameter (in) 1 1/2" (38mm)
