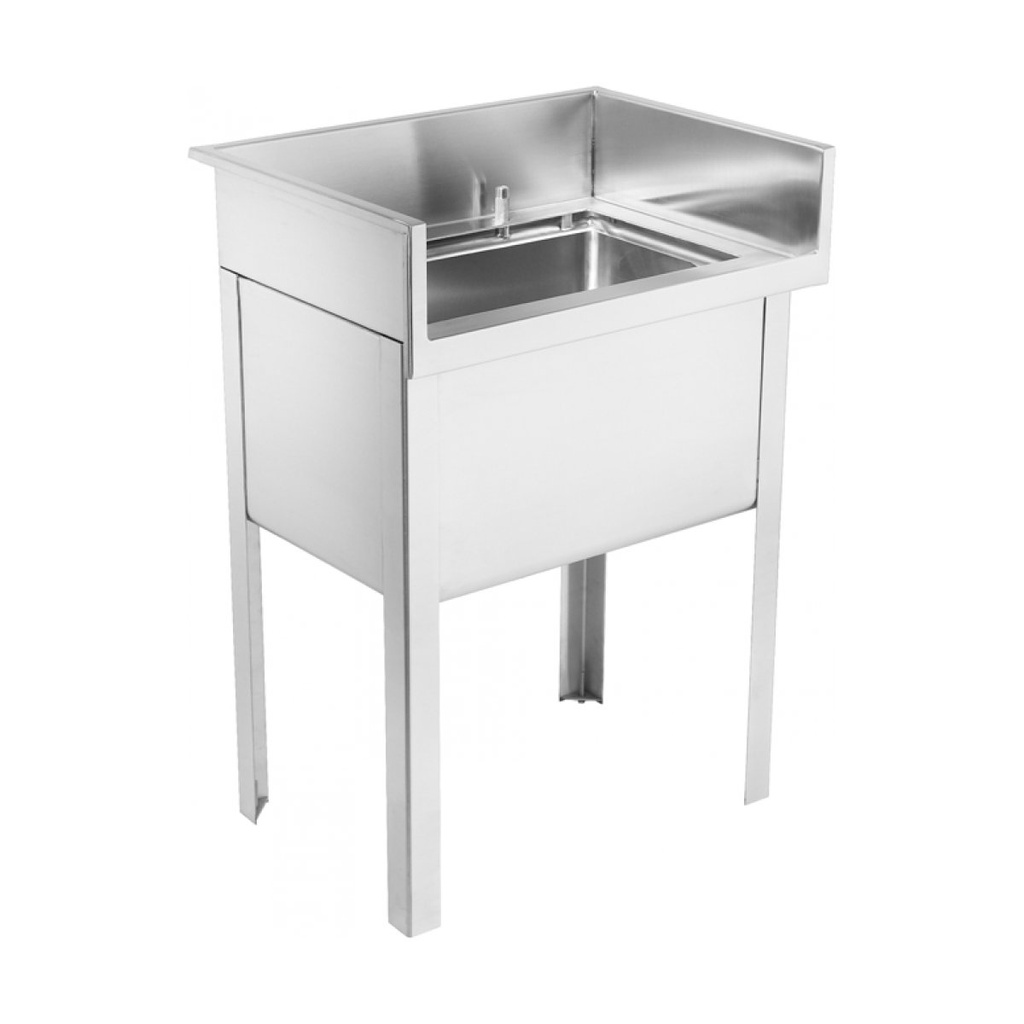

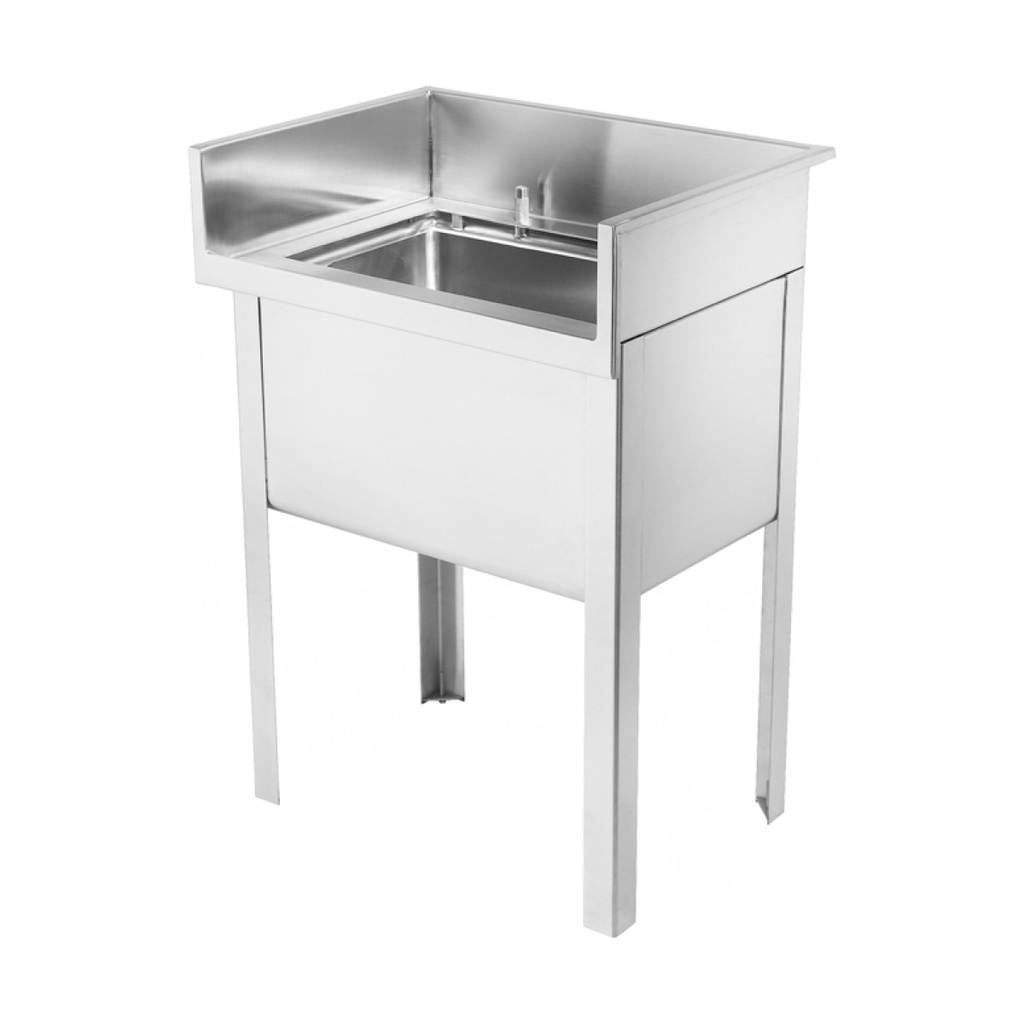

Franke SSS1827 Utility Sink Single Bowl Stainless Steel
Utility sinks
SSS1827-Sewage Sampling
Article Number
253.0221.340
Single compartment sewage sampling sink without drainboard. 14 gauge (2.0 mm), type 304 (CNS 18/10) stainless steel. Polished #4 satin finish. Radius coved bowl corners. Anti-splash rim. Stainless steel 3/4" (19 mm) O.D. flushing tube with 1/2" (12.7 mm) NPS connection. 3" x 3" (76 mm x 76 mm) threaded waste outlet.
Certified to ASME A112.19.3-2008 / CSA B45.4-08. Please allow 4 weeks for delivery. 21 x 29" Overall. 18 x 27 x 15" Bowl. (FB x LR x D). 533 x 737 mm Overall. 457 x 686 x 381 mm Bowl. (FB x LR x D).
Product Information
Features
Bowl construction Radius coved corners
Drainboard None
Waste assembly Integral
Waste fitting Threaded waste outlet
Front edge style Anti splash rim

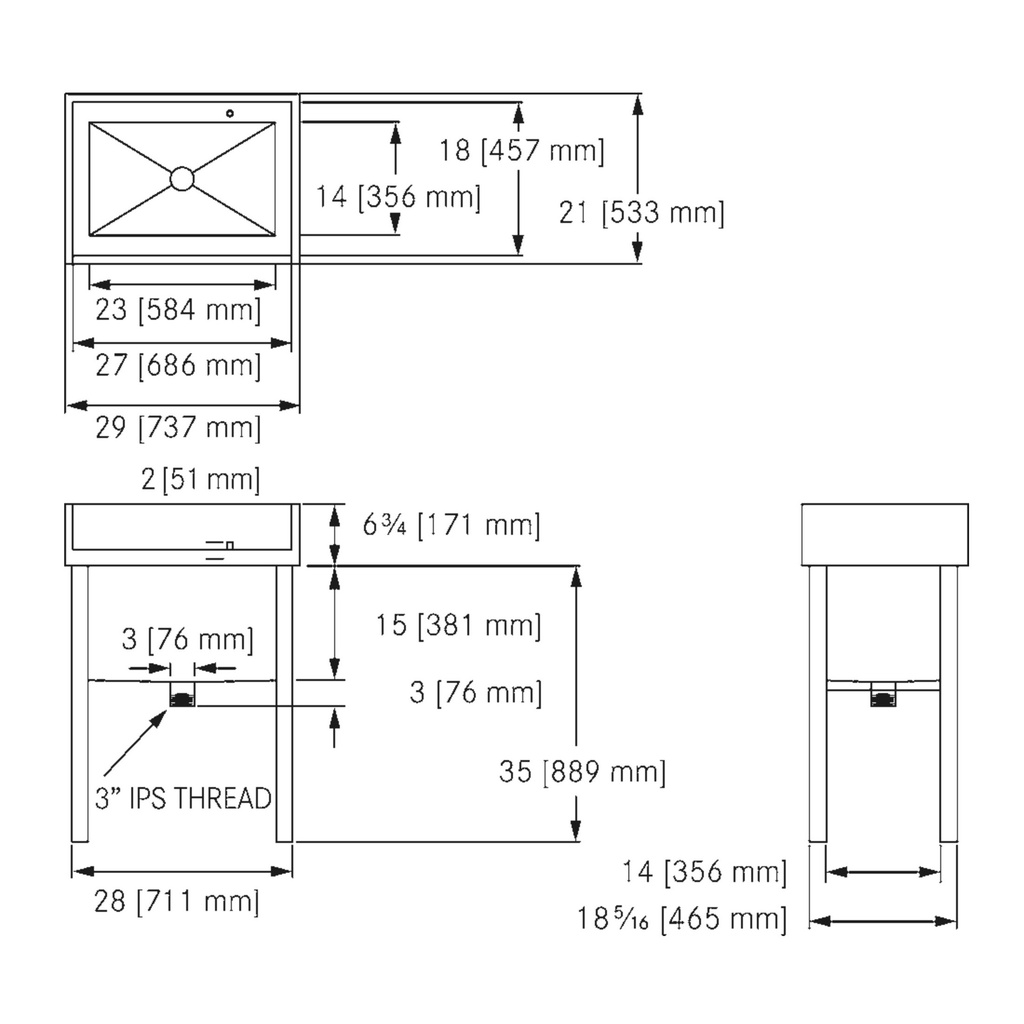

Product Dimensions
Overall front to back 20.984 "
Overall left to right 29.016 "
Overall height 41.732 "
Floor to rim height 35 "
Bowl dimension front to back 14.016 "
Bowl dimension left to right 22.992 "
Bowl depth 15 "
Installation
Installation type Floor mount
Product identification
Model SSS1827
Brand FRANKE
Product category Utility sinks
Utility sink type Sewage sampling
Product specifications
Gauge 14
Tailpiece diameter (in) IPS thread
Certification cUPC
Type of material Type 304
Material code CNS 18/10
Surface finish #4 Satin
Number of bowls 1
Splash location Back, left, and right
Faucet ledge position No
Waste location Center
Waste size 3" (76mm)
