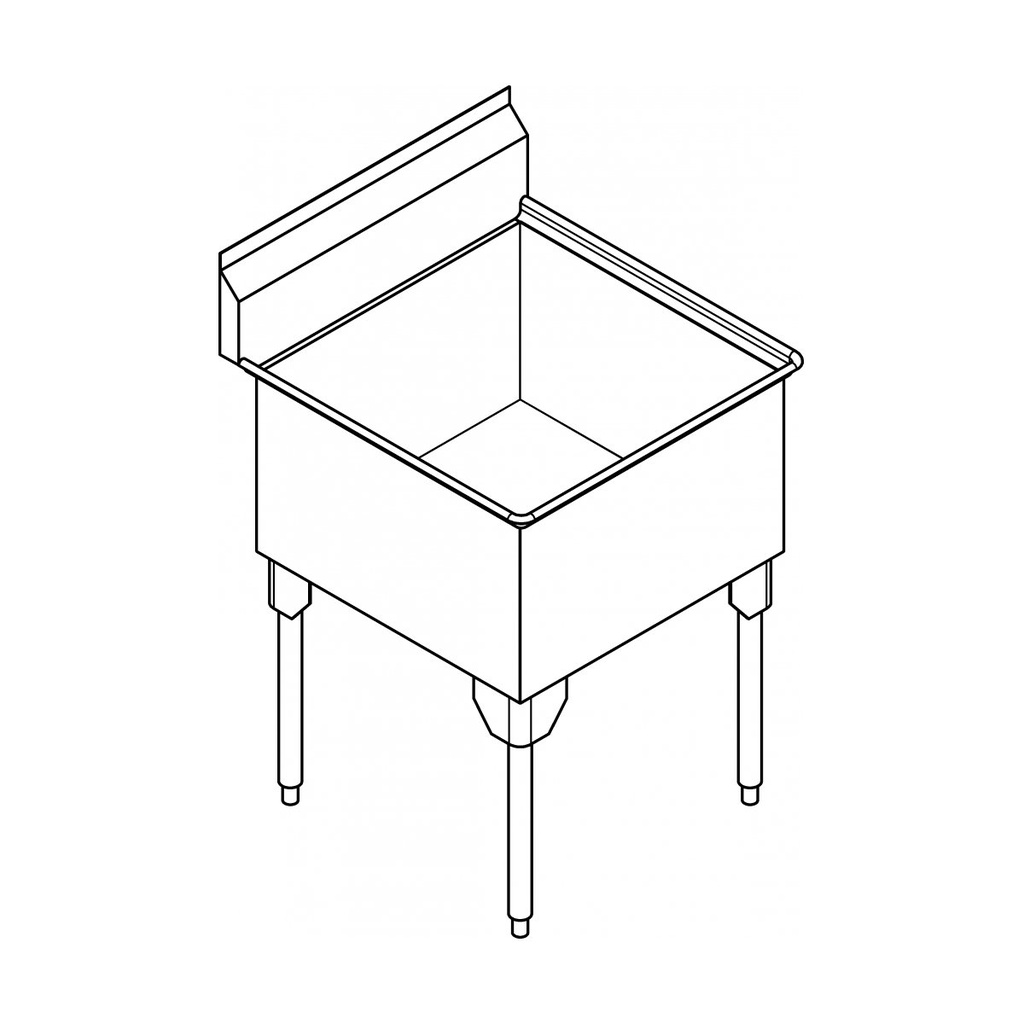

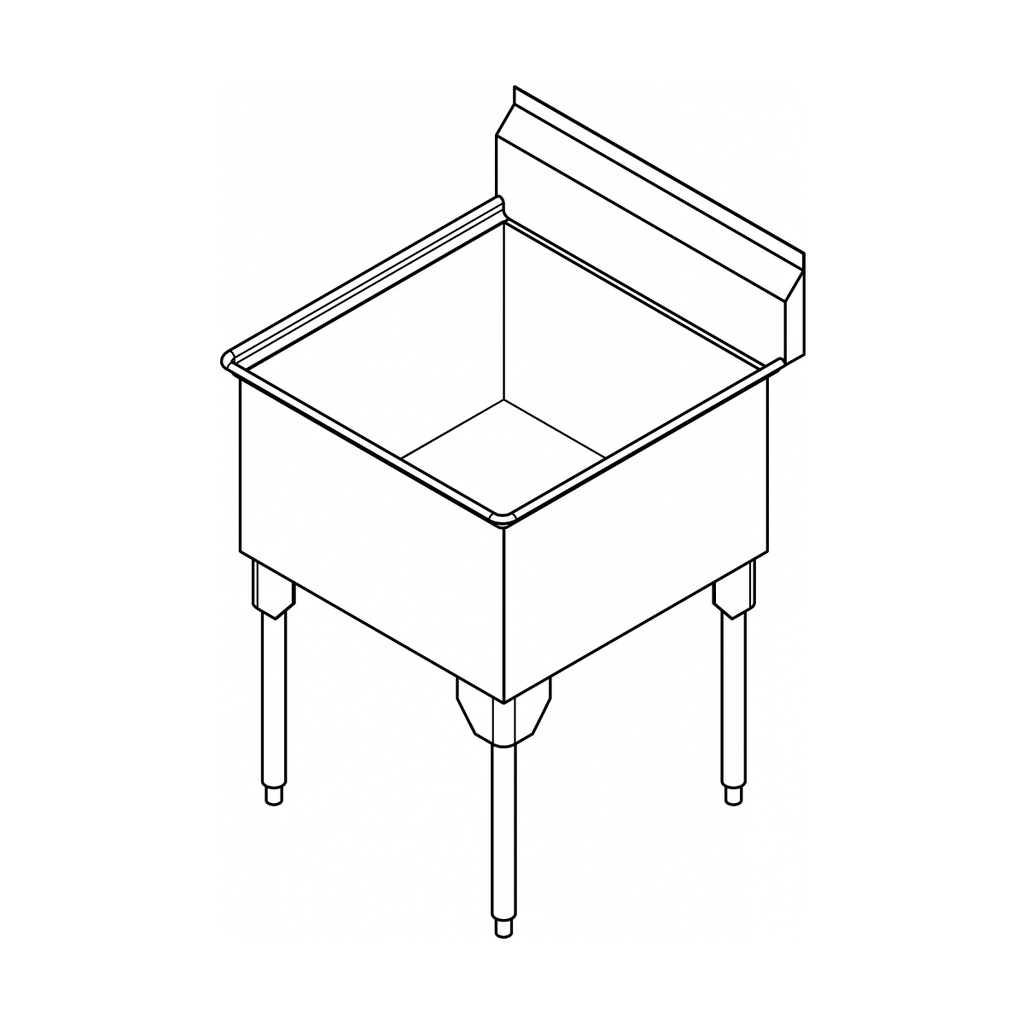

Franke SSL2424-1 Service Series 14 Gauge Single Sink
Scullery sinks
SSL2424-1 Service 14 ga, single
Article Number
253.0221.452
Model Options:
SL2424-1-2, 2 faucet holes, 1 1/4" diameter, 8" centerset.
SSL2424-1, Custom (non-returnable). 30 1/2 x 28 1/4" Overall. 24 x 24 x 14" Bowl. (FB x LR x D). 775 x 718 mm Overall. 610 x 610 x 356 mm Bowl. (FB x LR x D).
Single compartment "Service Series" scullery sink. Service Series sculleries are purpose-built, free-standing utility sinks. Heavy 14 gauge (2.0 mm), type 304 (CNS 18/10) stainless steel. Polished to a #4 satin finish. Compartment has radius corners on front and back of bowl. Finished with a rolled rim. Stainless steel tubular legs with adjustable feet for leveling. Waste fitting included.
Certified to ASME A112.19.3-2008 / CSA B45.4-08. Please allow 4 weeks for delivery. This series of scullery sinks are built to order and are non-returnable. Centre waste location. Includes 3 1/2" (89 mm) crumb cup strainer with 1 1/2" (DN38) brass tailpiece.
Product Information
Features
Bowl construction Radius coved front and back
Waste assembly Included
Waste fitting Crumb cup waste assembly

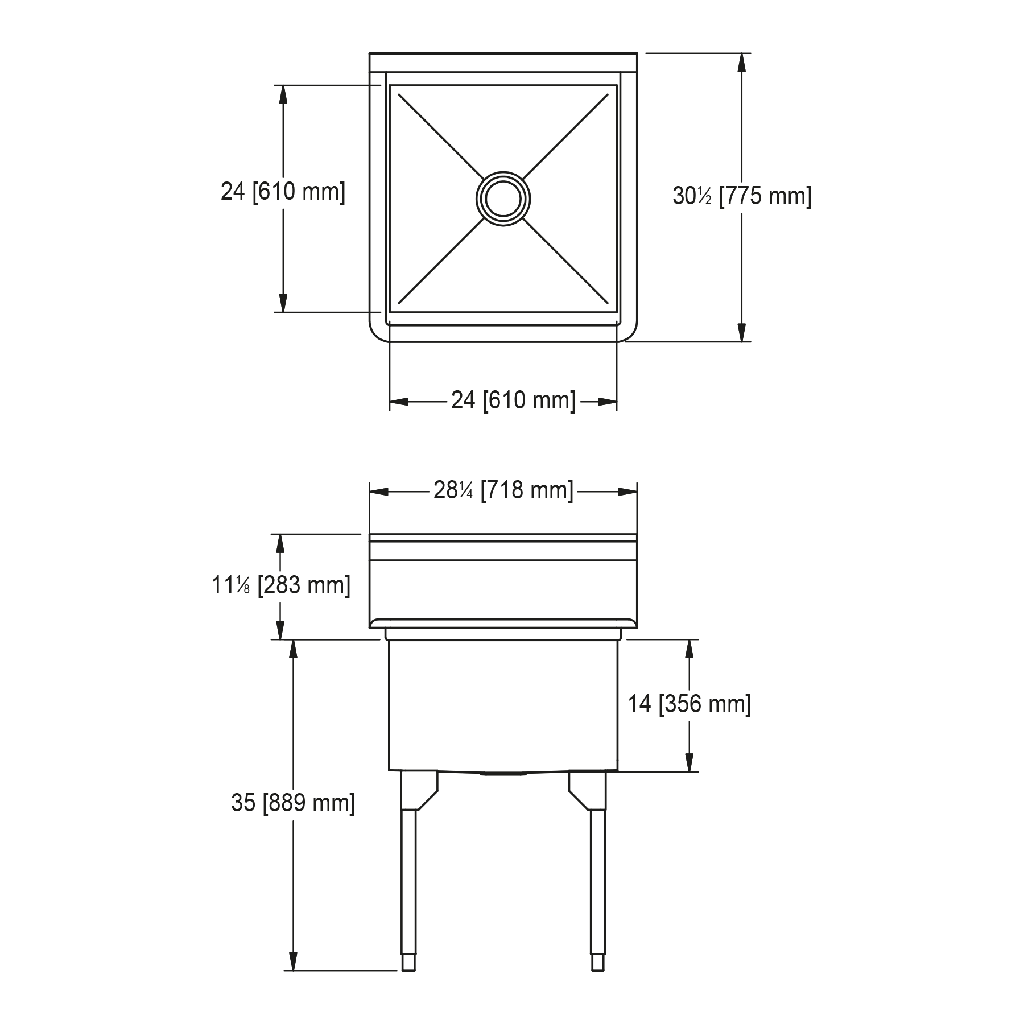

Product Dimensions
Overall front to back 30.512 "
Overall left to right 28.268 "
Overall height 44.055 "
Floor to rim height 35.039 "
Bowl dimension front to back 24.016 "
Bowl dimension left to right 24.016 "
Bowl depth 14.016 "
Installation
Installation type On legs
Product identification
Model SSL2424-1
Brand FRANKE
Product category Scullery sinks
Scullery sink type Service series
Product specifications
Gauge 14
Tailpiece diameter (in) 1 1/2" (38mm)
Certification cUPC
Type of material Type 304
Material code CNS 18/10
Surface finish #4 Satin
Number of bowls 1
Splash location Back
Faucet ledge position Yes
Number of faucet holes Specify when ordering
Waste location Center
Waste size 3 1/2" (89mm)
