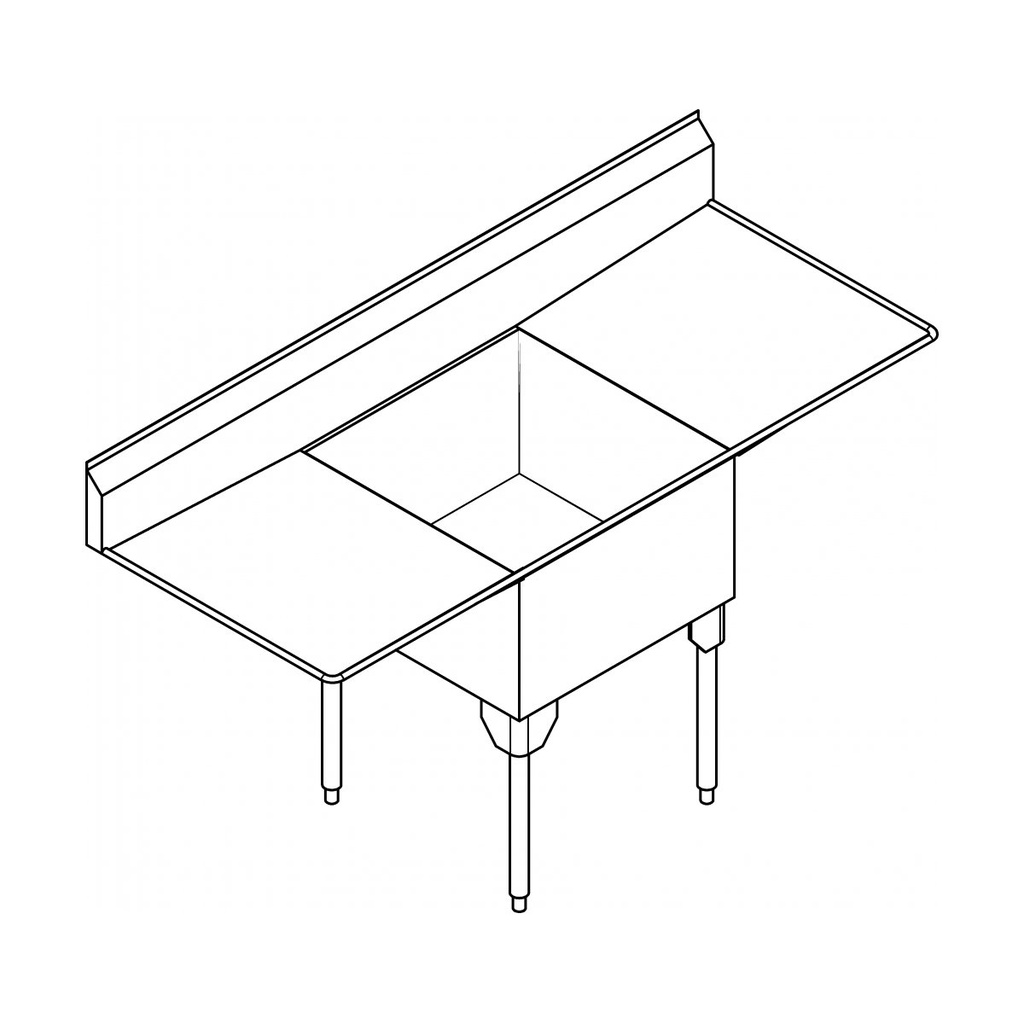

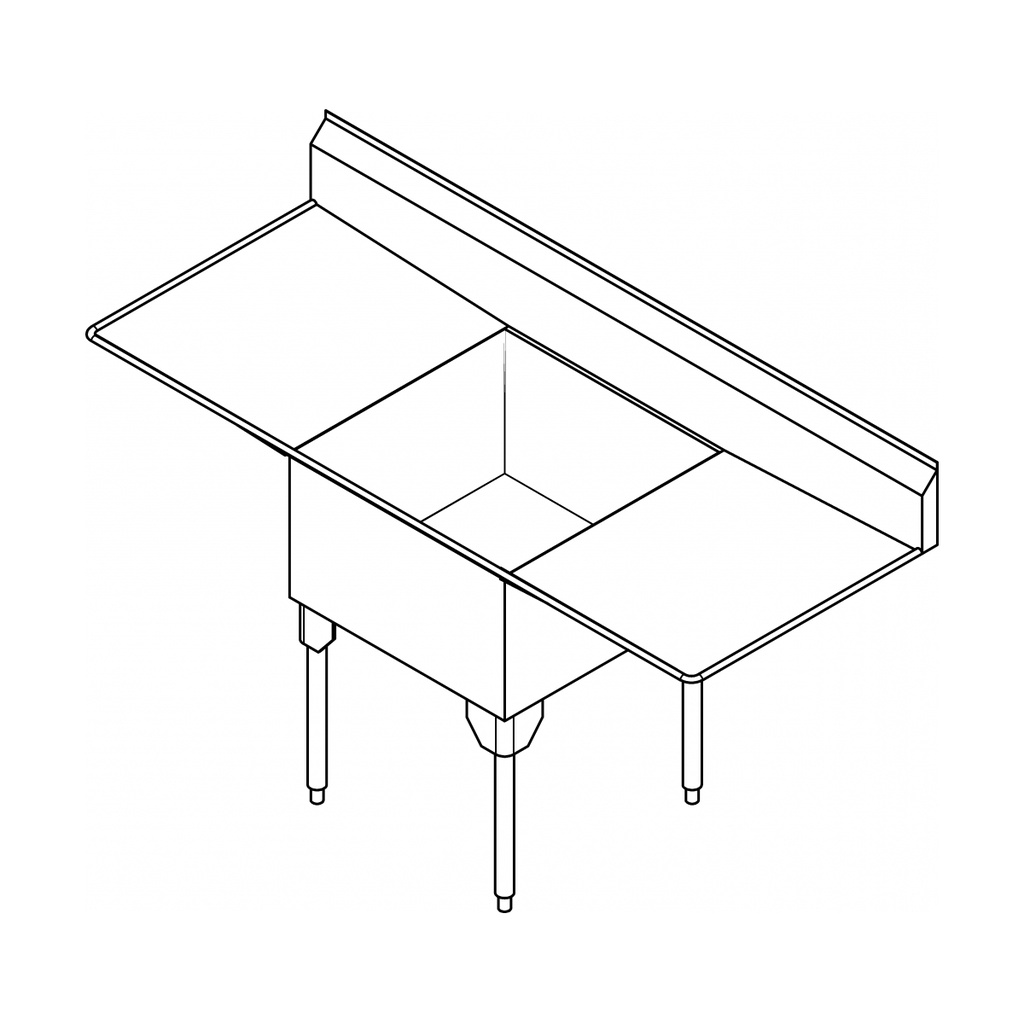

Franke SSL2418LR-1 Service Series 14 Gauge Single Sink
Scullery sinks
SSL2418LR-1 Service 14 ga, double dboard
Article Number
253.0221.450
Model Options:
SSL2418LR-1-2, 2 faucet holes, 1 1/4" diameter, 8" centerset.
SSL2418LR-1, Custom (non-returnable). 30 1/2 x 58 1/4" Overall. 24 x 18 x 14" Bowl. (FB x LR x D). 775 x 1480 mm Overall. 610 x 457 x 356 mm Bowl. (FB x LR x D).
Single compartment "Service Series" scullery sink. These sculleries are purpose-built, free-standing utility sinks. Heavy 14 gauge (2.0 mm), type 304 (CNS 18/10) stainless steel. Polished to a #4 satin finish. Compartment has radius corners on front and back of bowl. Finished with a rolled rim. Left and right drainboards sloped toward bowl. Stainless steel tubular legs with adjustable feet for leveling. Waste fitting included.
Certified to ASME A112.19.3-2008 / CSA B45.4-08. Please allow 4 weeks for delivery. This series of scullery sinks are built to order and are non-returnable. With left and right drainboard. Centre waste location. Includes 3 1/2" (89 mm) crumb cup strainer with 1 1/2" (DN38) brass tailpiece.
Product Information
Features
Bowl construction Radius coved front and back
Drainboard Left and right
Waste assembly Included
Waste fitting Crumb cup waste assembly

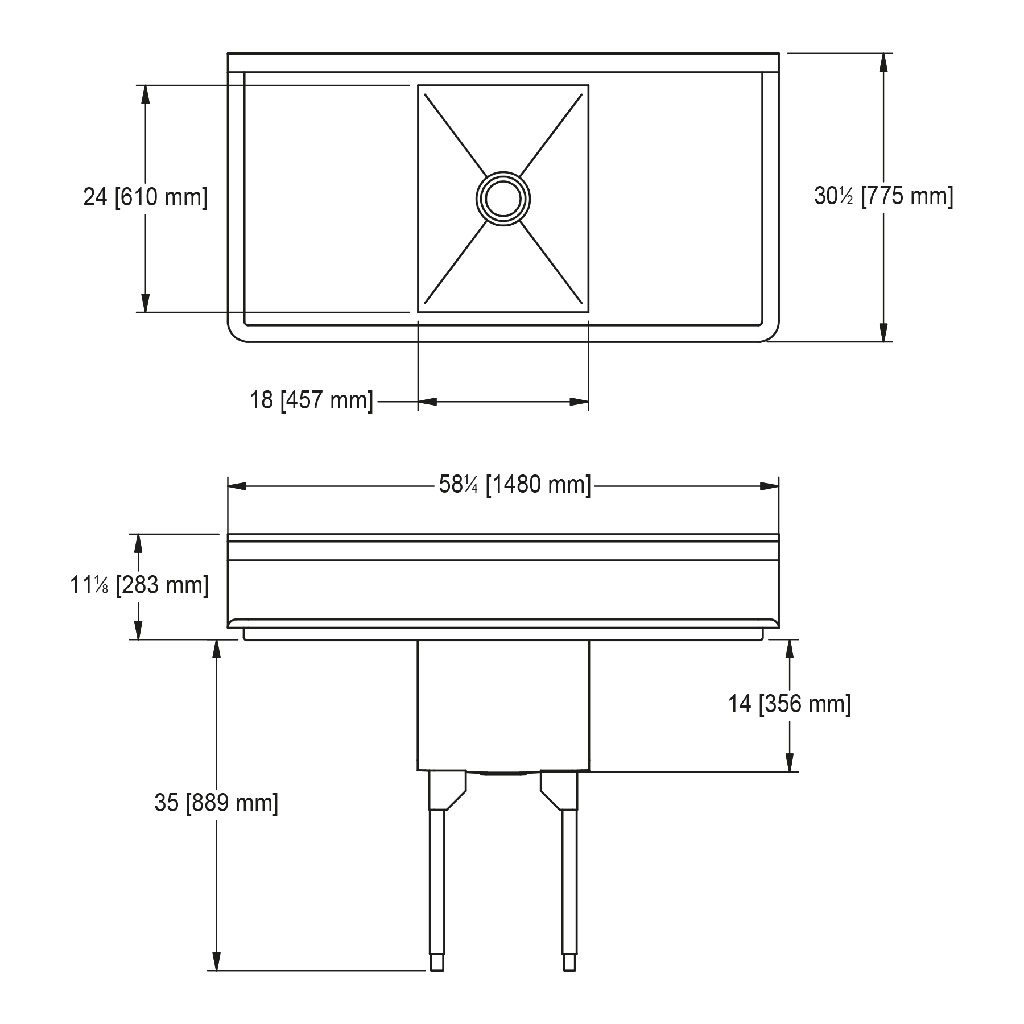

Product Dimensions
Overall front to back 30.512 "
Overall left to right 58.268 "
Overall height 44.055 "
Floor to rim height 35.039 "
Bowl dimension front to back 24.016 "
Bowl dimension left to right 17.992 "
Bowl depth 14.016 "
Installation
Installation type On legs
Product identification
Model SSL2418LR-1
Brand FRANKE
Product category Scullery sinks
Scullery sink type Service series
Product specifications
Gauge 14
Tailpiece diameter (in) 1 1/2" (38mm)
Certification cUPC
Type of material Type 304
Material code CNS 18/10
Surface finish #4 Satin
Number of bowls 1
Splash location Back
Faucet ledge position Yes
Number of faucet holes Specify when ordering
Waste location Center
Waste size 3 1/2" (89mm)
