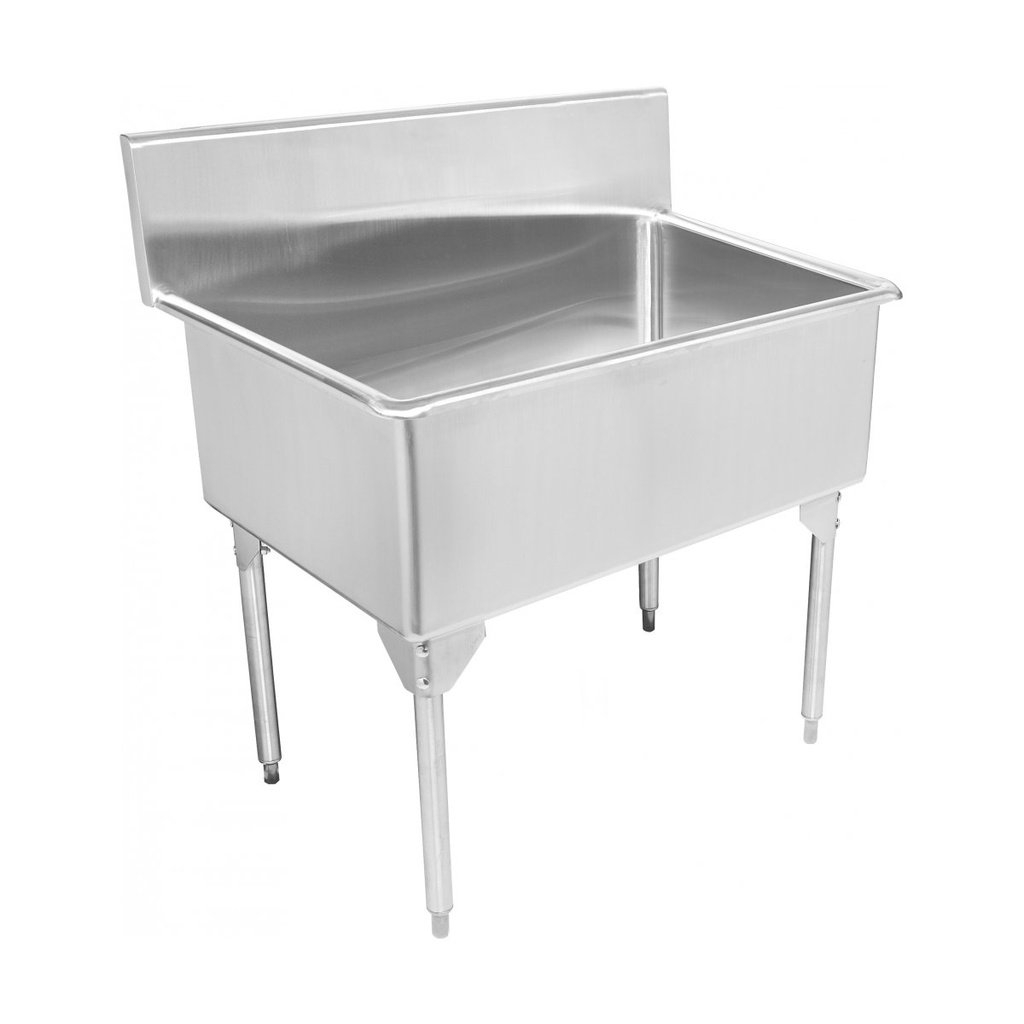

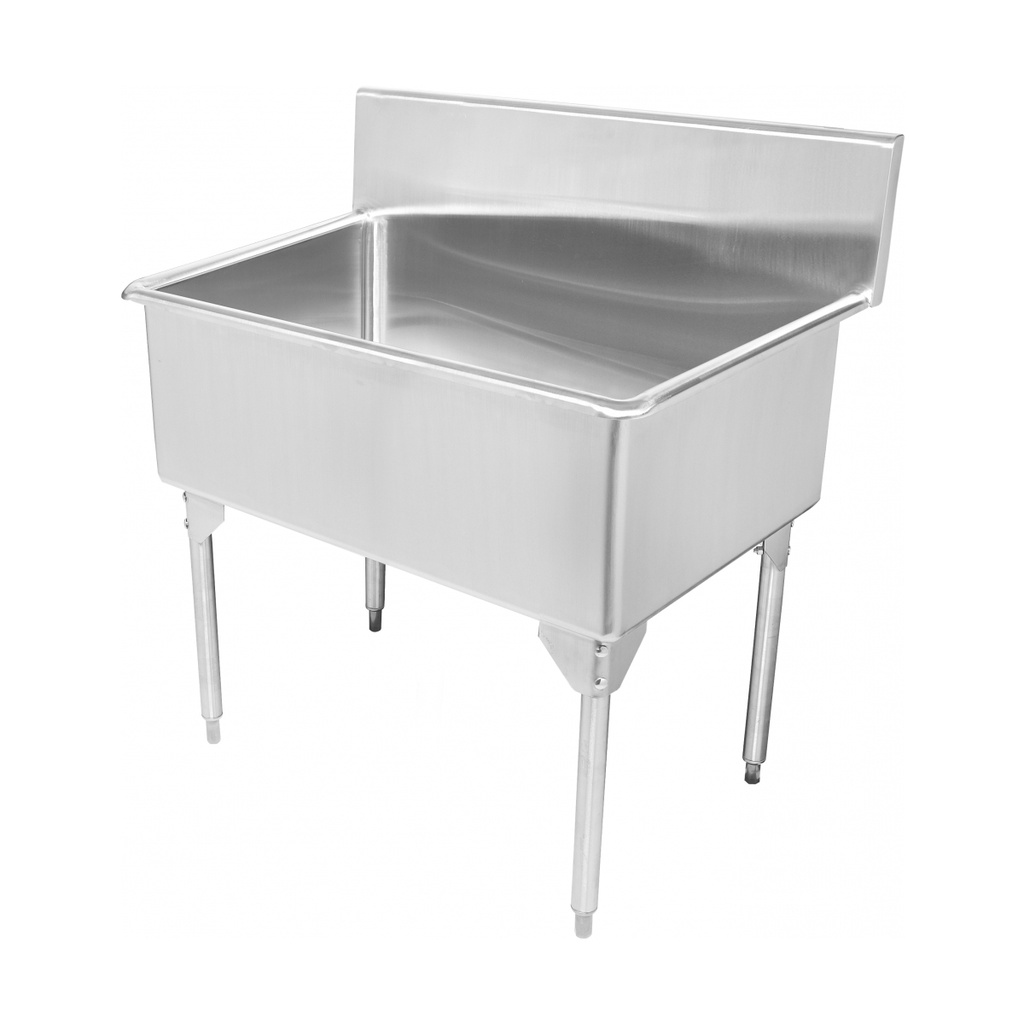

Franke SL2448-316-5 Type 316 Single Compartment Scullery Sink
Type 316 sinks
SL2448-316-5 Type 316 Scullery,16 ga
Article Number
253.0221.350
Model Options:
SL2448-316-5-2, 2 faucet holes, 1 1/4" diameter, 8" centreset.
SL2448-316-5, Custom (faucet hole drillings to specified at time of order). 27 3/16 x 51 3/8" Overall. 24 x 48 x 14" Bowl. (FB x LR x D). 691 x 1305 mm Overall. 610 x 1219 x 356 mm Bowl. (FB x LR x D).
Single compartment scullery sink. 16 gauge (1.5 mm), type 316 (EN1.4401 17/12/2) stainless steel. Polished to a #4 satin finish. Sink compartment sloped to drain with radius coved corners on front and back only. Rolled rim. Stainless Steel tubular legs with adjustable feet. Type 316 (EN1.4401 17/12/2) waste fitting included.
Certified to ASME A112.19.3-2008 / CSA B45.4-08. This series of scullery sinks are built to order and are non-returnable. Right rear waste location. Includes 3 1/2" (89 mm) type 316 stainless steel crumb cup strainer and 1 1/2" (DN38) tailpiece.
Product Information
Features
Waste assembly Included
Waste fitting Duplex, standpipe and guard
Splash location Back
Product Dimensions
Overall front to back 27.205 "
Overall left to right 51.378 "
Overall height 44.055 "
Floor to rim height 35.039 "
Bowl dimension front to back 24.016 "
Bowl dimension left to right 47.992 "
Bowl depth 14.016 "
Installation
Installation type On legs
Product identification
Model SL2448-316-5
Brand FRANKE
Product category Type 316 sinks
Product specifications
Gauge 16
Waste size 1 1/2" (38mm)
Tailpiece diameter (in) 1 1/2" (38mm)
Certification cUPC
Type of material Type 316
Material code EN1.4401 17/12/2
Surface finish #4 Satin
Number of bowls 1
Front edge style Rolled
Rim type Rolled rim
Faucet ledge position Yes
Number of faucet holes Specify when ordering
Waste location Center
