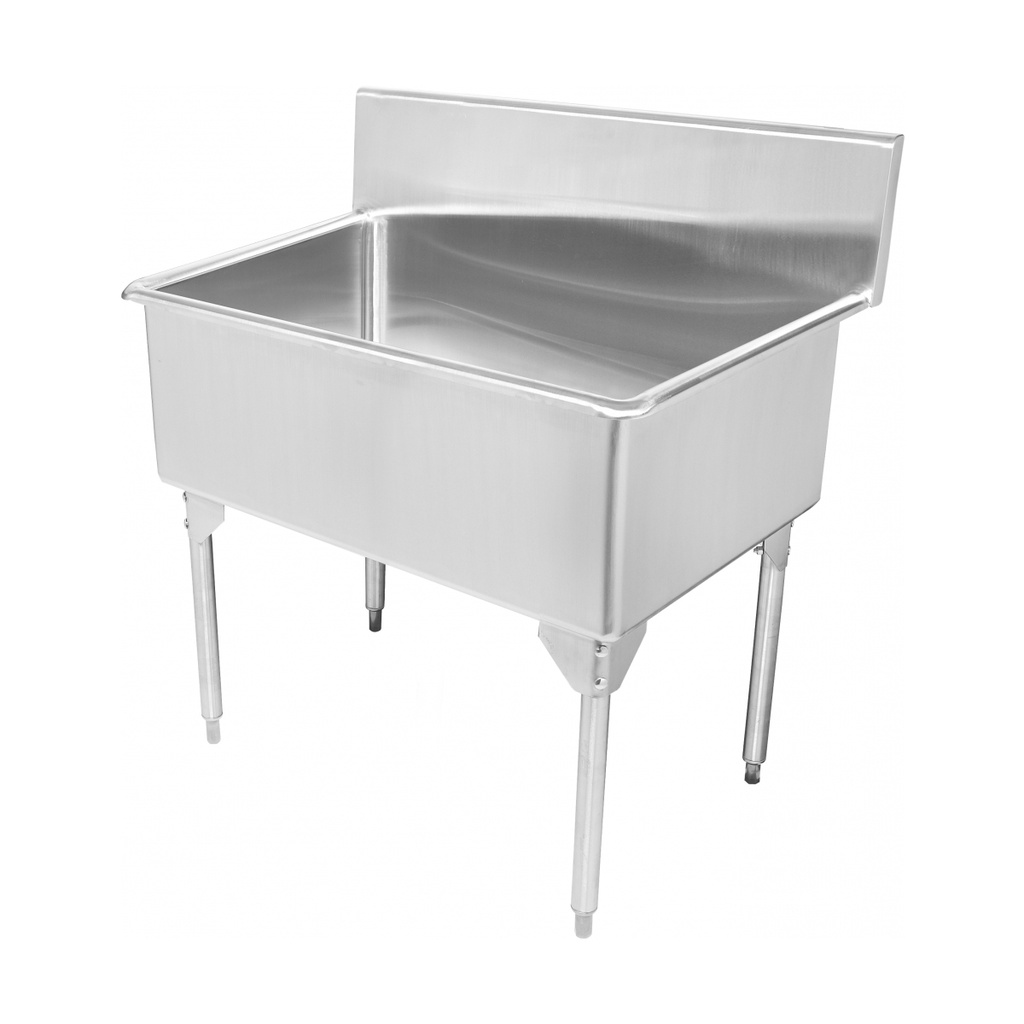

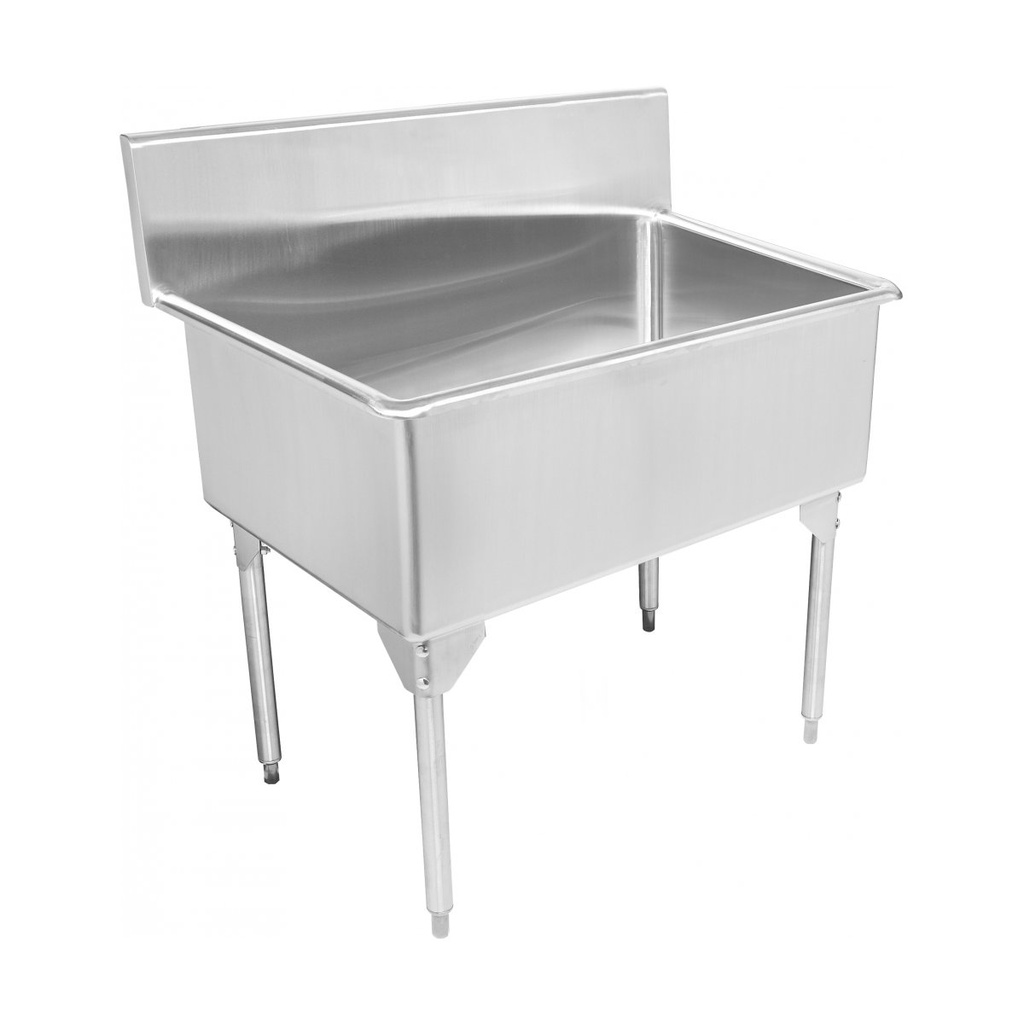

Franke SL2448-1 Classic Series 16 Gauge Single Sink
Scullery sinks
SL2448-1 Classic 16 ga, single
Article Number
253.0221.428
Model Options:
SL2448-1-2, 2 faucet holes, 1 1/4" diameter, 8" centreset, punched 4" from top of backsplash SL2448-1, Custom, non-returnable. 27 3/16 x 51 3/8" Overall. 24 x 48 x 14" Bowl. (FB x LR x D). 691 x 1305 mm Overall. 610 x 1219 x 356 mm Bowl. (FB x LR x D).
Single compartment scullery sink. 16 gauge (1.5 mm), type 304 (CNS 18/10) stainless steel. Polished to a #4 satin finish. Sink compartment sloped to drain with radius coved corners on front and back only. Rolled rim. Stainless steel tubular legs with adjustable feet.
Includes waste fitting. Certified to ASME A112.19.3-2008 / CSA B45.4-08. Centre waste location. Includes 3 1/2" (89 mm) crumb cup strainer with 1 1/2" (DN38) brass tailpiece.
Product Information
Features
Bowl construction Radius coved front and back
Drainboard Optional: CL-DB
Waste assembly Included
Waste fitting Crumb cup waste assembly
Product Dimensions
Overall front to back 27.205 "
Overall left to right 51.378 "
Overall height 44.055 "
Floor to rim height 35.039 "
Bowl dimension front to back 24.016 "
Bowl dimension left to right 47.992 "
Bowl depth 14.016 "
Installation
Installation type On legs
Product identification
Model SL2448-1
Brand FRANKE
Product category Scullery sinks
Scullery sink type Classic series
Product specifications
Gauge 16
Tailpiece diameter (in) 1 1/2" (38mm)
Certification cUPC
Type of material Type 304
Material code CNS 18/10
Surface finish #4 Satin
Number of bowls 1
Splash location Back
Faucet ledge position Yes
Number of faucet holes Specify when ordering
Waste location Center
Waste size 3 1/2" (89mm)
