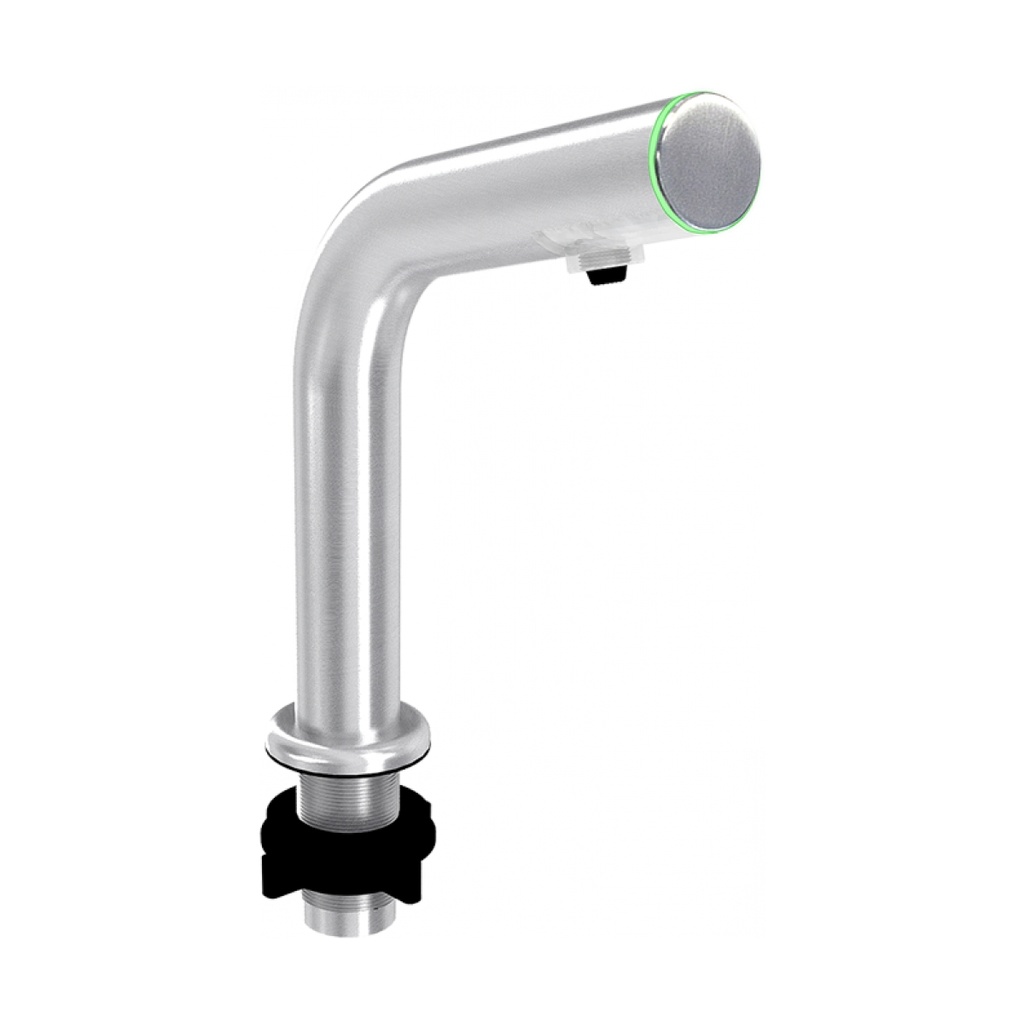

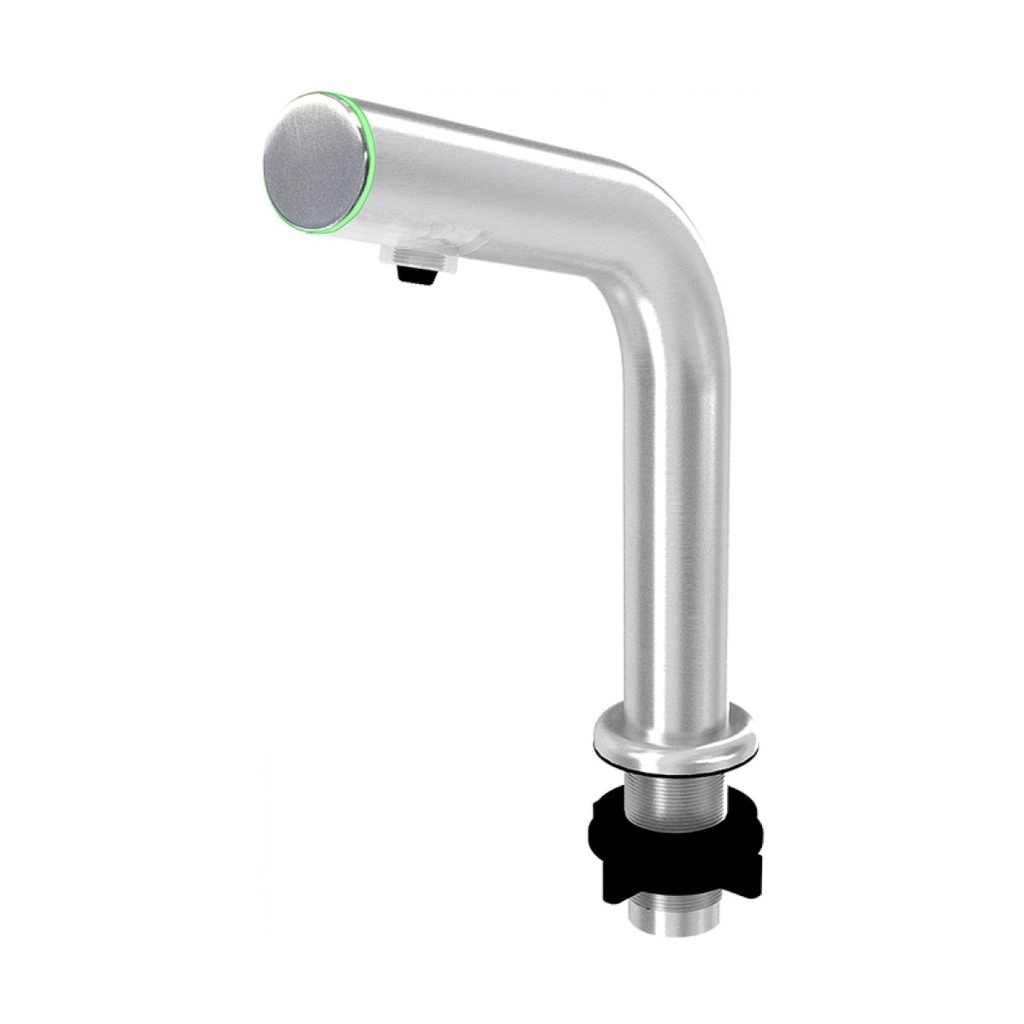

Franke SD01-003SFL Aqua-Foam Deck Mount Soap Dispenser Satin
Washroom accessories
SD01-003SFL Soap dispenser deck, satin
Article Number
201.0663.084
Aqua-foam dispensers are suitable for a wide range of environments including; hospitals, airports, highway services, food preparation facilities, supermarkets and more. Hands free operation. Spout is satin finish, T304 stainless steel. AC powered with indicator light to alert of events such as low soap tank, wrong type of soap used or motor blockage/failure.
48 hour auto-dispense cycle to prevent clogging. 1.5L (50oz) easy refill soap tank included. Sensor range 10 +/-2cm (4 +/- 3/4"). Foam dispensing volume 0.6-0.8ml (0.020-.027oz). For foam soaps with viscosity of 1-50 cP(mPa-s). 5 1/2" x 1" x 6 5/8" Overall (FB x LR x H). 140.6 x 25.4 x 167.7 mm Overall (FB x LR x H).
Product Information
Product Dimensions
Overall front to back 5.551 "
Overall left to right 1.575 "
Overall height 6.614 "
Installation
Installation type Wallmounted
Product identification
Model SD01-003SFL
Brand FRANKE
Product category Washroom accessories
Washroom accessories category Aqua-foam soap dispensers
Product specifications
Type of material Type 304
Type of soap Foam
Soap container Included
Capacity (Litres) 1.5L / 50 FL OZ
Certification cUPC
Surface finish Satin
Type of operation Hands free
Type of sensor Infrared
Power supply connection AC
