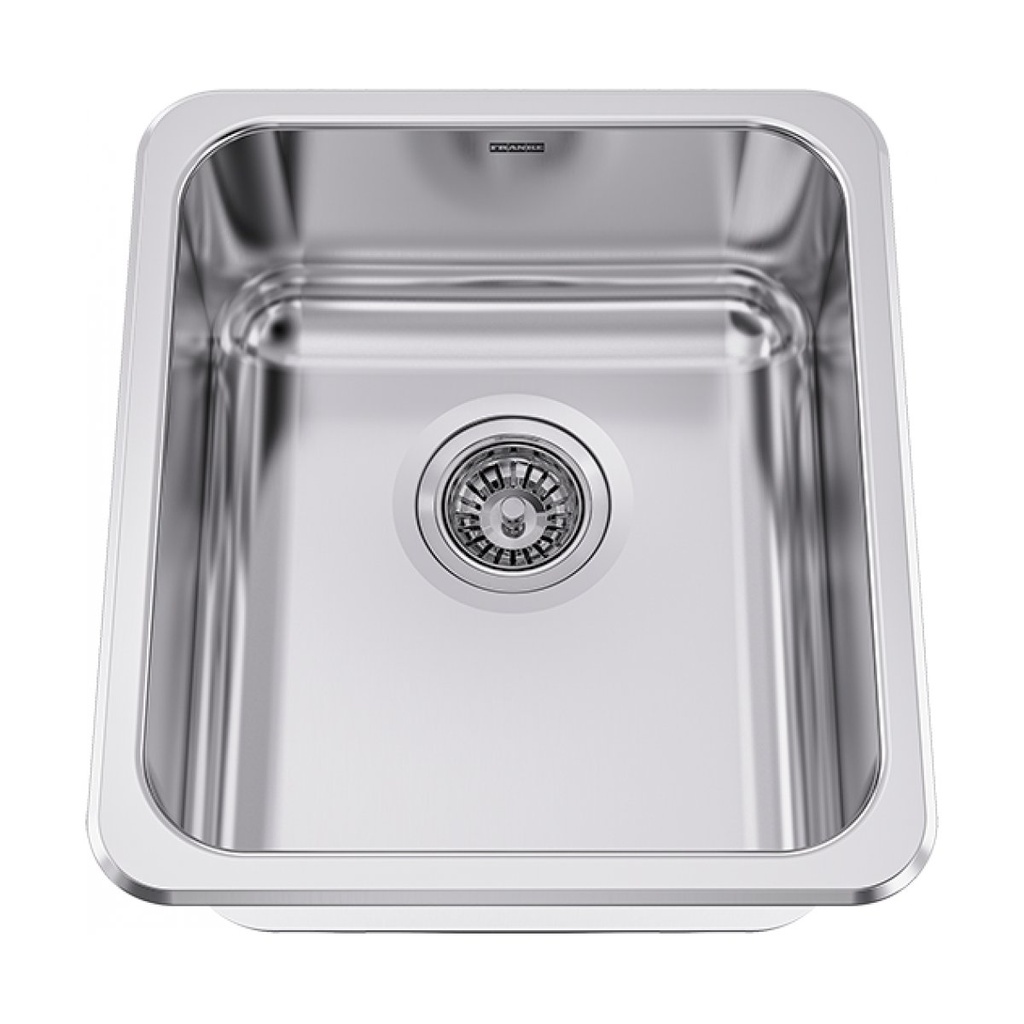

Franke S6408-1 Single Bowl Sink No Ledge 20 Gauge
Stainless steel sinks
S6408-1 Single bowl, no ledge, 20 ga
Article Number
207.0683.106
Single compartment self rimming topmount sink less faucet ledge. 20 gauge (0.9 mm), type 301 (CNS 18/8) stainless steel. Exposed surfaces are #4 satin finished. Undercoated to reduce condensation and resonance. Includes waste fitting, factory applied rim seal, cutout template, and factory installed EZ TORQUE™ fasteners.
Certified to ASME A112.19.3-2008 / CSA B45.4-08. Centre back waste location. Includes 3 1/2" (89 mm) crumb cup strainer with 1 1/2" (DN38) stainless steel tailpiece. 18 1/8 x 16 1/8" Overall. 16 x 14 x 8" Bowl. (FB x LR x D). 460 x 410 mm Overall. 406 x 356 x 203 mm Bowl. (FB x LR x D).
Product Information
Features
Waste assembly Included
Waste fitting Crumb cup waste assembly
Product Dimensions
Overall front to back 18.11 "
Overall left to right 16.142 "
Bowl dimension front to back 15.984 "
Bowl dimension left to right 14.016 "
Bowl depth 7.992 "
Installation
Installation type Topmount, Undermount
Installation system EZ Torque
Product identification
Model S6408-1
Brand FRANKE
Product category Stainless steel sinks
Product specifications
Gauge 20
Certification cUPC
Type of material Type 301
Material code CNS 18/8
Surface finish #4 Satin
Number of bowls 1
Faucet ledge position No
Waste location Center back
Waste size 3 1/2" (89mm)
Tailpiece diameter (in) 1 1/2" (38mm)
