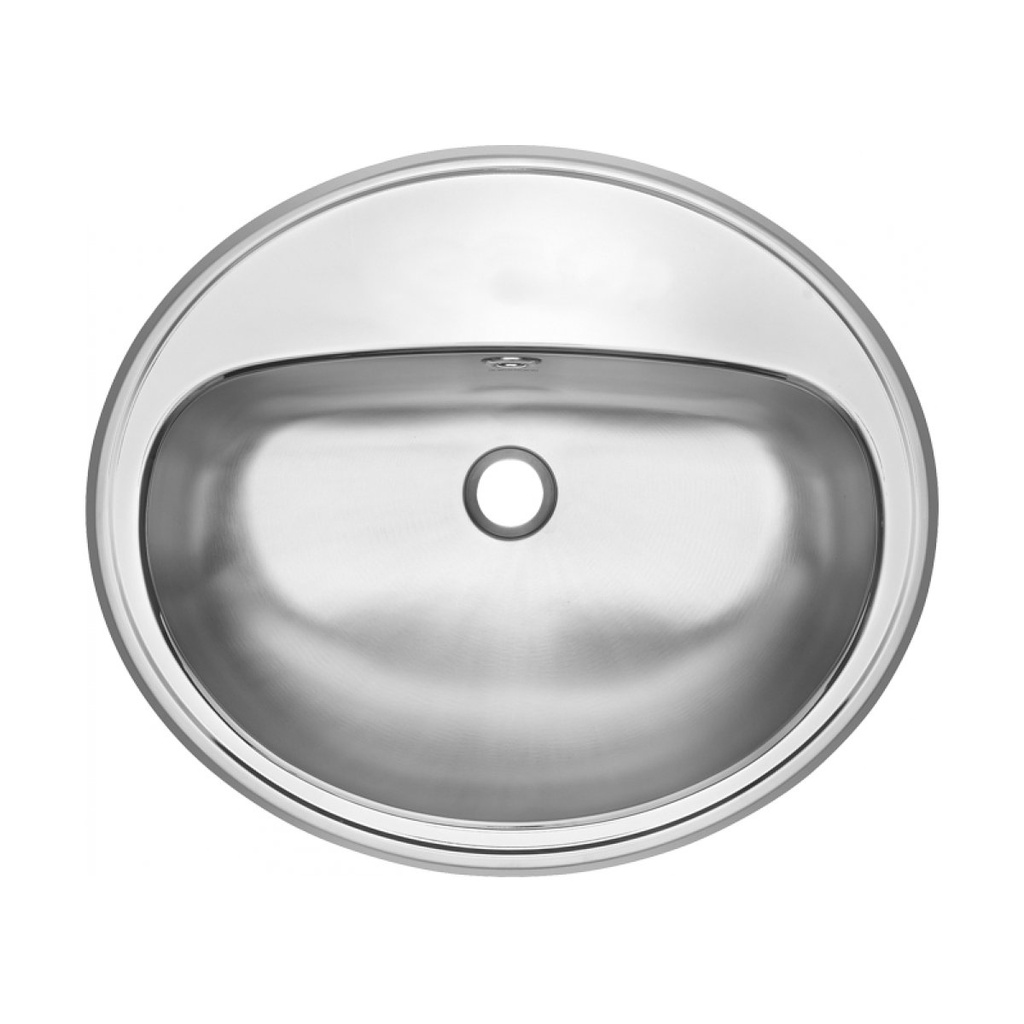

Franke OV1821-5-3 Vanity Basin With Ledge Stainless Steel
Vanity basins
OV1821-5-1 Vanity with ledge, overflow
Article Number
214.0493.216
Single compartment self rimming vanity basin with faucet ledge. 18 gauge (1.2 mm), type 304 (CNS 18/10) stainless steel. Mirror finished rim, #4 satin finished bowl. Undercoated to reduce condensation and resonance. Includes factory applied rim seal, cutout template, and installation hardware. Certified to ASME A112.19.3-2008 / CSA B45.4-08.
Centre back waste location, accepts 1 1/4" (32 mm) waste assembly (not included), integral overflow at back of bowl. 1 faucet hole, 1 1/2" (38 mm) diameter. 18 x 21" Overall. 11 7/16 x 18 x 5" Bowl. (FB x LR x D). 457 x 533 mm Overall. 291 x 457 x 127 mm Bowl. (FB x LR x D).
Product Information
Features
Overflow location Yes
Waste assembly Not included
Product Dimensions
Overall front to back 17.992 "
Overall left to right 20.984 "
Bowl dimension front to back 11.457 "
Bowl dimension left to right 17.992 "
Bowl depth 5 "
Installation
Installation type Topmount
Installation system EZ Claw
Product identification
Model OV1821-5-1
Brand FRANKE
Product category Vanity basins
Product specifications
Gauge 18
Wheelchair accessibility Yes
Certification cUPC
Type of material Type 304
Material code CNS 18/10
Surface finish Mirror rim, satin bowl
Number of bowls 1
Faucet ledge position Yes
Number of faucet holes 1
Waste location Center back
Waste size 1 1/4" (32mm)
