Franke OV1619-6-3 Vanity Basin With Ledge Stainless Steel
Vanity basins
OV1619-6-1 Vanity with ledge, overflow
Article Number
214.0493.214

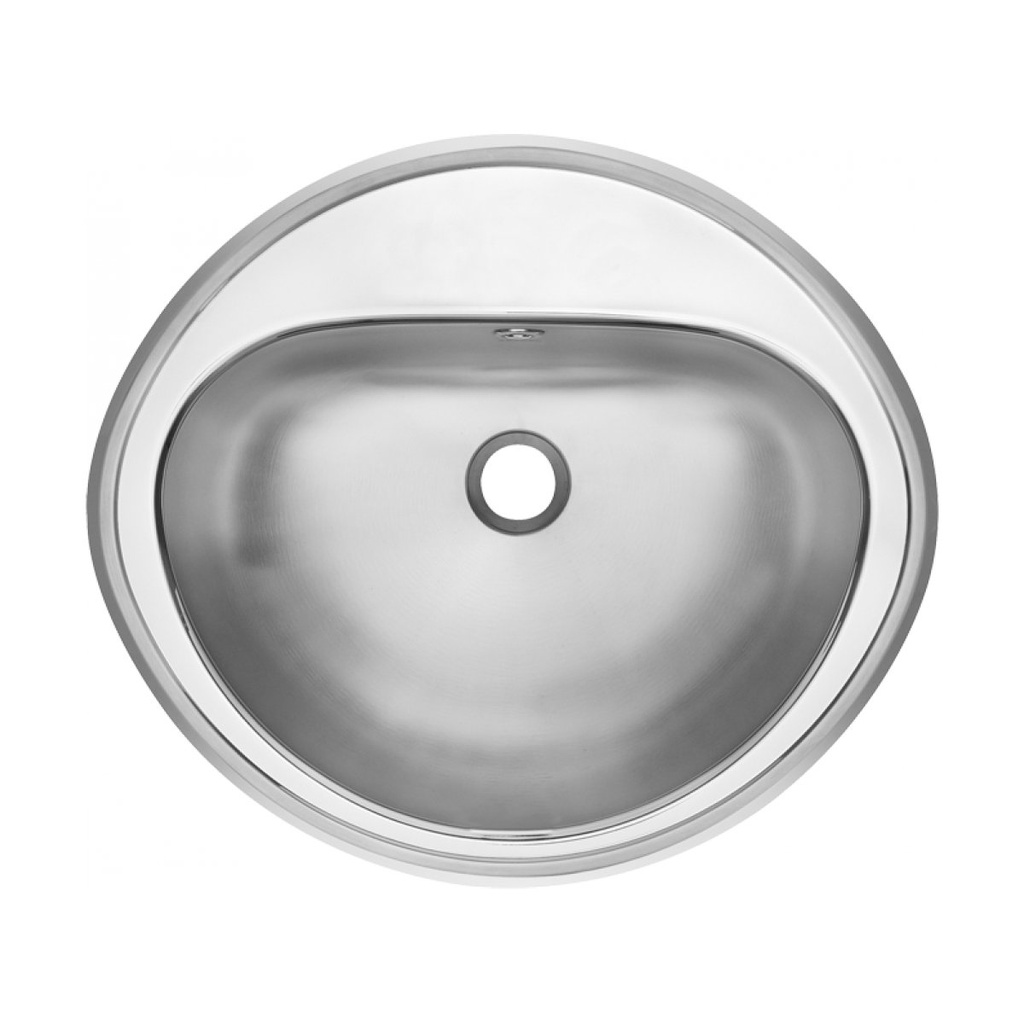

Single compartment self rimming vanity basin with faucet ledge. 18 gauge (1.2 mm), type 304 (CNS 18/10) stainless steel. Mirror finished rim, #4 satin finished bowl. Undercoated to reduce condensation and resonance. Includes factory applied rim seal, cutout template, and installation hardware.
Certified to ASME A112.19.3-2008 / CSA B45.4-08. Wheelchair accessible: meets ADA (Americans with disabilities act guidelines), ANSI A117.1 (Accessible and usable buildings and facilities), and CSA B651-04 (Accessible design for the built environment).

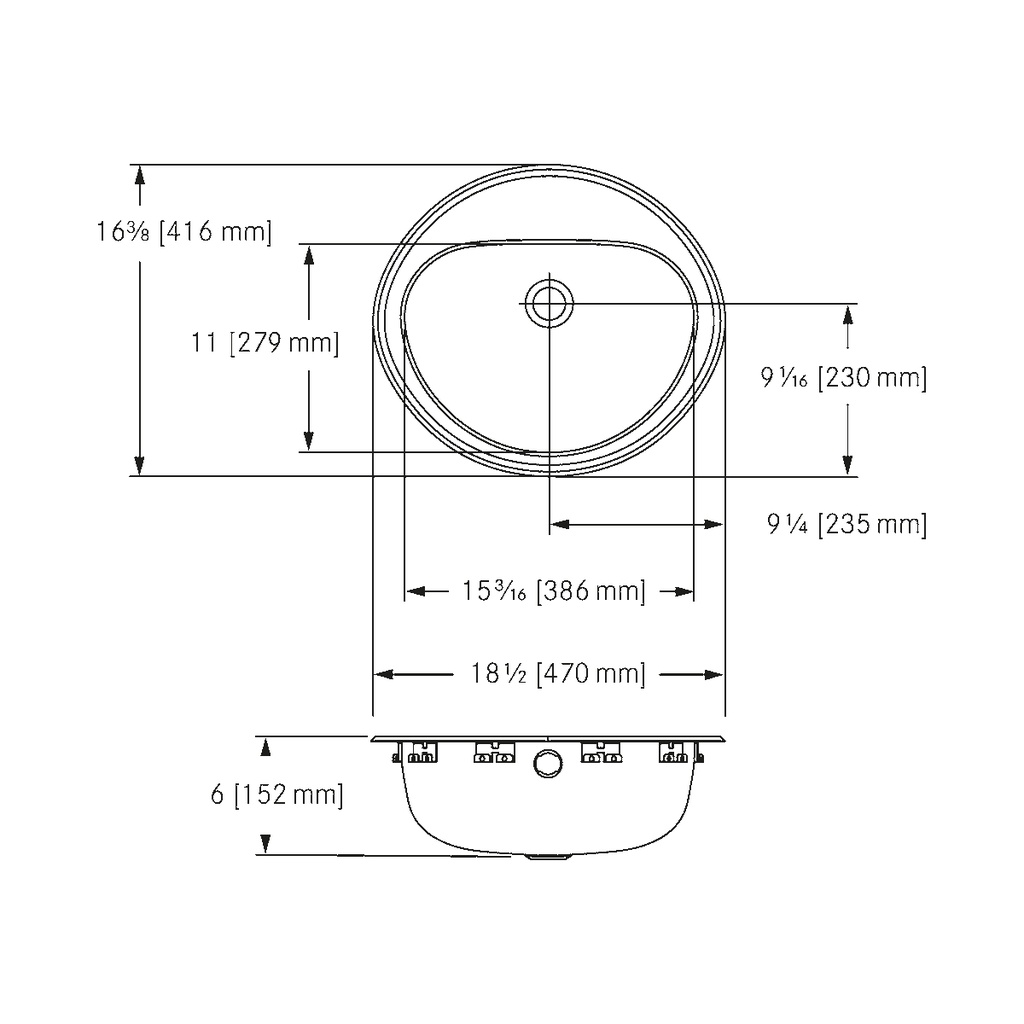

Check local codes to ensure compliance. Centre back waste location, accepts 1 1/4" (32 mm) waste assembly (not included), integral overflow at front of bowl. 1 faucet hole, 1 1/2" (38 mm) diameter. 16 3/8 x 18 1/2" Overall. 11 x 15 3/16 x 6" Bowl. (FB x LR x D). 416 x 470 mm Overall. 279 x 386 x 152 mm Bowl. (FB x LR x D).
Product Information
Features
Overflow location Yes
Waste assembly Not included
Product Dimensions
Overall front to back 16.378 "
Overall left to right 18.504 "
Bowl dimension front to back 10.984 "
Bowl dimension left to right 15.197 "
Bowl depth 5.984 "
Installation
Installation type Topmount
Installation system EZ Claw
Product identification
Model OV1619-6-1
Brand FRANKE
Product category Vanity basins
Product specifications
Gauge 18
Wheelchair accessibility Yes
Certification cUPC
Type of material Type 304
Material code CNS 18/10
Surface finish Mirror rim, satin bowl
Number of bowls 1
Faucet ledge position Yes
Number of faucet holes 1
Waste location Center back
Waste size 1 1/4" (32mm)
