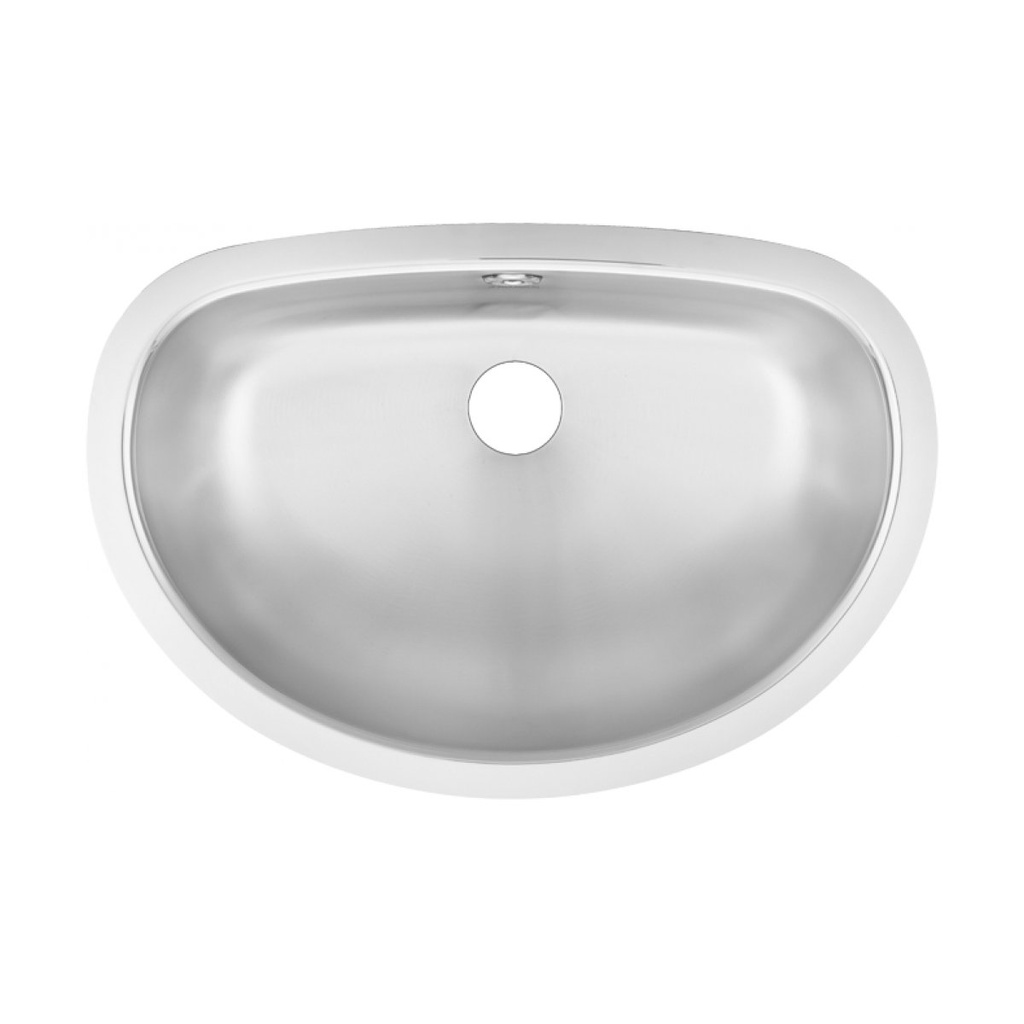

Franke OV1420U-5 Vanity Basin Undermount 18 Gauge Stainless Steel
Vanity basins
OV1420U-5 Vanity undermount, overflow
Article Number
214.0493.223
Single compartment undermount vanity basin. 18 gauge (1.2 mm), type 304 (CNS 18/10) stainless steel. Exposed surfaces are #4 satin finished. Undercoated to reduce condensation and resonance. Includes cutout template and installation hardware.
Certified to ASME A112.19.3-2008 / CSA B45.4-08. Wheelchair accessible: meets ADA (Americans with disabilities act guidelines), ANSI A117.1 (Accessible and usable buildings and facilities), and CSA B651-04 (Accessible design for the built environment). Check local codes to ensure compliance.

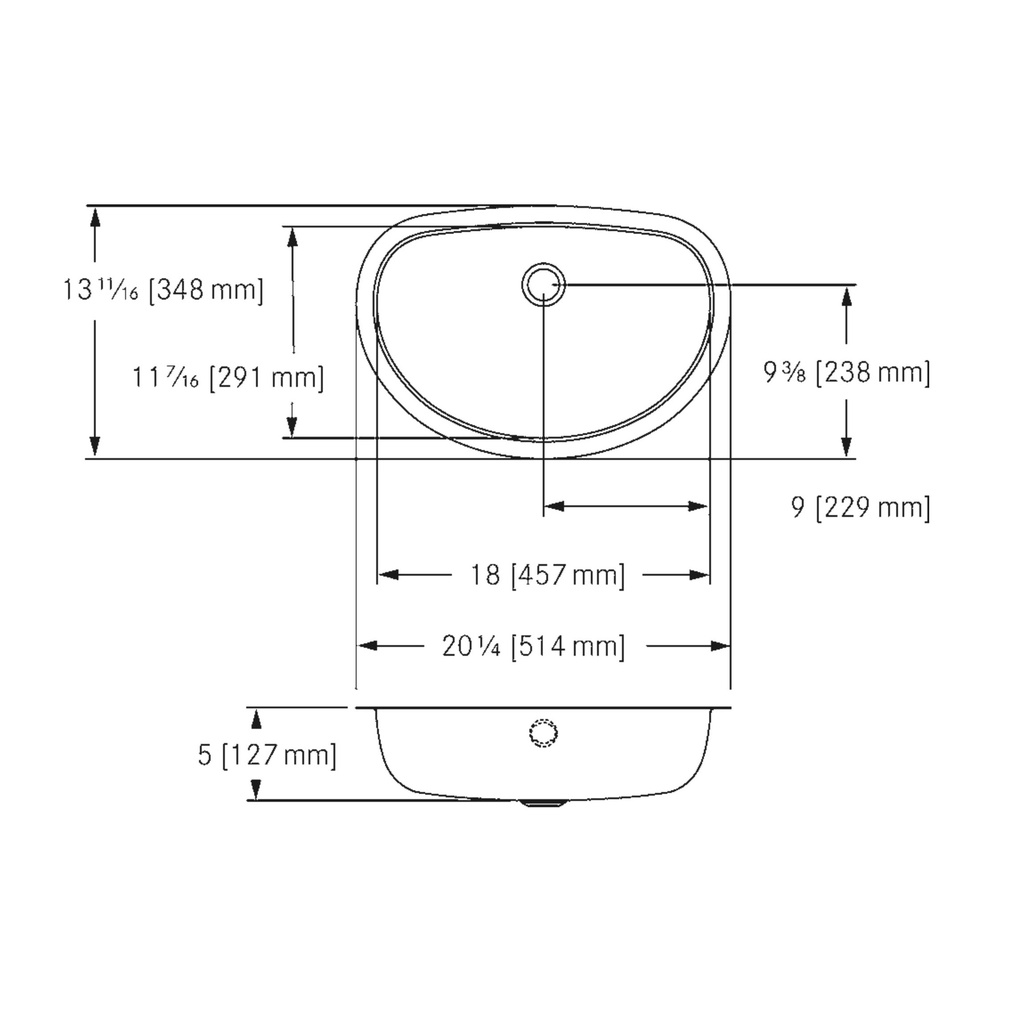

Centre back waste location, accepts 1 1/4" (32 mm) waste assembly (not included), integral overflow at back of bowl. 13 11/16 x 20 1/4" Overall. 11 7/16 x 18 x 5" Bowl. (FB x LR x D). 348 x 514 mm Overall. 291 x 457 x 127 mm Bowl. (FB x LR x D).
Product Information
Features
Overflow location Yes
Waste assembly Not included
Product Dimensions
Overall front to back 13.701 "
Overall left to right 20.236 "
Bowl dimension front to back 11.457 "
Bowl dimension left to right 17.992 "
Bowl depth 5 "
Installation
Installation type Undermount
Product identification
Model OV1420U-5
Brand FRANKE
Product category Vanity basins
Product specifications
Gauge 18
Wheelchair accessibility Yes
Certification cUPC
Type of material Type 304
Material code CNS 18/10
Surface finish Mirror rim, satin bowl
Number of bowls 1
Faucet ledge position No
Waste location Center back
Waste size 1 1/4" (32mm)
