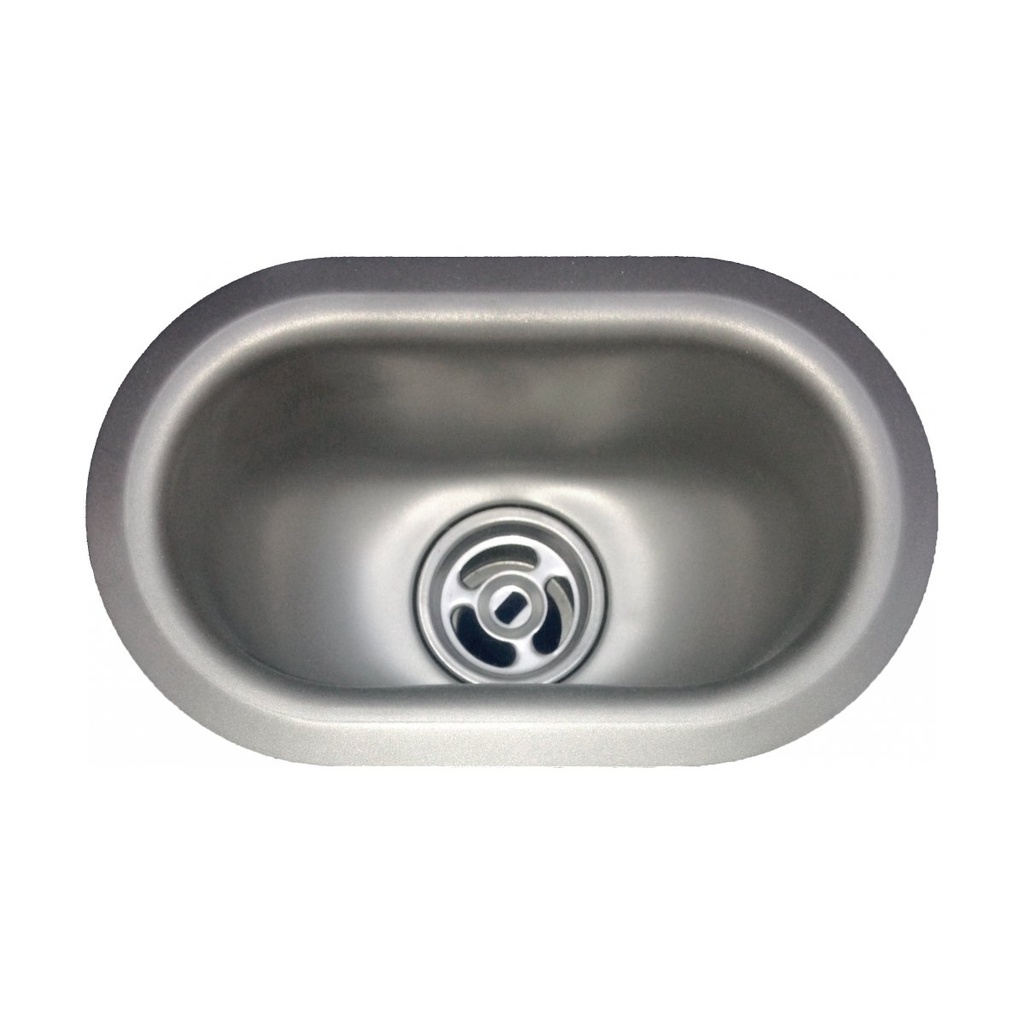

Franke OC6-316 Type 316 Oval Cup Sink Stainless Steel
Type 316 sinks
OC6-316 Type 316 Cup Sink, 20ga
Article Number
253.0221.208
Single bowl commercial laboratory sink. 20 gauge (0.9 mm), type 316 (EN1.4401 17/12/2) stainless steel. Exposed surfaces are sand- blast finished. Positive hold down clamping. 1 1/2" (38 mm) type 316 (EN1.4401 17/12/2) stainless steel duplex waste assembly is integral (tailpiece optional*). Certified to ASME A112.19.3-2008 / CSA B45.4-08. Centre waste location.
These sinks do not include tailpiece. A type 316 tailpiece is available by ordering 315-9-316. 4 1/2 x 7 1/2" Overall. 3 x 6 x 3 11/16" Bowl. (FB x LR x D). 114 x 190 mm Overall. 76 x 152 x 94 mm Bowl. (FB x LR x D).
Product Information
Features
Waste assembly Included
Waste fitting Integral duplex assembly
Product Dimensions
Overall front to back 4.488 "
Overall left to right 7.52 "
Bowl dimension front to back 2.992 "
Bowl dimension left to right 5.984 "
Bowl depth 3.701 "
Installation
Installation type Topmount
Installation system Positive hold down clamp
Product identification
Model OC6-316
Brand FRANKE
Product category Type 316 sinks
Product specifications
Gauge 20
Waste size 1 1/2" (38mm)
Tailpiece diameter (in) Optional: 315-9-316
Certification cUPC
Vandal resistant Yes
Type of material Type 316
Material code EN1.4401 17/12/2
Surface finish Sand blast finish
Number of bowls 1
Waste location Center
