Franke LBSDBL6810-316P-1-1 Type 316 Topmount Left Drainboard Single Sink
Type 316 sinks
LBSDBL6810-316P-1 T316 Drainboard sink
Article Number
253.0221.202
Model Options:
LBSDBL6810-316P-1-1, 1 faucet hole, 1 1/2" diameter.
LBSDBL6810-316P-1-3, 3 faucet holes, 1 1/2" diameter, 4" centres, 8" centreset. LBSDBL6810-316P-1, Custom (non-returnable). 20 9/16 x 40" Overall. 16 x 18 x 10" Bowl. (FB x LR x D). 522 x 1016 mm Overall. 406 x 457 x 254 mm Bowl. (FB x LR x D).

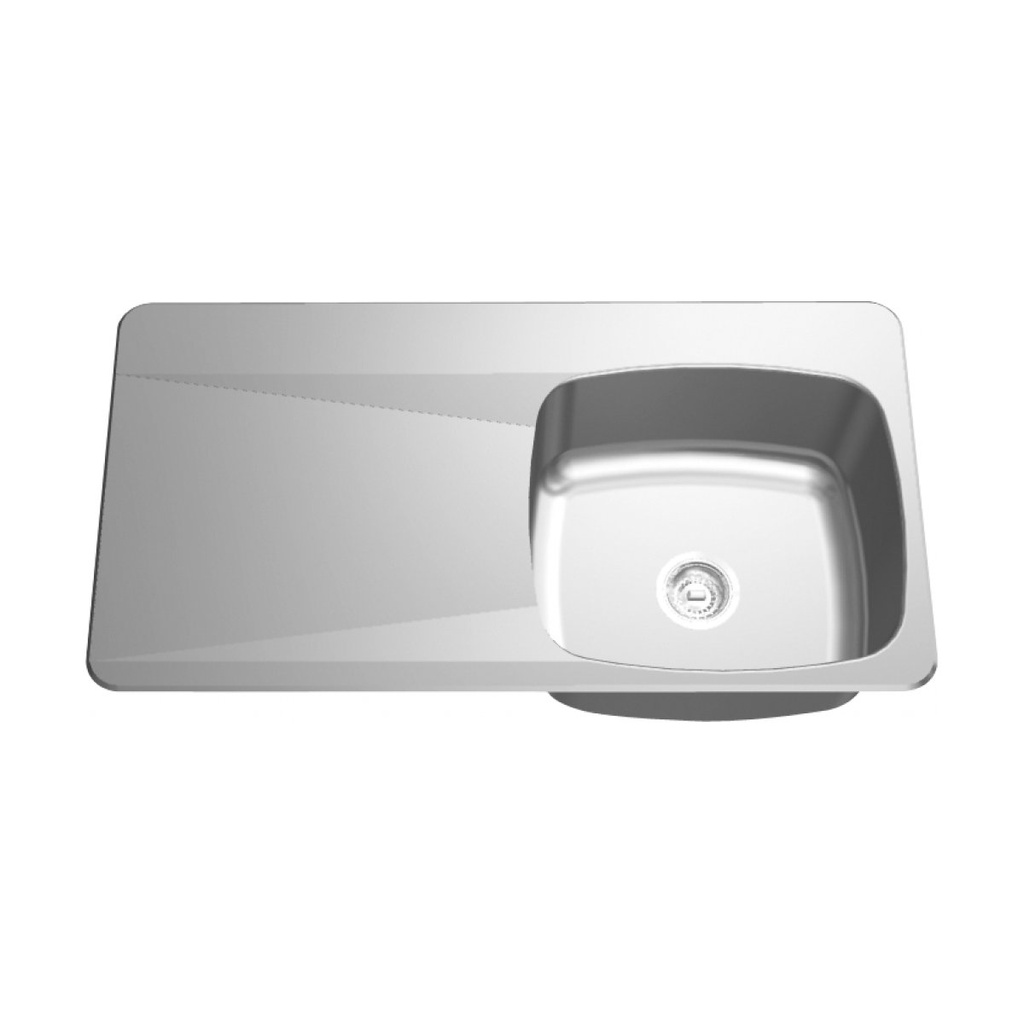

Single compartment self rimming topmount sink with faucet ledge and Drainboard. 18 gauge (1.2 mm), type 316 (EN1.4401 17/12/2) stainless steel. Exposed surfaces are #4 satin finished. Undercoated to reduce condensation and resonance. Waste fittings included. Certified to ASME A112.19.3-2008 / CSA B45.4-08. Note: Please allow 4 weeks for delivery.
Drainboard is located to the left of sink bowl and is sloped for drainage. Centre waste location. Includes 3 1/2" (89 mm) crumb cup strainer with 1 1/2" (DN38) brass tailpiece.
Product Information
Features
Drainboard Left
Waste assembly Included
Waste fitting Crumb cup waste assembly
Product Dimensions
Overall front to back 20.551 "
Overall left to right 40 "
Bowl dimension front to back 15.984 "
Bowl dimension left to right 17.992 "
Bowl depth 10 "
Installation
Installation type Topmount
Installation system EZ Torque
Product identification
Model LBSDBL6810-316P-1
Brand FRANKE
Product category Type 316 sinks
Product specifications
Gauge 18
Waste size 3 1/2" (89mm)
Tailpiece diameter (in) 1 1/2" (38mm)
Certification cUPC
Type of material Type 316
Material code EN1.4401 17/12/2
Surface finish #4 Satin
Number of bowls 1
Faucet ledge position Yes
Number of faucet holes Specify when ordering
Waste location Center
