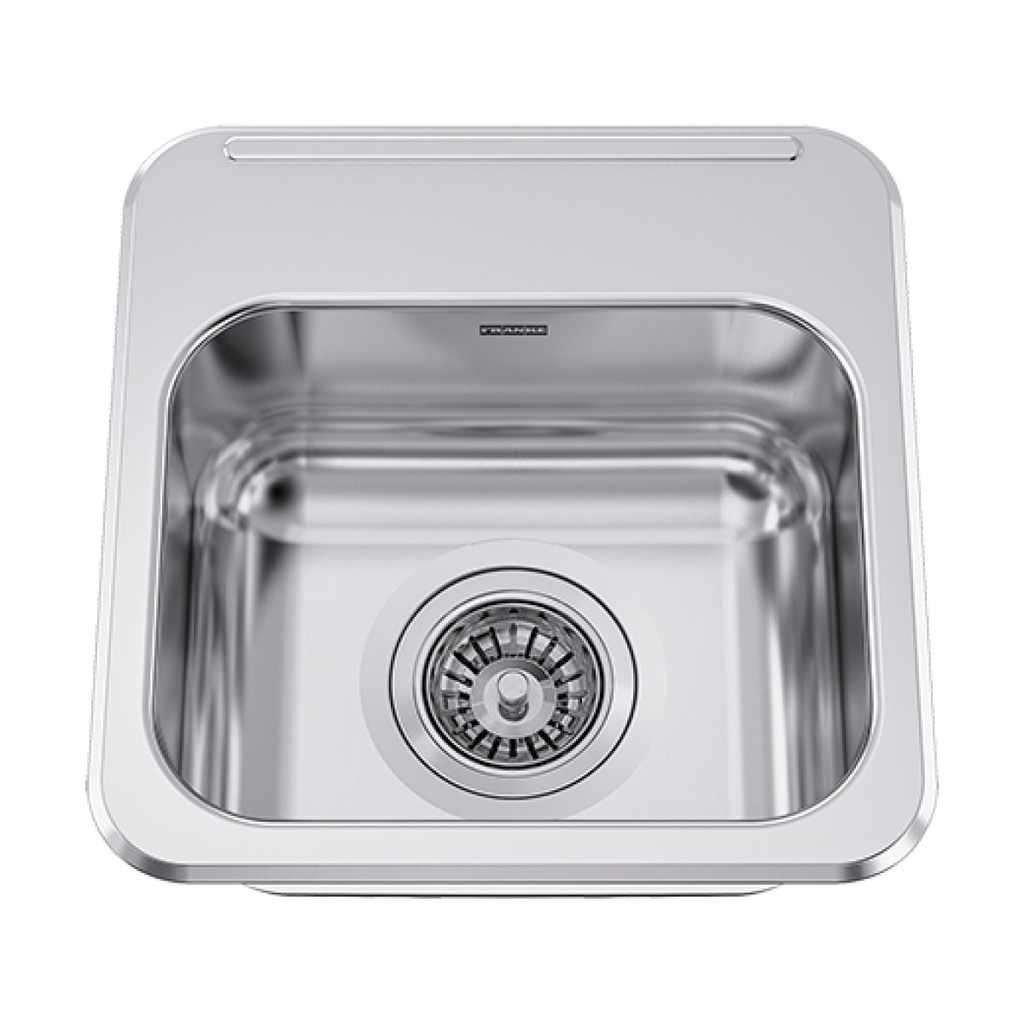

Franke LBS9106-1-1 Topmount Single Sink With Ledge Stainless Steel
Stainless steel sinks
LBS9106-1 Single bowl topmount, 20 ga
Article Number
207.0683.035
Model Options:
LBS9106-1-1, 1 faucet hole, 1 1/2" diameter.
LBS9106-1-2, 2 faucet holes, 1 1/2" diameter, 4" centres.
LBS9106-1, Custom (non-returnable). 13 3/4 x 13 5/8" Overall. 9 1/4 x 11 5/8 x 6" Bowl. (FB x LR x D). 349 x 346 mm Overall. 235 x 295 x 152 mm Bowl. (FB x LR x D).
Single compartment self rimming topmount sink with faucet ledge. 20 gauge (0.9 mm), type 301 (CNS 18/8) stainless steel. Exposed surfaces are #4 satin finished. Undercoated to reduce condensation and resonance. Includes waste fitting, factory applied rim seal, cutout template, and factory installed EZ TORQUE™ fasteners.
Certified to ASME A112.19.3-2008 / CSA B45.4-08. Wheelchair accessible: meets ADA (Americans with disabilities act guidelines) and ANSI A117.1 (Accessible and usable buildings and facilities). Check local codes to ensure compliance. Centre waste location. Includes 3 1/2" (89 mm) crumb cup strainer with 1 1/2" (DN38) stainless steel tailpiece.
Product Information
Features
Waste assembly Included
Waste fitting Crumb cup waste assembly
Product Dimensions
Overall front to back 13.74 "
Overall left to right 13.622 "
Bowl dimension front to back 9.252 "
Bowl dimension left to right 11.614 "
Bowl depth 5.984 "
Installation
Installation type Topmount
Installation system EZ Torque
Product identification
Model LBS9106-1
Brand FRANKE
Product category Stainless steel sinks
Product specifications
Gauge 20
Certification cUPC
Type of material Type 301
Material code CNS 18/8
Surface finish #4 Satin
Number of bowls 1
Faucet ledge position Yes
Number of faucet holes Specify when ordering
Waste location Center
Waste size 3 1/2" (89mm)
Tailpiece diameter (in) 1 1/2" (38mm)
