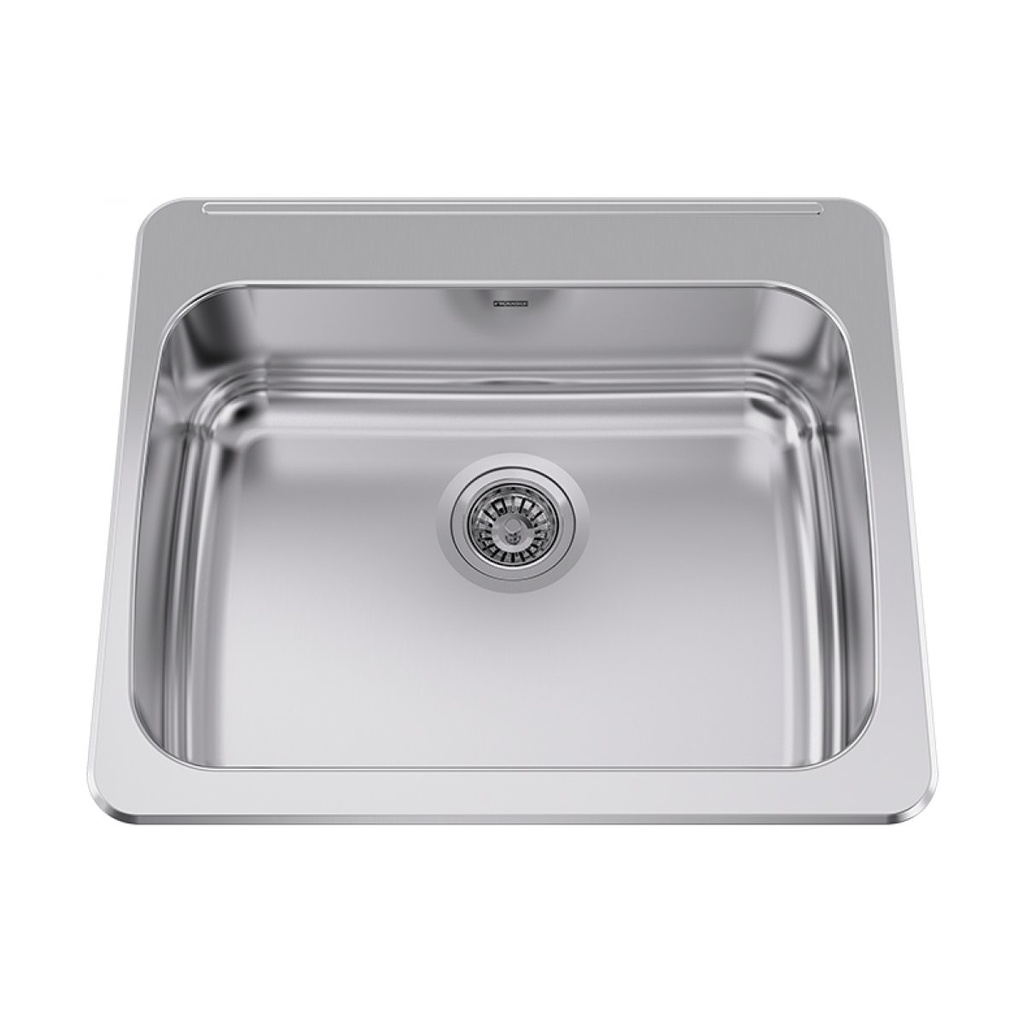

Franke LBS7310P-1 Topmount Single Bowl Sink With Ledge Stainless Steel
Stainless steel sinks
LBS7310P-1 Single bowl topmount, 18 ga
Article Number
207.0683.008
Model Options, specify when ordering:
LBS7310P-1-1, 1 faucet hole, 1 1/2" diameter.
LBS7310P-1-3, 3 faucet holes, 1 1/2" diameter, 4" centres, 8" centreset.
LBS7310P-1 Custom (non-returnable). 22 1/16 x 25 5/8" Overall. 17 x 23 x 10" Bowl. (FB x LR x D). 560 x 651 mm Overall. 432 x 584 x 254 mm Bowl. (FB x LR x D).
Single compartment self rimming topmount sink with faucet ledge. 18 gauge (1.2 mm), type 304 (CNS 18/10) stainless steel. Exposed surfaces are #4 satin finished. Undercoated to reduce condensation and resonance. Includes waste fitting, factory applied rim seal, cutout template, and factory installed EZ TORQUE™ fasteners.
Certified to ASME A112.19.3-2008 / CSA B45.4-08. Centre back waste location. Includes 3 1/2" (89 mm) crumb cup strainer with 1 1/2" (DN38) brass tailpiece.
Product Information
Features
Waste assembly Included
Waste fitting Crumb cup waste assembly
Product Dimensions
Overall front to back 22.047 "
Overall left to right 25.63 "
Bowl dimension front to back 17.008 "
Bowl dimension left to right 22.992 "
Bowl depth 10 "
Installation
Installation type Topmount
Installation system EZ Torque
Product identification
Model LBS7310P-1
Brand FRANKE
Product category Stainless steel sinks
Product specifications
Gauge 18
Certification cUPC
Type of material Type 304
Material code CNS 18/10
Surface finish #4 Satin
Number of bowls 1
Faucet ledge position Yes
Number of faucet holes Specify when ordering
Waste location Center back
Waste size 3 1/2" (89mm)
Tailpiece diameter (in) 1 1/2" (38mm)
