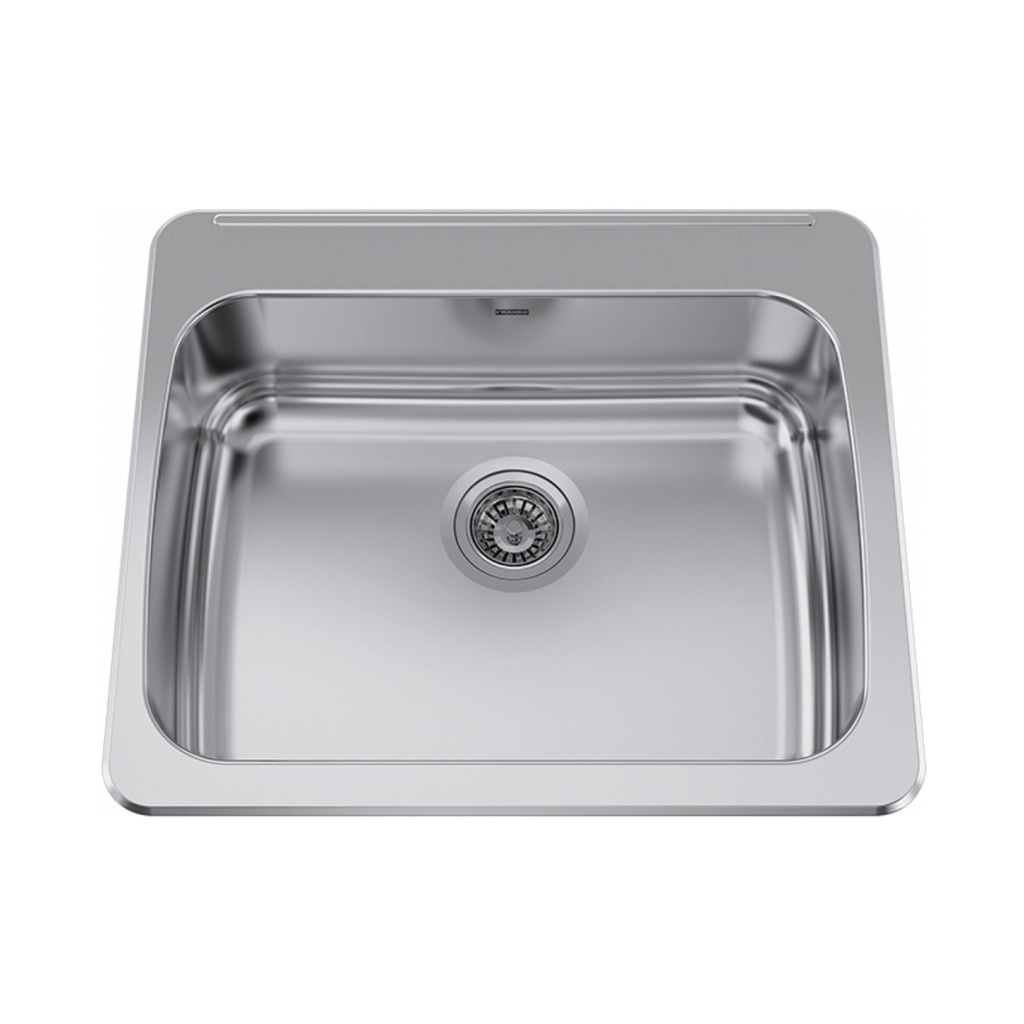

Franke LBS7308-1-1 Topmount Single Sink With Ledge Stainless Steel
LBS7308-1 Single bowl topmount, 20 ga | 207.0682.997
Single compartment self rimming topmount sink with faucet ledge. 20 gauge (0.9 mm), type 301 (CNS 18/8) stainless steel. Exposed surfaces are #4 satin finished. Undercoated to reduce condensation and resonance. Includes factory applied rim seal, cutout template, and factory installed EZ TORQUE™ fasteners. Certified to ASME A112.19.3-2008 / CSA B45.4-08. Centre back waste location. Includes 3 1/2" (89 mm) crumb cup strainer with 1 1/2" (DN38) stainless
steel tailpiece.
Model Options:
LBS7308-1-1, 1 faucet hole, 1 1/2" diameter.
LBS7308-1-3, 3 faucet holes, 1 1/2"
diameter, 4" centres, 8" centreset.
LBS7308-1-4, 3 faucet holes, 1 1/2" diameter, 4" centres, 8" centreset, plus 1 hole 4" to the right (non-returnable).

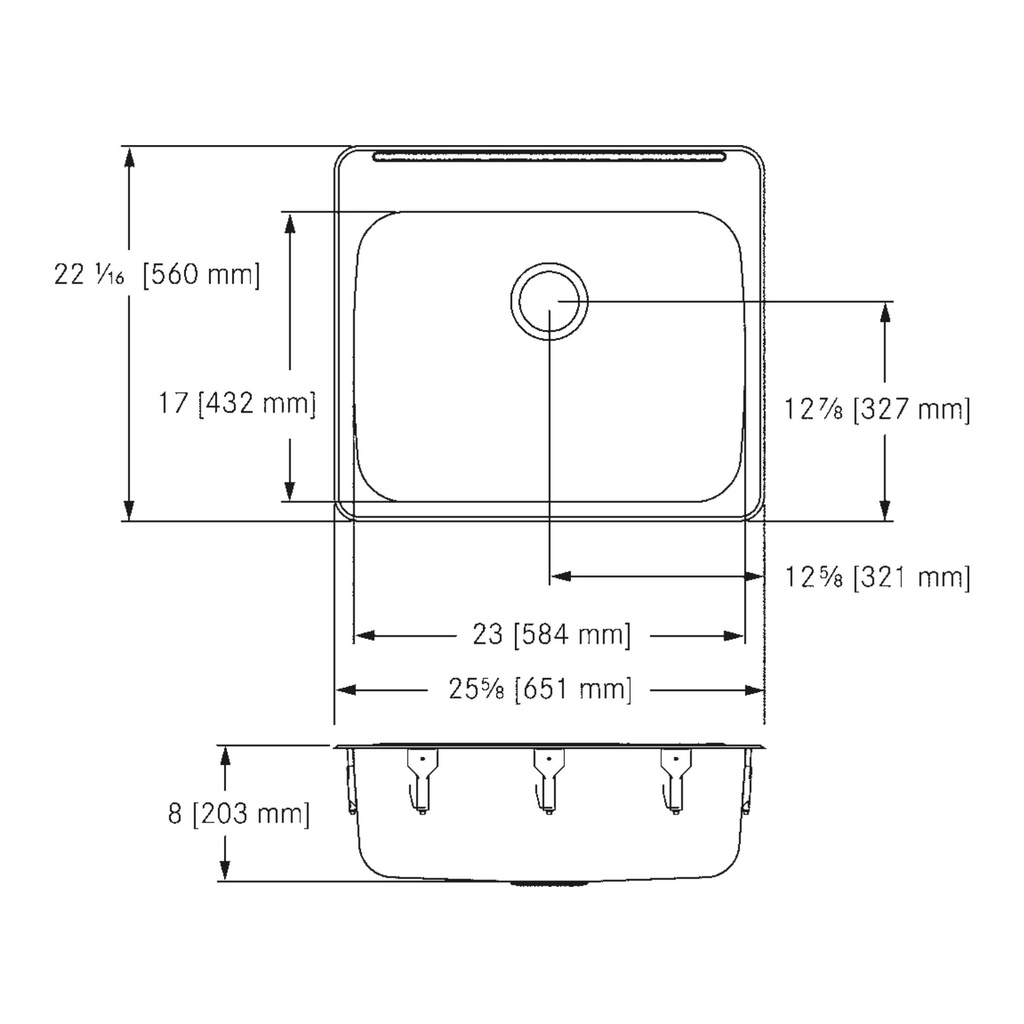

LBS7308-1, Custom (non-returnable). 22 1/16 x 25 5/8" Overall. 17 x 23 x 8" Bowl. (FB x LR x D). 560 x 651 mm Overall. 432 x 584 x 203 mm Bowl. (FB x LR x D).
Product Dimensions
Overall front to back 22.047
Overall left to right 25.63
Bowl dimension front to back 17.008
Bowl dimension left to right 22.992
Bowl depth 7.992
Installation
Installation type Topmount
Installation system EZ Torque
Product specifications
Gauge 20
Certification cUPC
Type of material Type 301
Material code CNS 18/8
Surface finish #4 Satin
Number of bowls 1
Faucet ledge position Yes
Number of faucet holes Specify when ordering
Waste location Center back
Waste size 3 1/2" (89mm)
Tailpiece diameter (in) 1 1/2" (38mm)
Product identification
Model LBS7308-1
Brand FRANKE
Product category Stainless steel sinks
Features
Waste assembly Included
Waste fitting Crumb cup waste assembly
