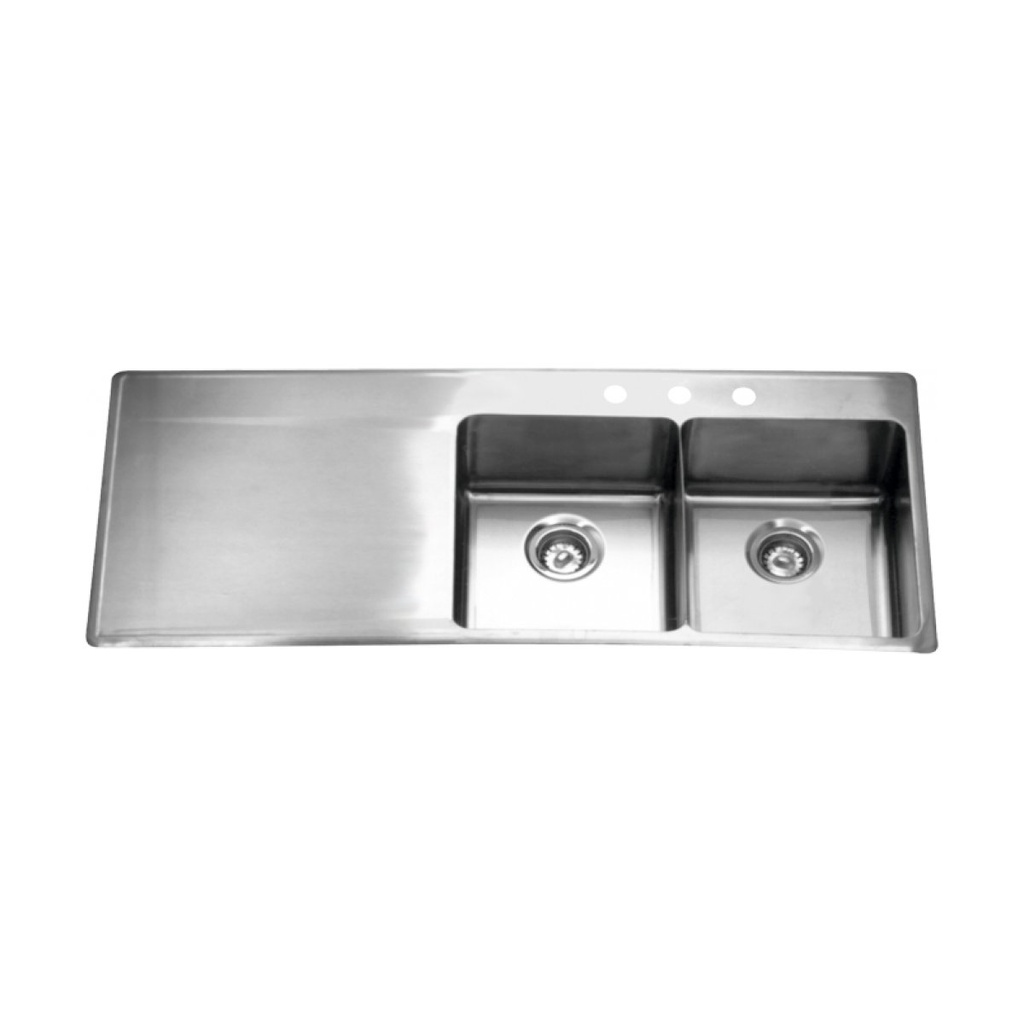

Franke LBDDBL6408P-1 18 Gauge Drainboard Double Sink Stainless Steel
Stainless steel sinks
LBDDBL6408P-1 Drainboard double db left
Article Number
253.0221.190
Model Options:
LBDDBL6408P-1-1, 1 faucet hole, 1 1/2" diameter.
LBDDBL6408P-1-3, 3 faucet holes, 1 1/2" diameter, 4" centres, 8" centreset.
LBDDBL6408P-1, Custom (non-returnable). 20 1/2 x 51" Overall. 16 x 14 x 8" Bowl. (FB x LR x D). 521 x 1295 mm Overall. 406 x 356 x 203 mm Bowl. (FB x LR x D).
Double compartment self rimming topmount sink with faucet ledge and Drainboard. Drainboard is located to the right of sink bowl and is sloped for drainage. 18 gauge (1.2 mm), type 304 (CNS 18/10) stainless steel. Exposed surfaces are #4 satin finished. Undercoated to reduce condensation and resonance. Waste fittings included.
Certified to ASME A112.19.3-2008 / CSA B45.4-08. Drainboard is located to the left of sink bowls and is sloped for drainage. Centre rear waste location. Includes 3 1/2" (89 mm) crumb cup strainer with 1 1/2" (DN38) brass tailpiece.
Product Information
Features
Waste assembly Included
Waste fitting Crumb cup waste assembly
Drainboard Left
Product Dimensions
Overall front to back 20.512 "
Overall left to right 50.984 "
Bowl dimension front to back 15.984 "
Bowl dimension left to right 14.016 "
Bowl depth 7.992 "
Installation
Installation type Topmount
Installation system EZ Torque
Product identification
Model LBDDBL6408P-1
Brand FRANKE
Product category Stainless steel sinks
Product specifications
Gauge 18
Certification cUPC
Type of material Type 304
Material code CNS 18/10
Surface finish #4 Satin
Number of bowls 2
Faucet ledge position Yes
Number of faucet holes Specify when ordering
Waste location Center back
Waste size 3 1/2" (89mm)
Tailpiece diameter (in) 1 1/2" (38mm)
