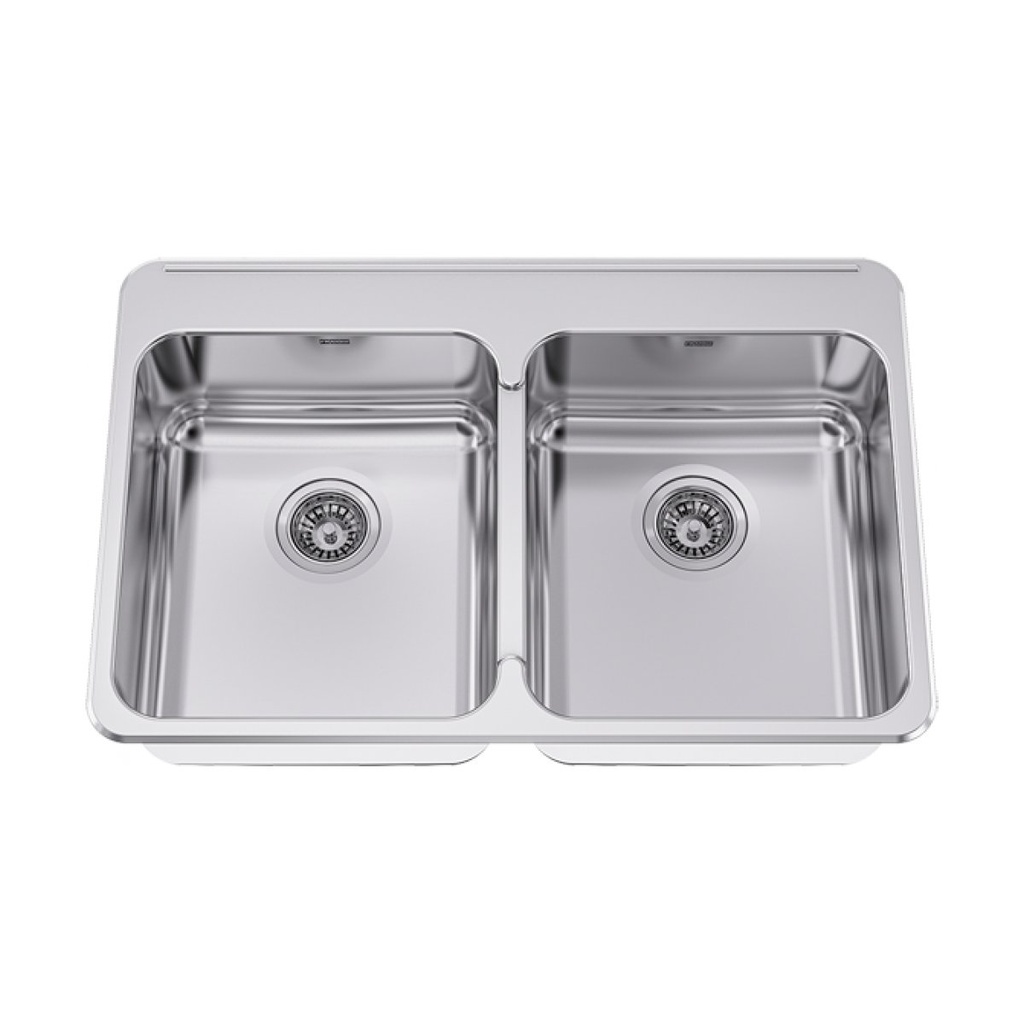

Franke LBD7510P-1-1 Double Sink With Ledge 18 Gauge Stainless Steel
Stainless steel sinks
LBD7510P-1 Double bowl topmount, 18 ga
Article Number
207.0682.862
Model Options:
LBD7510P-1-1, 1 faucet hole, 1 1/2" diameter.
LBD7510P-1-3, 3 faucet holes, 1 1/2" diameter, 4" centres, 8" centreset.
LBD7510P-1, Custom (non-returnable). 22 x 33 1/4" Overall. 17 x 15 x 10" Bowl. (FB x LR x D). 559 x 845 mm Overall. 432 x 381 x 254 mm Bowl. (FB x LR x D).
Double compartment self rimming topmount sink with faucet ledge. 18 gauge (1.2 mm), type 304 (CNS 18/10) stainless steel. Exposed surfaces are #4 satin finished. Undercoated to reduce condensation and resonance. Includes waste fittings, factory applied rim seal, cutout template, and factory installed EZ TORQUE™ fasteners.
Certified to ASME A112.19.3-2008 / CSA B45.4-08. Centre back waste location. Includes 3 1/2" (89 mm) crumb cup strainer with 1 1/2" (DN38) brass tailpiece. Sink has Spillway® partition.
Product Information
Features
Waste assembly Included
Waste fitting Crumb cup waste assembly
Product Dimensions
Overall front to back 22.008 "
Overall left to right 33.268 "
Bowl dimension front to back 17.008 "
Bowl dimension left to right 15 "
Bowl depth 10 "
Installation
Installation type Topmount
Installation system EZ Torque
Product identification
Model LBD7510P-1
Brand FRANKE
Product category Stainless steel sinks
Product specifications
Gauge 18
Certification cUPC
Type of material Type 304
Material code CNS 18/10
Surface finish #4 Satin
Number of bowls 2
Faucet ledge position Yes
Number of faucet holes Specify when ordering
Waste location Center back
Waste size 3 1/2" (89mm)
Tailpiece diameter (in) 1 1/2" (38mm)
