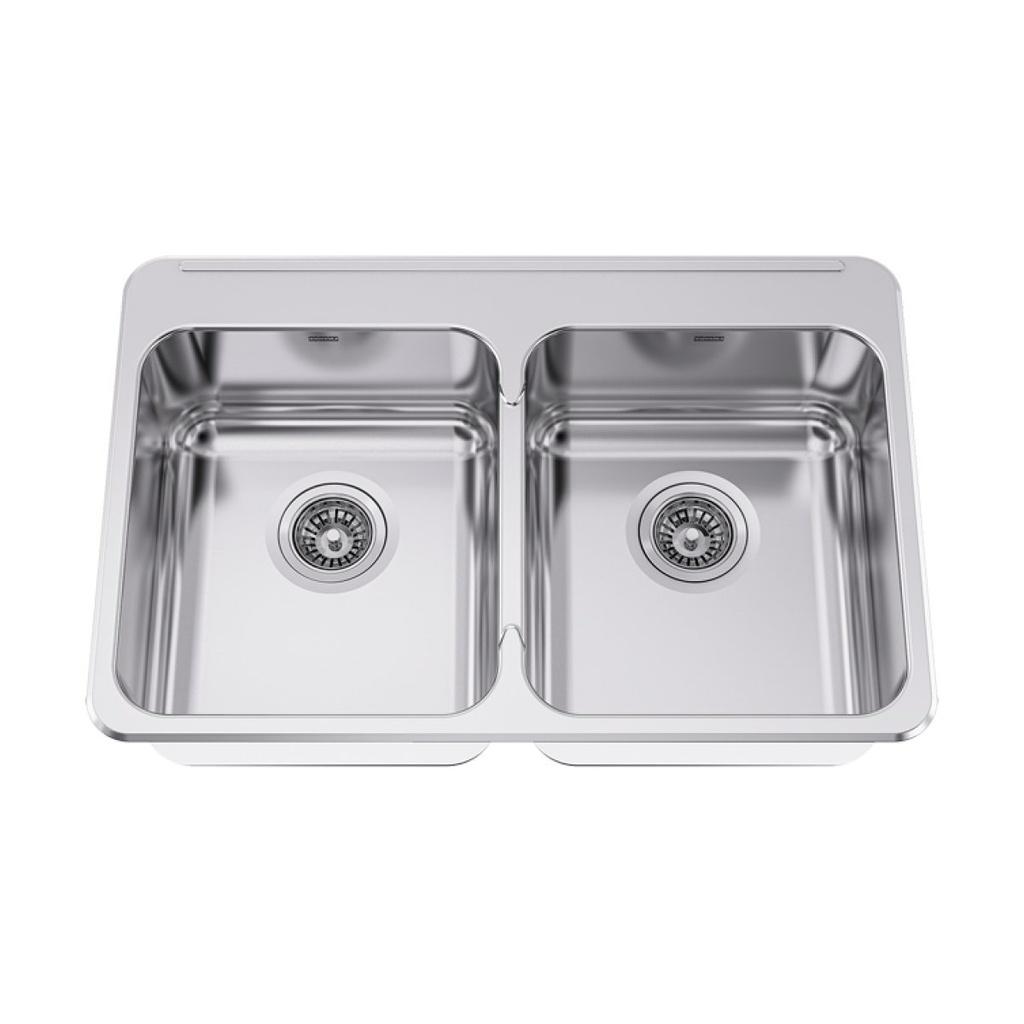

Franke LBD6408-1-3 Double Sink With Ledge 20 Gauge Stainless Steel
Stainless steel sinks
LBD6408-1 Double bowl topmount, 20 ga
Article Number
207.0682.829
Model Options:
LBD6408-1-1, 1 faucet hole, 1 1/2" diameter.
LBD6408-1-3, 3 faucet holes, 1 1/2" diameter, 4" centres, 8" centreset.
LBD6408-1, Custom (non-returnable). 20 1/2 x 31 1/4" Overall. 16 x 14 x 8" Bowl. (FB x LR x D). 521 x 794 mm Overall. 406 x 356 x 203 mm Bowl. (FB x LR x D).
Double compartment self rimming topmount sink with faucet ledge. 20 gauge (0.9 mm), type 301 (CNS 18/8) stainless steel. Exposed surfaces are #4 satin finished. Spillway® between bowls. Undercoated to reduce condensation and resonance. Includes waste fittings, factory applied rim seal, cutout template, and factory installed EZ TORQUE™ fasteners.
Certified to ASME A112.19.3-2008 / CSA B45.4- 08. Centre back waste location. Includes 3 1/2" (89 mm) crumb cup strainer with 1 1/2" (DN38) stainless steel tailpiece. Sink has Spillway® partition.
Product Information
Features
Waste assembly Included
Waste fitting Crumb cup waste assembly
Product Dimensions
Overall front to back 20.512 "
Overall left to right 31.26 "
Bowl dimension front to back 15.984 "
Bowl dimension left to right 14.016 "
Bowl depth 7.992 "
Installation
Installation type Topmount
Installation system EZ Torque
Product identification
Model LBD6408-1
Brand FRANKE
Product category Stainless steel sinks
Product specifications
Gauge 20
Certification cUPC
Type of material Type 301
Material code CNS 18/8
Surface finish #4 Satin
Number of bowls 2
Faucet ledge position Yes
Number of faucet holes Specify when ordering
Waste location Center back
Waste size 3 1/2" (89mm)
Tailpiece diameter (in) 1 1/2" (38mm)
