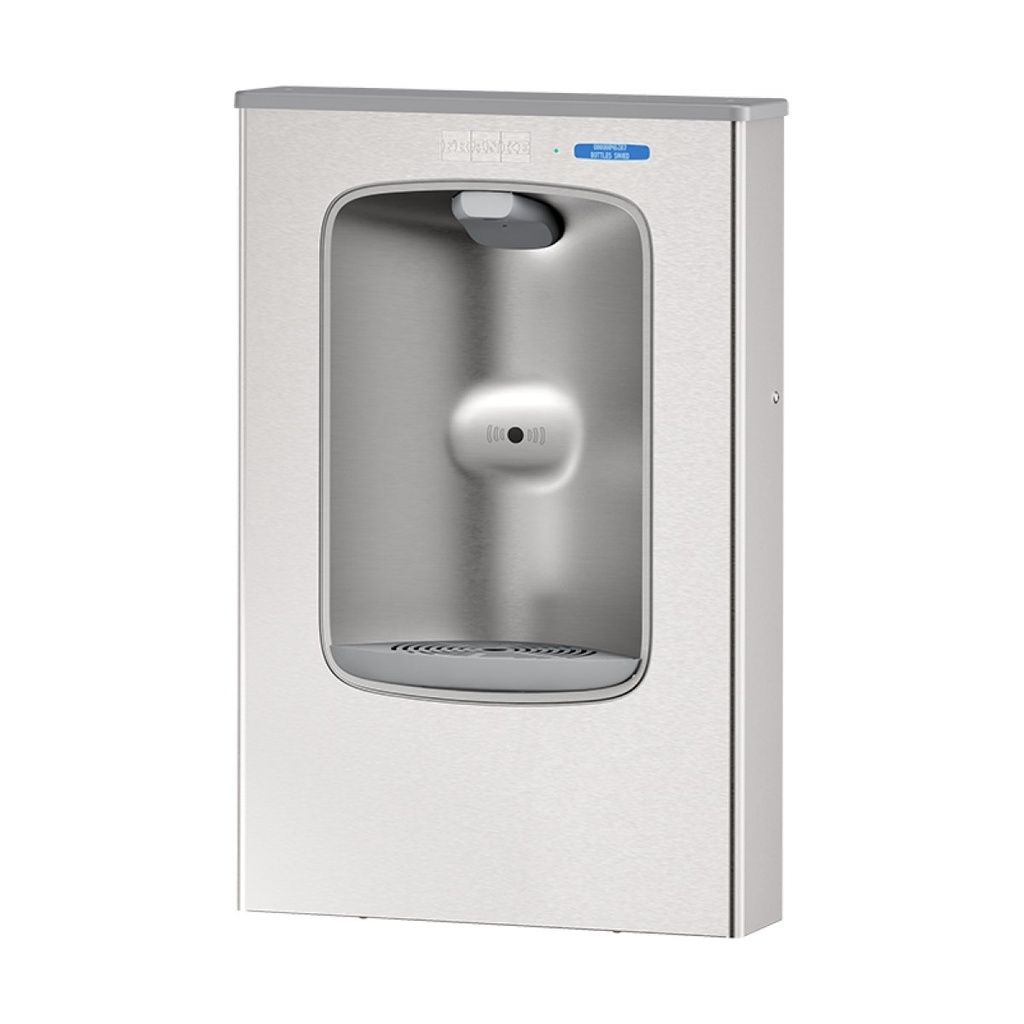

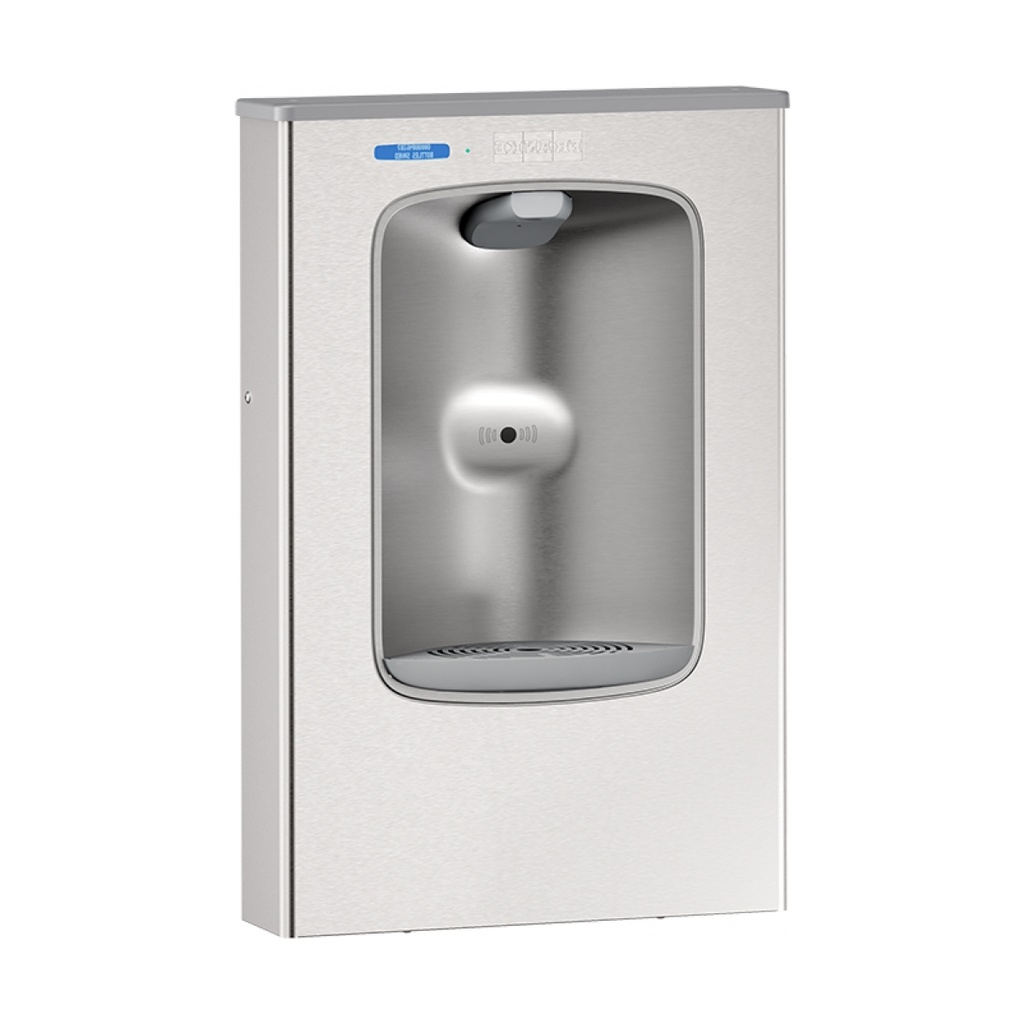

Franke KEPWSMEBF-STN Sensor Activated Bottle Filler Drinking Fountain
Drinking fountains
KEPWSMEBF-STN Bottle filler, sensor
Article Number
213.0653.605
Surface mount sports bottle fillers are non-refrigerated units that deliver ambient water. Deep alcove to accommodate for larger diameter containers even if they have a small neck. Built-in 100 micron strainer stops particles before they enter the waterway. Waterways are lead-free in materials and construction. Heavy duty steel frame. Tailpiece is sized to accept either 1 1/2 in. (38 mm) or 1 1/4 in. (32 mm) P-trap. P-Trap not included.
Product Certified to NSF/ANSI Standard 61, Annex G (weighted average lead content of 0.25% or less). Models covered by this specification comply with all known Plumbing Codes. Listed by Underwriters' Laboratories to U.S. and Canadian standards. Surface mount, sensor activated with bottle counter. 5 11/16 x 16 5/16 x 24 15/16" Overall (FB x LR x H). 144 x 414 x 633 mm Overall (FB x LR x H).
Product Information
Features
Cabinet finish Brushed stainless
Type of operation Sensor
Drinking bubbler No
Bottle filler included Yes
Product Dimensions
Overall front to back 5.669 "
Overall left to right 16.299 "
Overall height 24.921 "
Installation
Wall mounting type Surface
Product identification
Model KEPWSMEBF-STN
Brand FRANKE
Product category Drinking fountains
Drinking fountain type Bottle fillers
Product specifications
Outlet size DN32 / 1 1/4"
Inlet size DN10 / 3/8"
Input supply voltage Hz 60 Hz
Input supply voltage V 115 V
Wheelchair accessibility Yes
Certification UL, NSF, CSA
