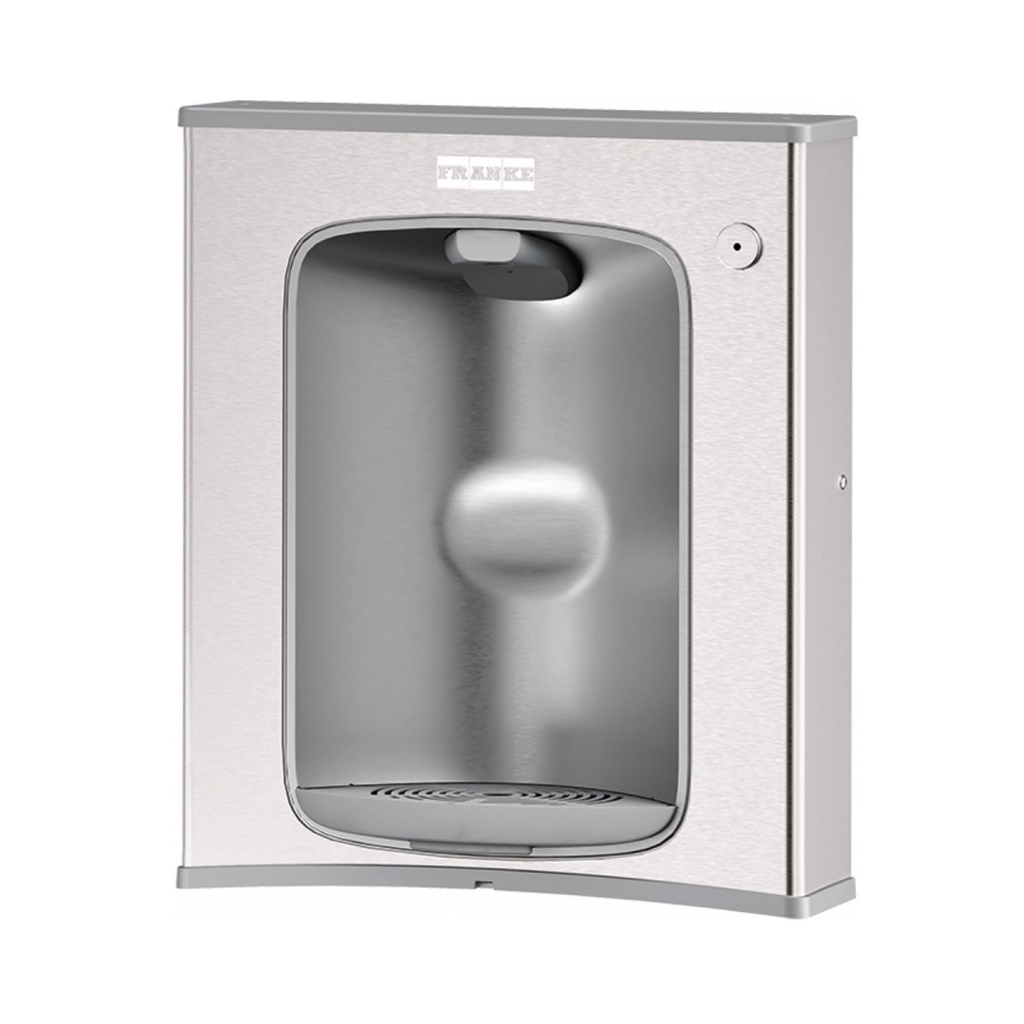

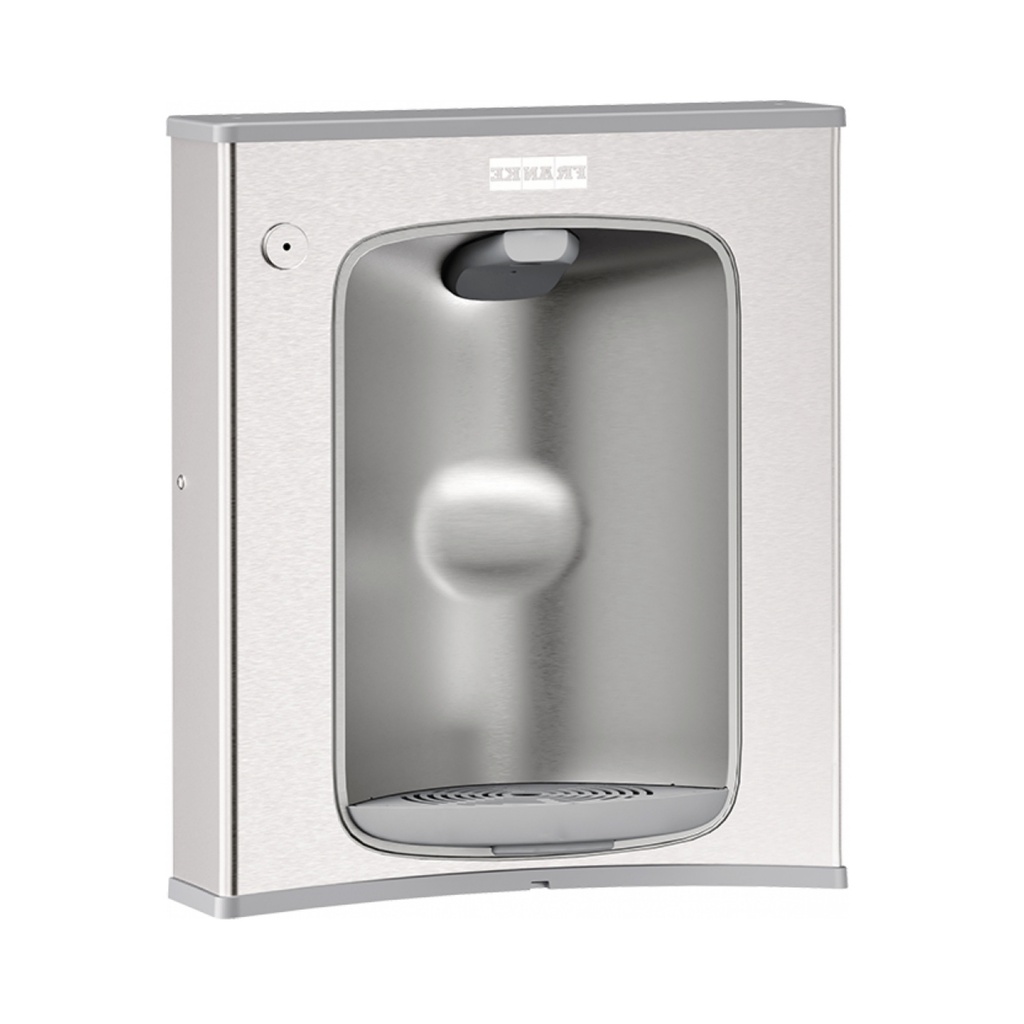

Franke KEPWSBF Retrofit Sports Bottle Filler Stainless
KEPWSBF Retrofit bottle filler, push | 213.0653.603
The KEPWSBF sports bottle filler is designed to retrofit on existing KEPAC family of coolers as well as existing competitors products. Cabinet finish is brushed stainless steel. Deep alcove to accommodate for larger diameter containers even if they have a small neck. Waterways are lead-free in materials and construction.
Unit is mechanically activated with a push button. Surface mount frame assembly. 0.5gpm (1.9 lpm) flow rate. Product Certified to NSF/ANSI Standard 61, Annex G (weighted average lead content of 0.25% or less).
Models covered by this specification comply with all known Plumbing Codes. Listed by Underwriters’ Laboratories to U.S. and Canadian standards. 6 7/16 x 16 1/4 x 19 5/16" Overall (FB x LR x H). 163 x 413 x 490 mm Overall (FB x LR x H).

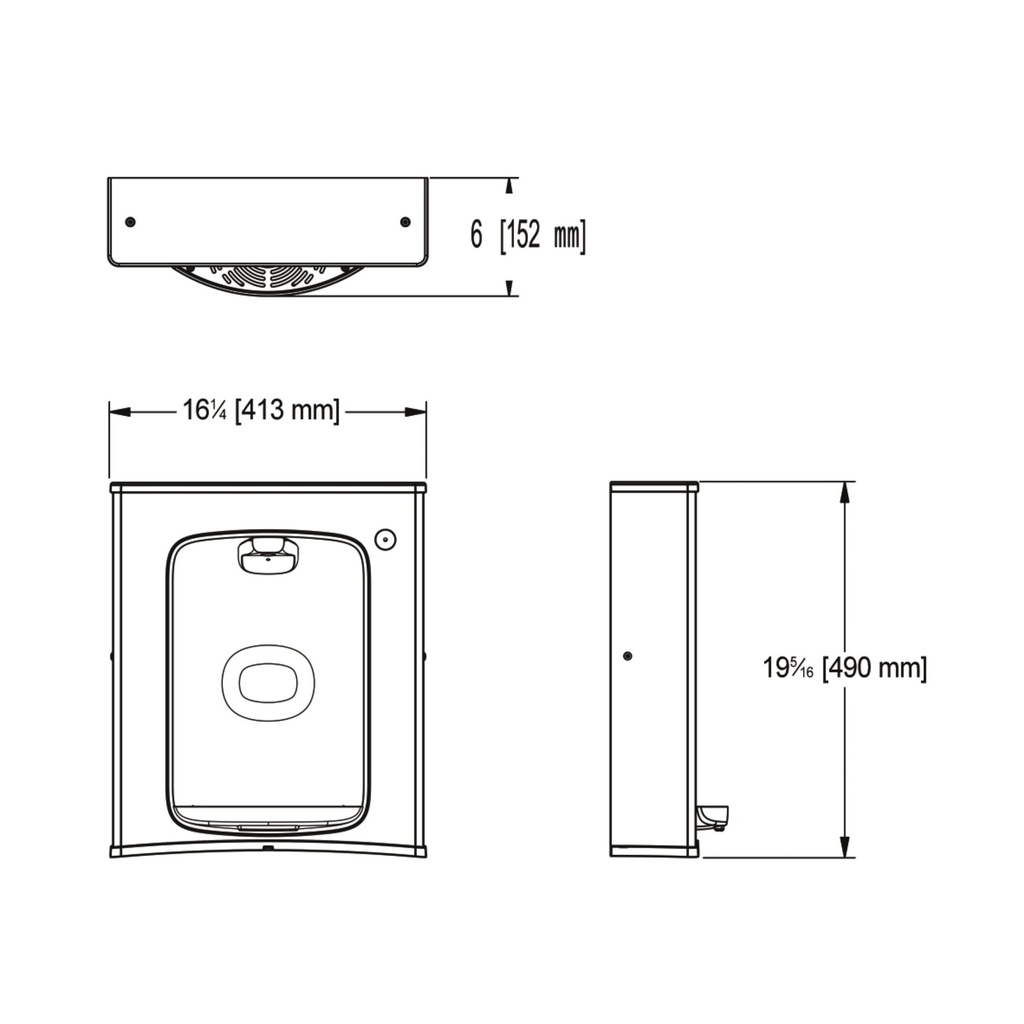

Product Dimensions
Overall front to back 6.417
Overall left to right 16.26
Overall height 19.291
Installation
Wall mounting type Retrofit
Product specifications
Outlet size DN32 / 1 1/4"
Inlet size DN8 / 1/4"
Wheelchair accessibility Yes
Certification NSF
Certification CSA
Certification UL
Product identification
Model KEPWSBF
Brand FRANKE
Product category Drinking fountains
Drinking fountain type Bottle fillers
Features
Cabinet finish Brushed stainless
Type of operation Manual
Drinking bubbler No
Bottle filler included Yes
