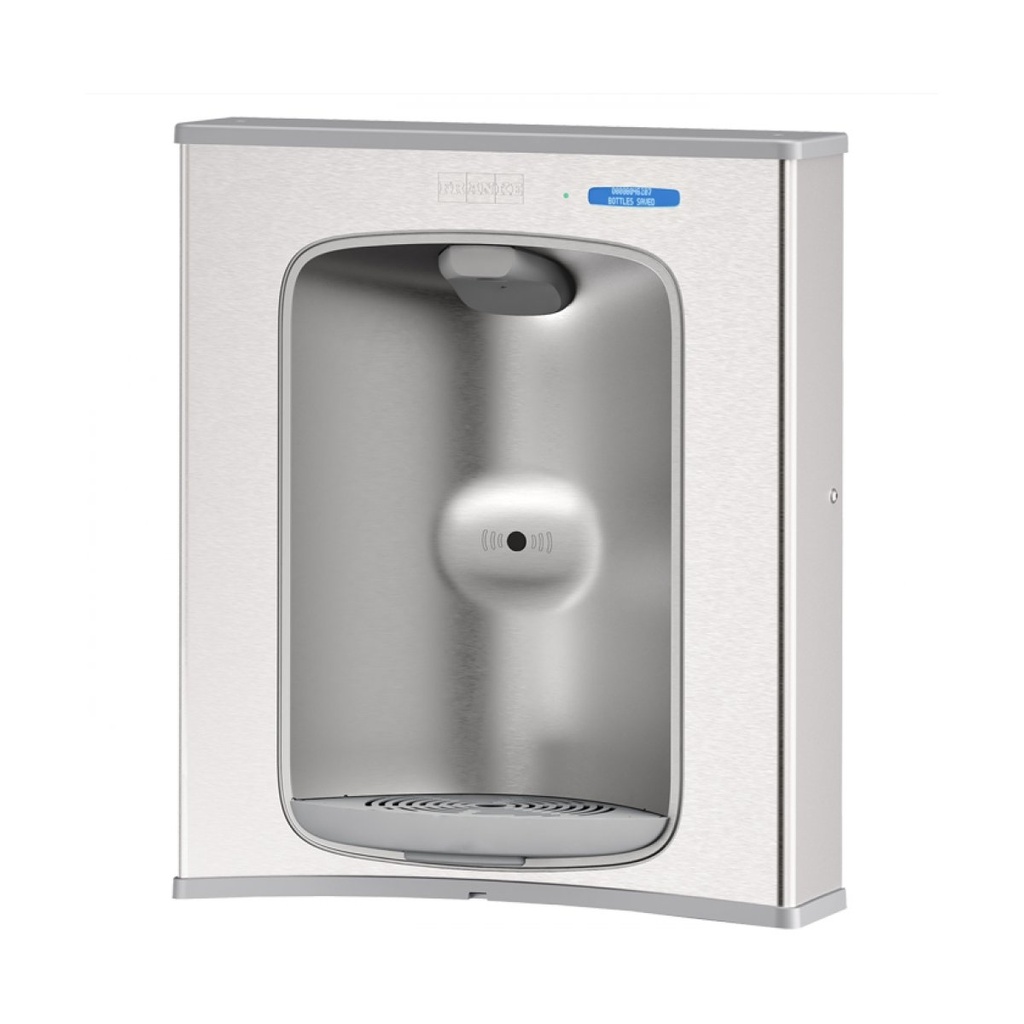

Franke KEPWEBF Retrofit Electronic Sports Bottle Filler
Drinking fountains
KEPWEBF Retrofit bottle filler, sensor
Article Number
213.0653.604
The KEPWEBF sports bottle filler is designed to retrofit on existing KEPAC family of coolers as well as existing competitors products. Cabinet finish is brushed stainless steel. Waterways are lead-free in materials and construction. Complete with bottle counter and system status indicator. If installed onto a filtered water cooler, the status indicator can signal when filter changes are recommended.
With non-filtered coolers, this system status will remain green. This retrofit is not meant to install on an electric eye cooler. Units with optional glass fillers must have the glass filler disconnected and removed. Unit is sensor activated. Surface mount frame assembly. 1.0 gpm (3.7 lpm) flow rate.
Product Certified to NSF/ANSI Standard 61, Annex G (weighted average lead content of 0.25% or less). Models covered by this specification comply with all known Plumbing Codes. Listed by Underwriters' Laboratories to U.S. and Canadian standards. Sensor activated bottle filler with electronic digital counter. 6 7/16 x 16 1/4 x 19 5/16" Overall (FB x LR x H). 163 x 413 x 490 mm Overall (FB x LR x H).
Product Information
Features
Cabinet finish Brushed stainless
Type of operation Sensor
Drinking bubbler No
Bottle filler included Yes
Product Dimensions
Overall front to back 5.984 "
Overall left to right 16.26 "
Overall height 19.291 "
Installation
Wall mounting type Retrofit
Product identification
Model KEPWEBF
Brand FRANKE
Product category Drinking fountains
Drinking fountain type Bottle fillers
Product specifications
Outlet size DN32 / 1 1/4"
Inlet size DN8 / 1/4"
Input supply voltage Hz 60 Hz
Input supply voltage V 115 V
Wheelchair accessibility Yes
Certification UL, NSF, CSA
