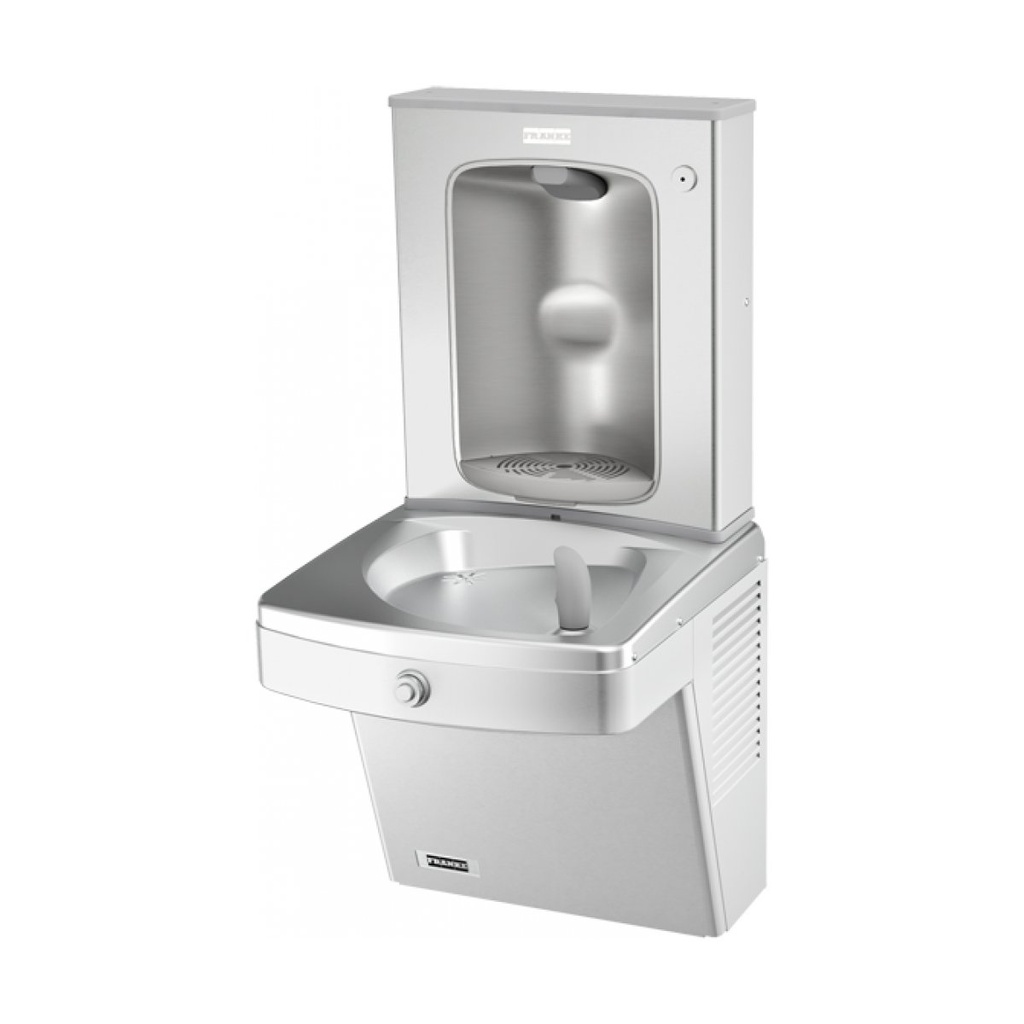

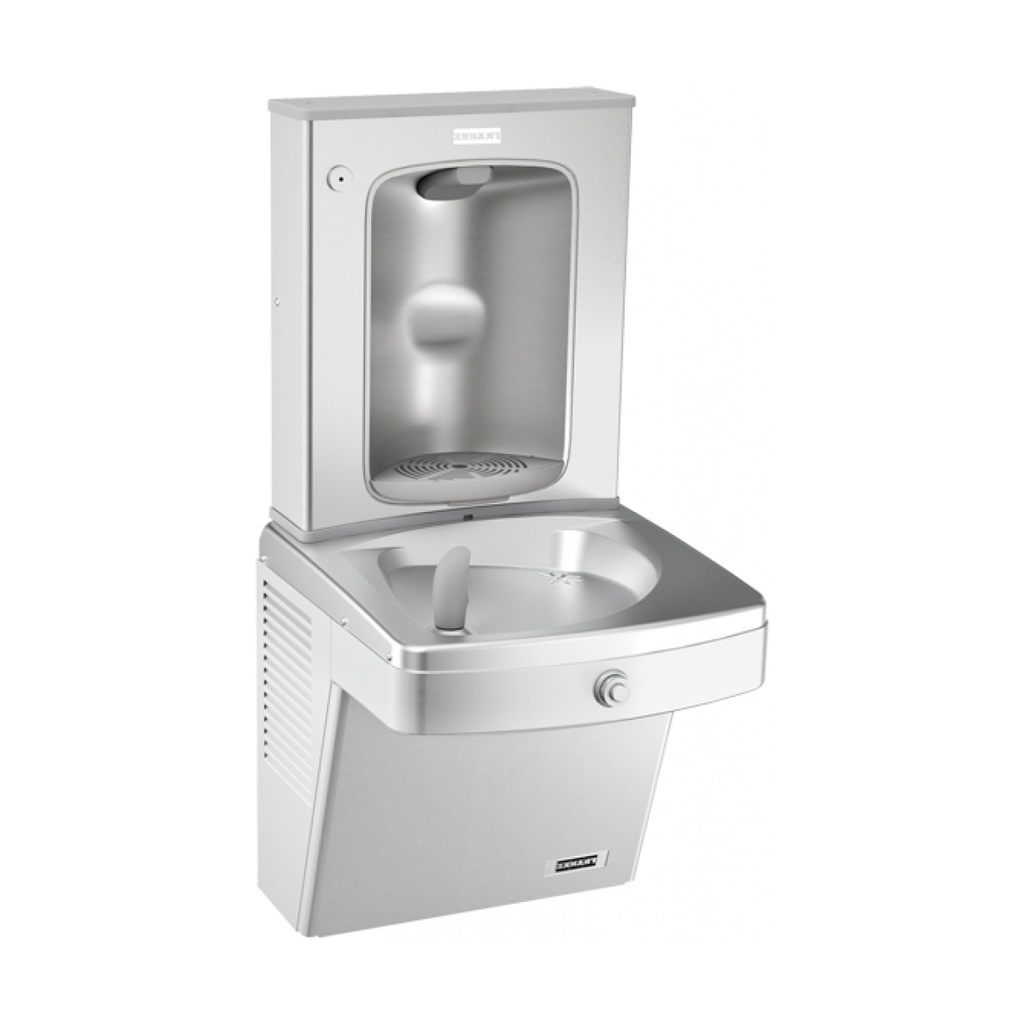

Franke KEPVAC-SBF-STN Non-Chilled Vandal Resistant Drinking Fountain
Drinking fountains
KEPVAC-SBF-STN Combo, vandal resistant
Article Number
213.0670.166
Combination sports bottle filler. Sports bottle filler cabinet finish is brushed stainless steel. Waterways are lead-free in materials and construction. Drinking fountain is mechanically activated. Surface mount frame assembly. Units have built-in 100 micron strainer stops particles before they enter the waterway.
One piece stainless steel top. Low flow bubbler with flexible guard. Heavy duty galvanized steel frame. Unit will comply with wheelchair accessibility when properly installed. Product Certified to NSF/ANSI Standard 61, Annex G (weighted average lead content of 0.25% or less). Models covered by this specification comply with all known Plumbing Codes.
Listed by Underwriters’ Laboratories to U.S. and Canadian standards. Vandal resistant push button, no external stream height adjustment, stainless steel, manually activated bottle filler. Optional filter kit F041253-001. 18 9/16 x 17 5/8 x 37 13/16" Overall (FB x LR x H). 472 x 448 x 960 mm Overall (FB x LR x H).
Product Information
Features
Cabinet finish Greystone
Vandal resistant Yes
Type of operation Manual
Drinking bubbler Yes
Bottle filler included Yes
Product Dimensions
Overall front to back 18.583 "
Overall left to right 17.638 "
Overall height 37.795 "
Installation
Wall mounting type Wall mounting
Recommended wall carrier IWC2203
Product identification
Model KEPVAC-SBF-STN
Brand FRANKE
Product category Drinking fountains
Drinking fountain type Fountain bottle filler combo
Product specifications
Outlet size DN32 / 1 1/4"
Inlet size DN10 / 3/8"
Wheelchair accessibility Yes
Certification UL, NSF, CSA
