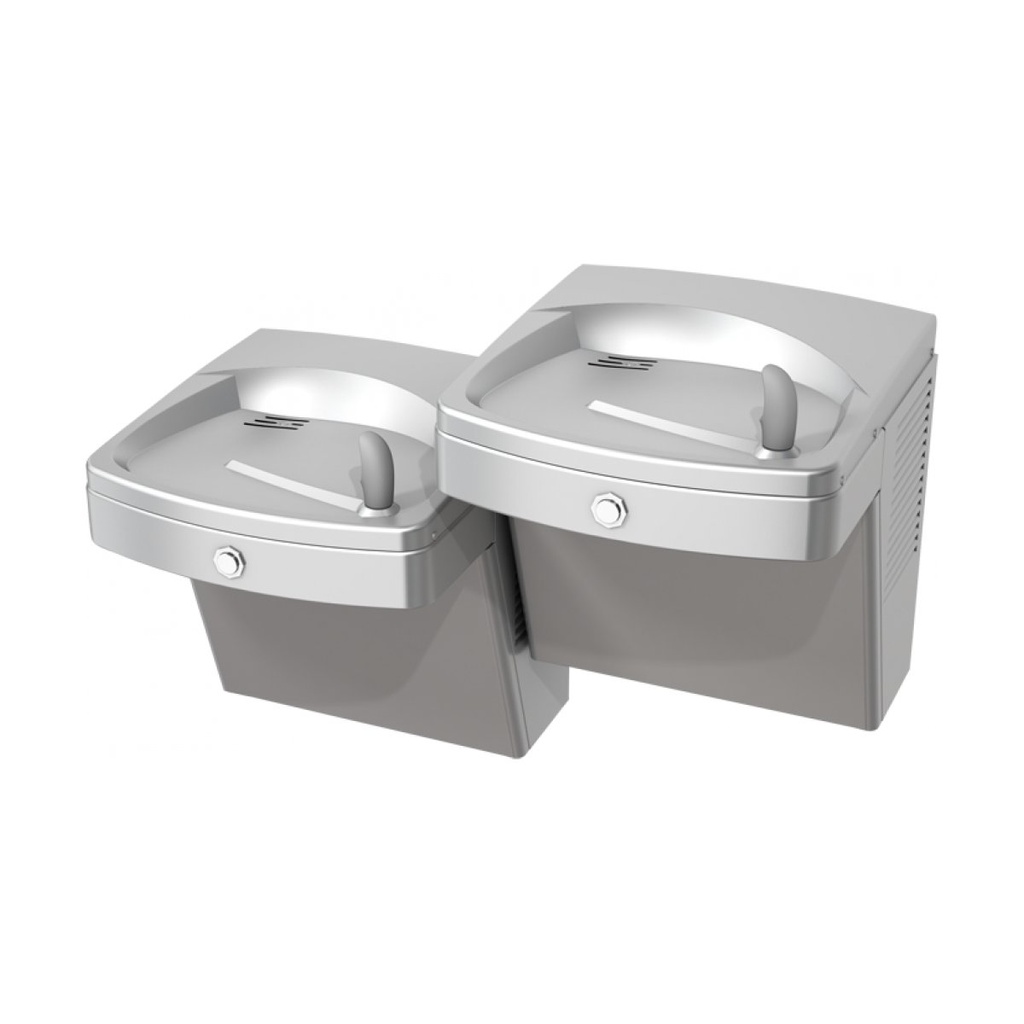

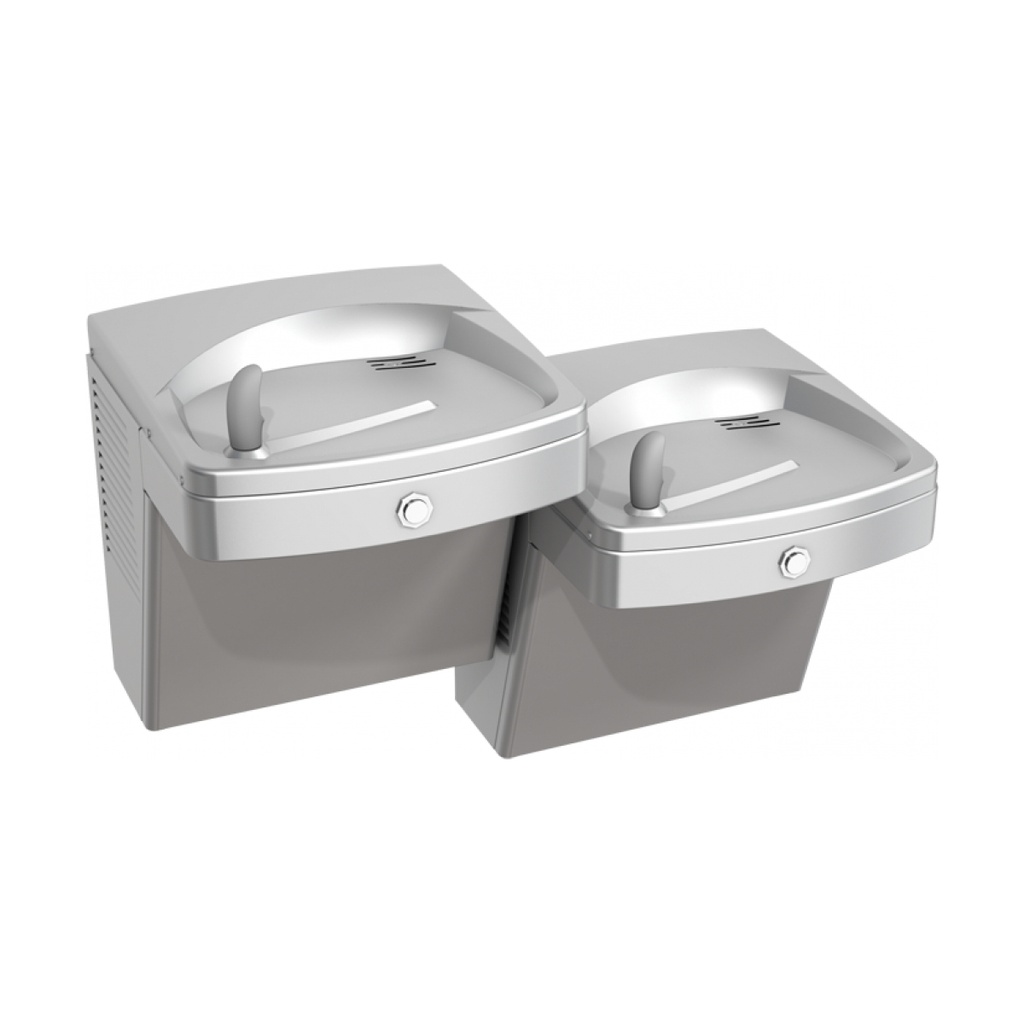

Franke KEPV8ACSL-STN Chilled Vandal Resistant Split Level Drinking Fountain
Drinking fountains
KEPV8ACSL-STN Split level fountain
Article Number
213.0670.143
Universal split level chilled drinking fountain in vandal-resistant stainless steel. Waterways are lead-free in materials and construction. Drinking fountains have built-in 100 micron strainer stops particles before they enter the waterway.
Stainless steel top. One piece, low flow, flexible tamper-proof bubbler. Heavy duty galvanized steel frame. Unit will comply with wheelchair accessibility when properly installed. Compressor is hermetically sealed, reciprocating type, single phase, lifetime lubrication.
The condenser is cooled with a permanently lubricated fan motor. Stainless steel cooling tank with continuous copper tubing. Factory preset thermostat,. Easily accessible by removal of front panel. R134a refrigerant. Product Certified to NSF/ANSI Standard 61, Annex G (weighted average lead content of 0.25% or less). Models covered by this specification comply with all known Plumbing Codes.
Listed by Underwriters’ Laboratories to U.S. and Canadian standards. 8 gph chiller, vandal resistant push button, no external stream height adjustment, stainless steel. Optional filter kit F041253-001. 18 9/16 x 35 1/4 x 27 3/16" Overall (FB x LR x H). 472 x 896 x 690 mm Overall (FB x LR x H).
Product Information
Features
Cabinet finish Brushed stainless
Chilled Yes
Vandal resistant Yes
Type of operation Manual
Drinking bubbler Yes
Bottle filler included No
Product Dimensions
Overall front to back 18.583 "
Overall left to right 35.276 "
Overall height 27.165 "
Installation
Wall mounting type Wall mounting
Recommended wall carrier IWC2203
Product identification
Model KEPV8ACSL-STN
Brand FRANKE
Product category Drinking fountains
Drinking fountain type Drinking fountains
Product specifications
Cooling capacity 8 gph
Outlet size DN32 / 1 1/4"
Inlet size DN10 / 3/8"
Input supply voltage Hz 60 Hz
Input supply voltage V 115 V
Motor power 500 W
Wheelchair accessibility Yes
Certification UL, NSF, CSA
