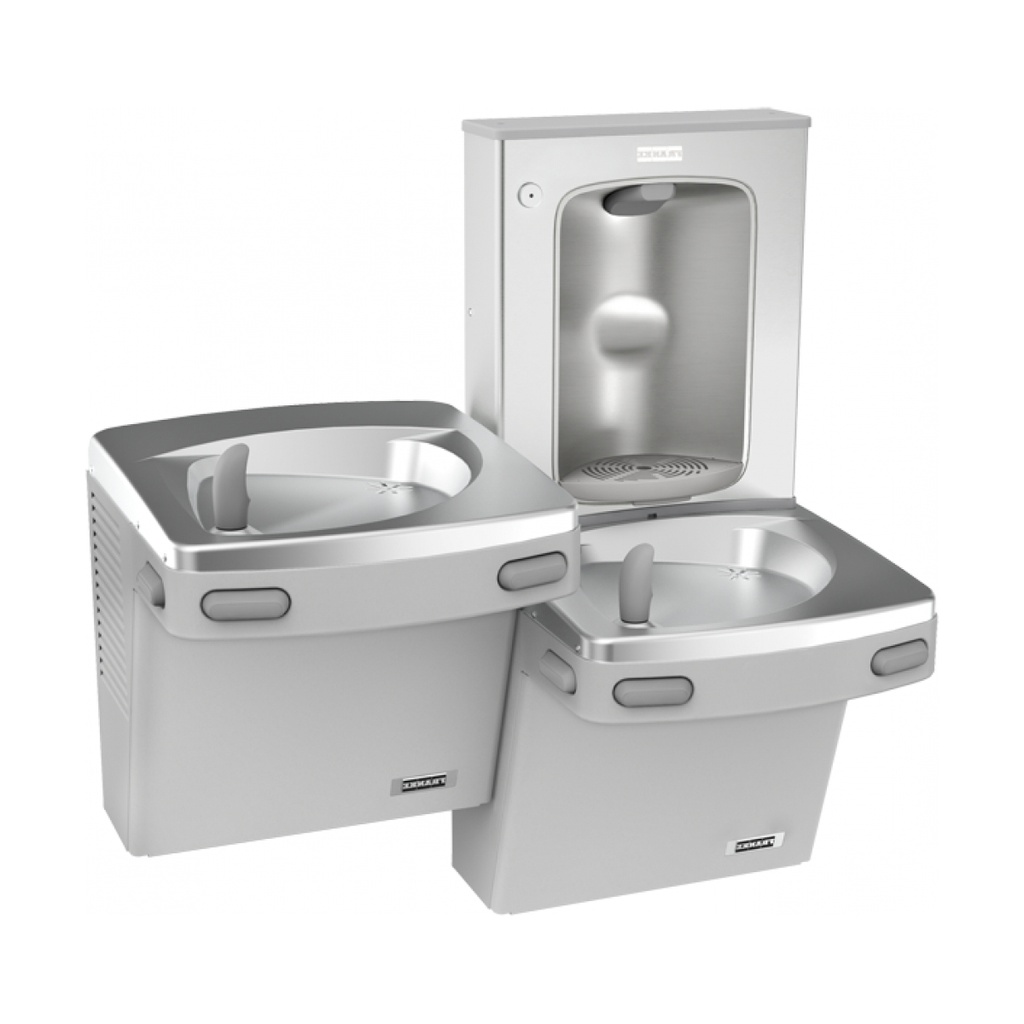

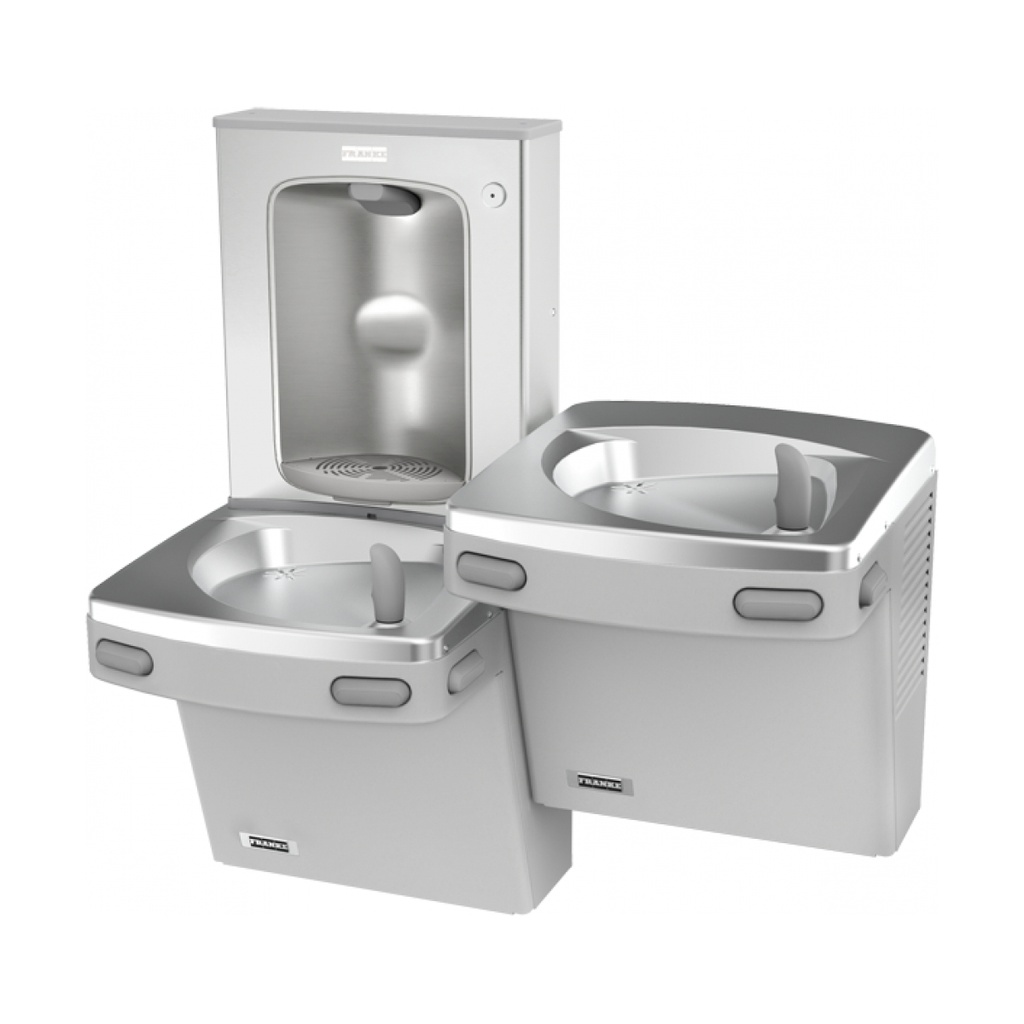

Franke KEP8ACSL-SBF-GRY Chilled Split Level Universal Fountain Greystone
Drinking fountains
KEP8ACSL-SBF-GRY Chilled fountain
Article Number
213.0670.170
Combination chilled split level drinking fountain with sports bottle filler. Deep alcove to accommodate for larger diameter containers even if they have a small neck. Sports bottle filler cabinet finish is brushed stainless steel. Waterways are lead-free in materials and construction. Surface mount frame assembly. Units have built-in 100 micron strainer stops particles before they enter the waterway.
One piece stainless steel top. Low flow bubbler with flexible guard. Heavy duty galvanized steel frame. Unit will comply with wheelchair accessibility when properly installed. Compressor is hermetically sealed, reciprocating type, single phase, lifetime lubrication. The condenser is cooled with a permanently lubricated fan motor. Stainless steel cooling tank with continuous copper tubing. Factory preset thermostat, easily accessible by removal of front panel. R134a refrigerant.
Product Certified to NSF/ANSI Standard 61, Annex G (weighted average lead content of 0.25% or less). Models covered by this specification comply with all known Plumbing Codes. Listed by Underwriters’ Laboratories to U.S. and Canadian standards. 8 gph chiller, greystone finish. Optional filter kit F041253-001. 18 9/16 x 36 1/8 x 37 13/16" Overall (FB x LR x H). 472 x 917 x 960 mm Overall (FB x LR x H).
Product Information
Features
Cabinet finish Greystone
Chilled Yes
Type of operation Manual
Drinking bubbler Yes
Bottle filler included Yes
Product Dimensions
Overall front to back 18.583 "
Overall left to right 36.102 "
Overall height 37.795 "
Installation
Wall mounting type Wall mounting
Recommended wall carrier IWC2203
Product identification
Model KEP8ACSL-SBF-GRY
Brand FRANKE
Product category Drinking fountains
Drinking fountain type Split level fountain & filler
Product specifications
Cooling capacity 8 gph
Outlet size DN32 / 1 1/4"
Inlet size DN10 / 3/8"
Input supply voltage Hz 60 Hz
Input supply voltage V 115 V
Motor power 500 W
Wheelchair accessibility Yes
Certification UL, NSF, CSA
