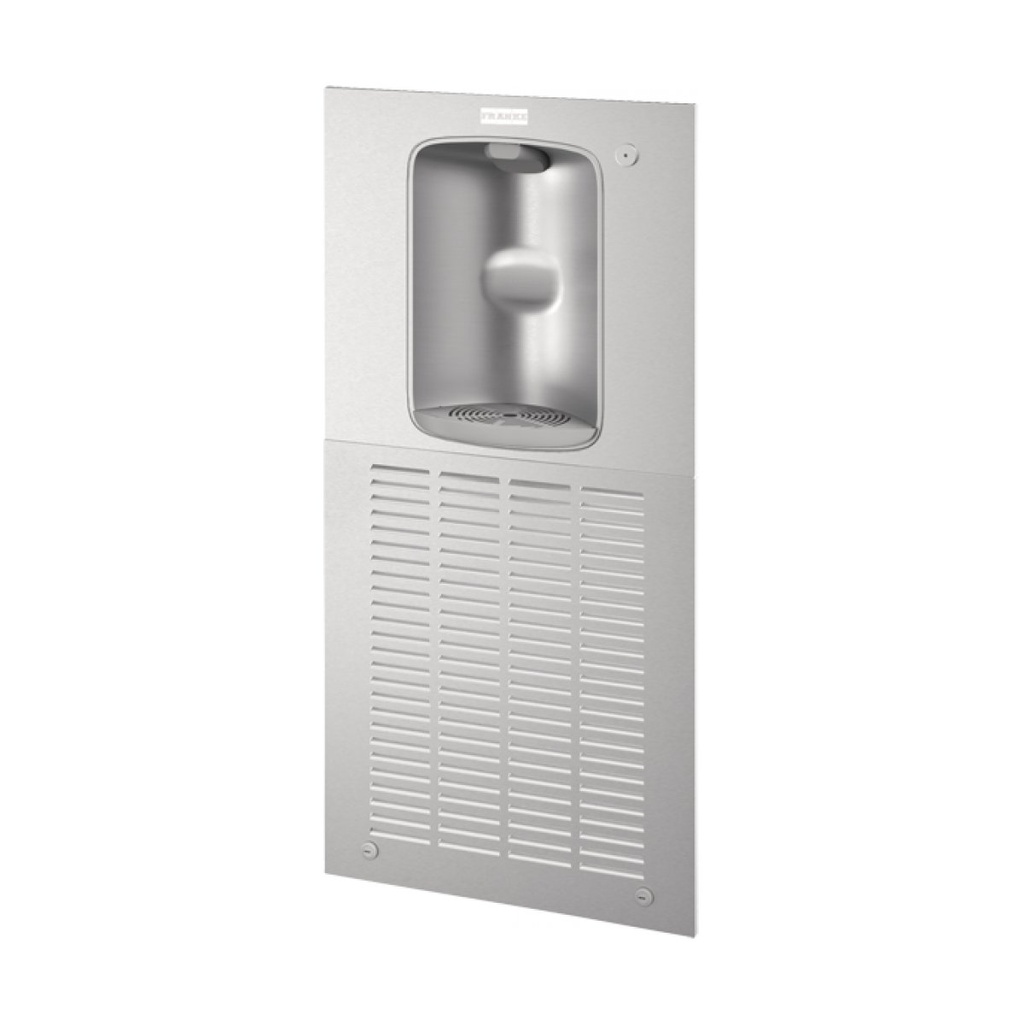

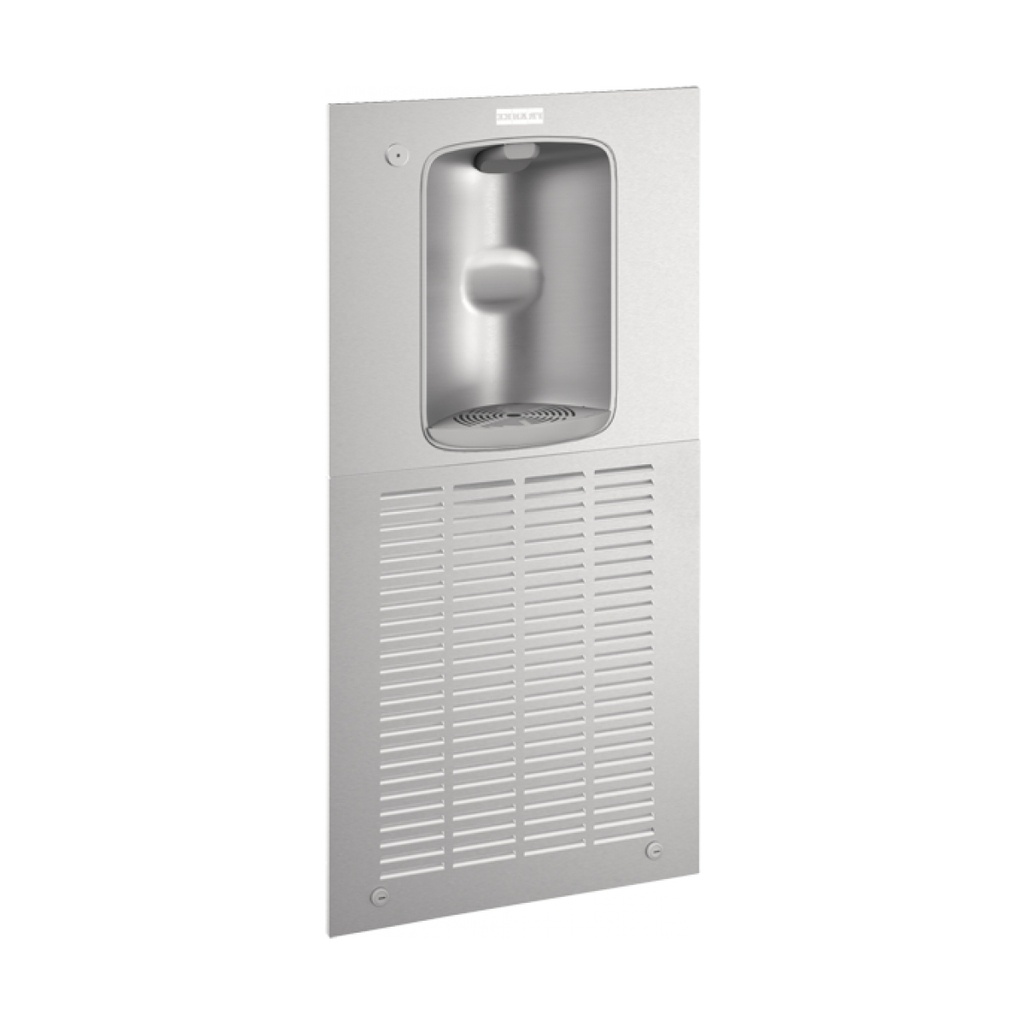

Franke KEMW8SBF-STN Recessed Chilled Sports Bottle Filler
Drinking fountains
KEMW8SBF-STN Chilled recessed filler
Article Number
213.0670.145
Recessed chilled sports bottle filler. Heavy duty steel frame with brushed stainless steel panels. Built-in 100 micron strainer stops particles before they enter the waterway. Unit will comply with wheelchair accessibility when properly installed. Included tailpiece is sized to accept either 1 1/2 inch (38 mm) or 1 1/4 inch (32 mm) P-trap (not included).
Compressor is hermetically sealed, reciprocating type, single phase, lifetime lubrication. The condenser is cooled with a permanently lubricated fan motor. Stainless steel cooling tank with continuous copper tubing. Factory preset thermostat, easily accessible by removal of front panel. R134a refrigerant.
Product Certified to NSF/ANSI Standard 61, Annex G (weighted average lead content of 0.25% or less). Models covered by this specification comply with all known Plumbing Codes. Listed by Underwriters’ Laboratories to U.S. and Canadian standards. 8 gph chiller, mechanically activated push button. Optional filter kit F041253-001. 1 5/16 x 19 3/4 x 40 3/4" Overall (FB x LR x H). 33 x 502 x 1035 mm Overall (FB x LR x H).
Product Information
Features
Cabinet finish Brushed stainless
Chilled Yes
Type of operation Manual
Drinking bubbler Yes
Bottle filler included Yes
Product Dimensions
Overall front to back 1.299 "
Overall left to right 19.764 "
Overall height 40.748 "
Installation
Wall mounting type Recessed
Product identification
Model KEMW8SBF-STN
Brand FRANKE
Product category Drinking fountains
Drinking fountain type Bottle fillers
Product specifications
Cooling capacity 8 gph
Outlet size DN32 / 1 1/4"
Inlet size DN10 / 3/8"
Input supply voltage Hz 60 Hz
Input supply voltage V 115 V
Motor power 500 W
Wheelchair accessibility Yes
Certification UL, NSF, CSA
