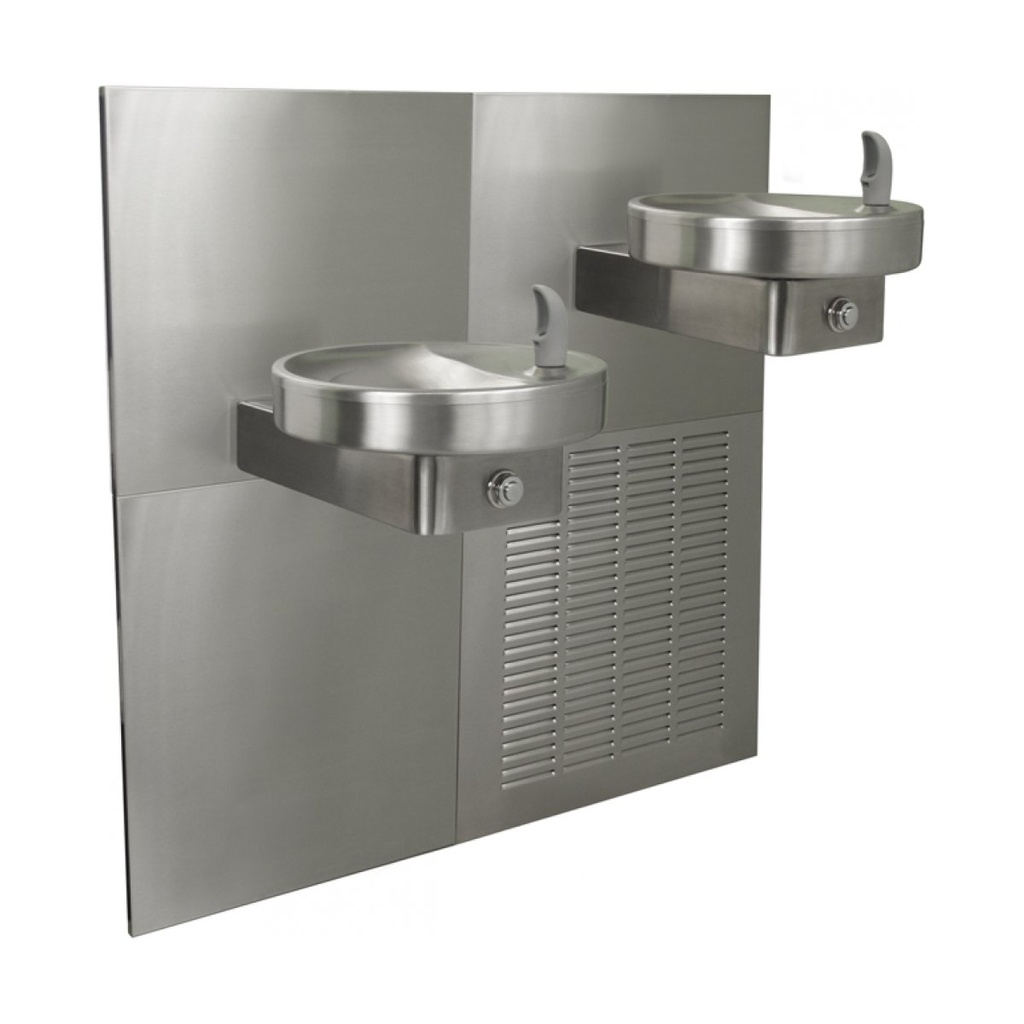

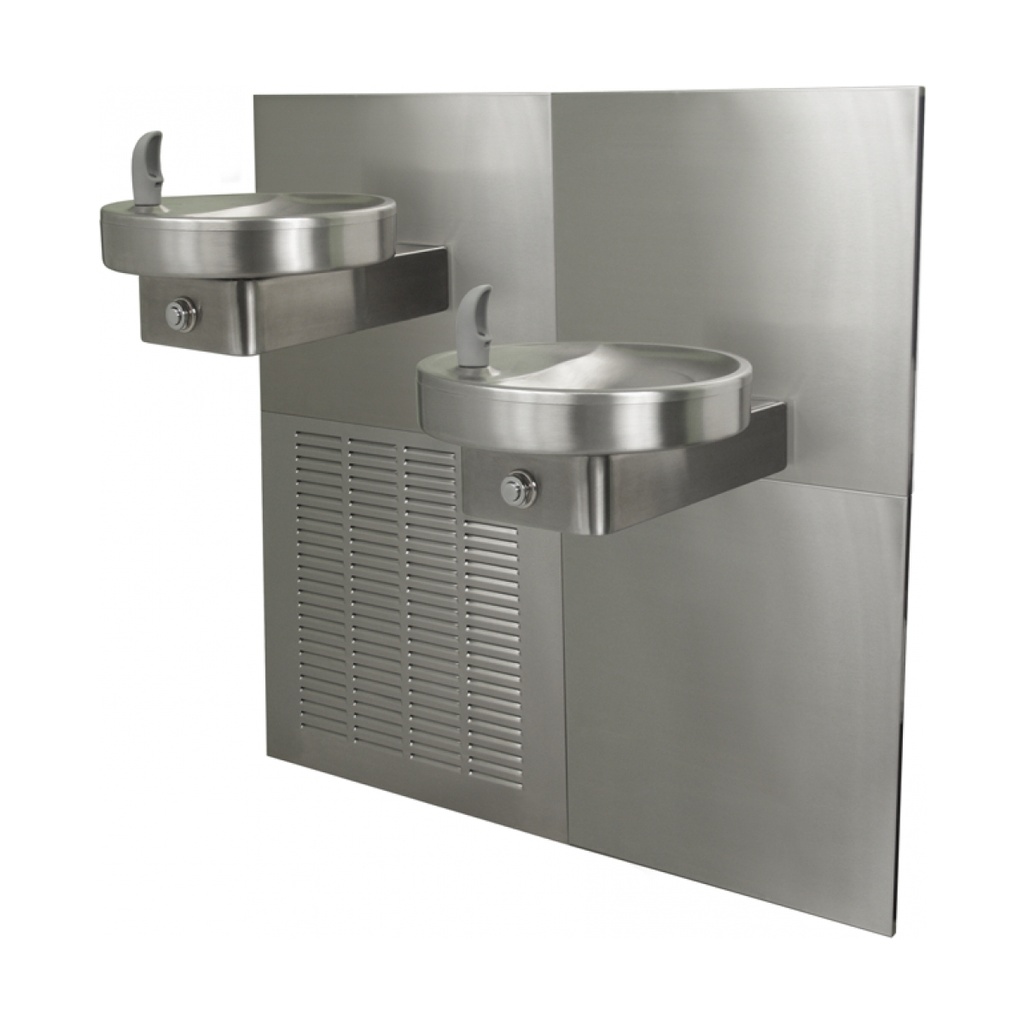

Franke KEM8CR-STN Chilled Modular Fountain Stainless Steel
Drinking fountains
KEM8CR-STN Fountain, Chilled
Article Number
213.0670.125
Split level stainless steel bowl fountain chilled. Heavy duty galvanized steel wall mounting frame with brushed stainless panels. Waterways are lead-free in materials and construction. Built-in 100 micron strainer stops particles before they enter the waterway. tamper-proof flexible bubbler.
Mechanical push button. Unit will comply with wheelchair accessibility when properly installed. Compressor is hermetically sealed, reciprocating type, single phase, lifetime lubrication. The condenser is cooled with a permanently lubricated fan motor. Stainless steel cooling tank with continuous copper tubing. Factory preset thermostat, easily accessible by removal of front panel. R134a refrigerant.
Product Certified to NSF/ANSI Standard 61, Annex G (weighted average lead content of 0.25% or less). Models covered by this specification comply with all known Plumbing Codes. Listed by Underwriters’ Laboratories to U.S. and Canadian standards. 8 gph chiller. Optional filter kit F041253-001. 18 1/4 x 39 1/2 x 40 3/4" Overall (FB x LR x H). 463 x 1003 x 1035 mm Overall (FB x LR x H).
Product Information
Features
Cabinet finish Brushed stainless
Chilled Yes
Type of operation Manual
Drinking bubbler Yes
Bottle filler included No
Product Dimensions
Overall front to back 18.228 "
Overall left to right 39.488 "
Overall height 40.748 "
Installation
Wall mounting type Wall mounting
Product identification
Model KEM8CR-STN
Brand FRANKE
Product category Drinking fountains
Drinking fountain type Drinking fountains
Product specifications
Cooling capacity 8 gph
Outlet size DN32 / 1 1/4"
Inlet size DN10 / 3/8"
Input supply voltage Hz 60 Hz
Input supply voltage V 115 V
Motor power 500 W
Wheelchair accessibility Yes
Certification UL, NSF, CSA
