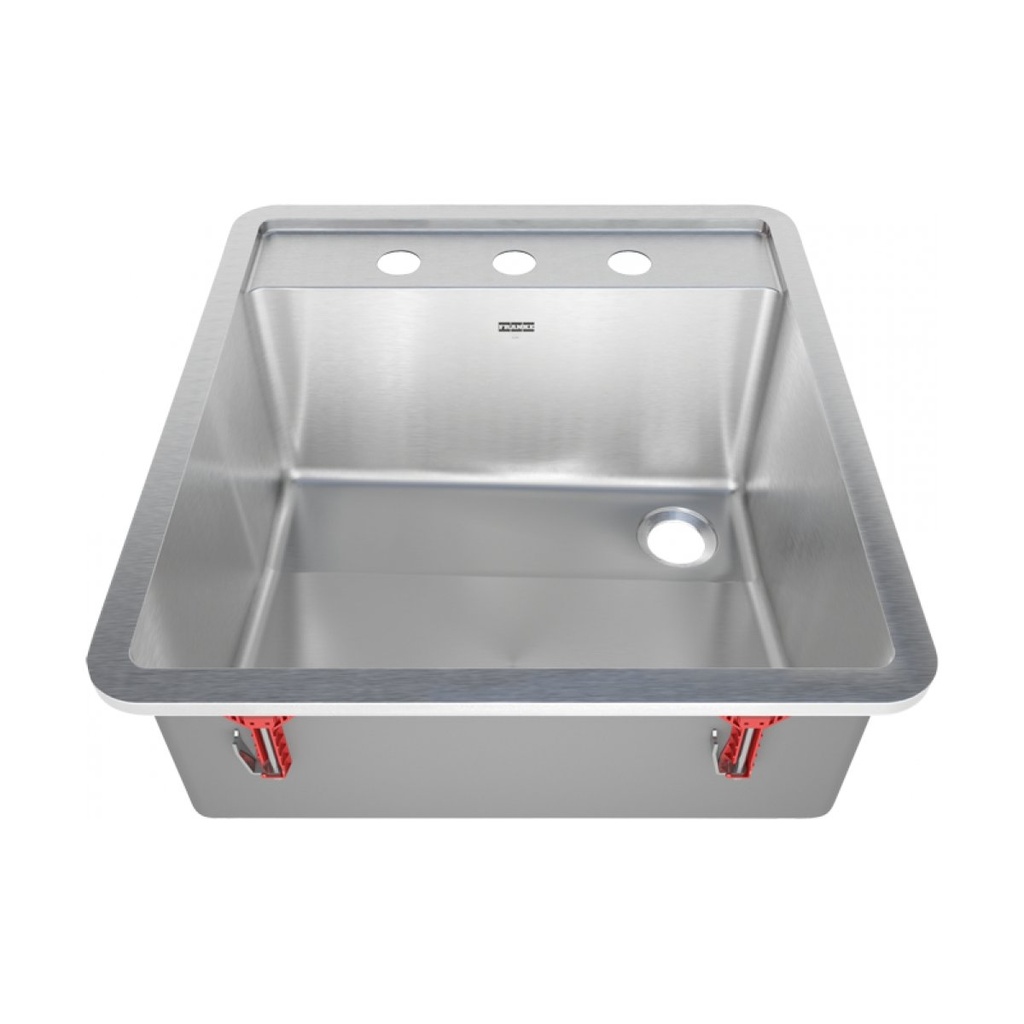

Franke HWS6810P-3 Clinical Wash Sink Stainless Steel
Healthcare
HWS6810P-3 Clinical Wash Sink
Article Number
214.0493.257
Model Options:
HWS6810P-3-3, 3 faucet holes 1 1/2" diameter, 4" centres, 8" centreset.
HWS6810P-3, Custom (non-returnable). 21 1/2 x 20" Overall. 16 x 18 x 10" Bowl. (FB x LR x D). 546 x 508 mm Overall. 406 x 457 x 254 mm Bowl. (FB x LR x D).
Single compartment self rimming topmount (or undermount) medical hand wash sink. 18 gauge (1.2 mm), type 304 stainless steel. Sink compartment is angled to reduce splashing and waste is offset to reduce the risk of any bacteria contamination and splashing.
Exposed surfaces are #4 satin finished. Undercoated to reduce condensation and resonance. Includes waste fitting, sound deadening pads, factory applied rim seal, cutout template, and factory installed EZ TORQUE™ fasteners. Certified to ASME A112.19.3-2008 / CSA B45.4-08. Right rear waste location.
Includes 1 1/2" (38 mm) duplex waste assembly with rubber stopper and 1 1/2" (DN38) brass tailpiece, model 100. With faucet ledge.
Product Information
Features
Waste assembly Included
Waste fitting Duplex waste with stopper
Product Dimensions
Overall front to back 21.496 "
Overall left to right 20 "
Bowl dimension front to back 15.984 "
Bowl dimension left to right 17.992 "
Bowl depth 10 "
Installation
Installation type Topmount, Undermount
Installation system EZ Torque
Product identification
Model HWS6810P-3
Brand FRANKE
Product category Healthcare
Healthcare category Dual mount healthcare sinks
Product specifications
Gauge 18
Waste location Right rear
Waste size 1 1/2" (38mm)
Type of material Type 304
Certification cUPC
Material code CNS 18/10
Surface finish #4 Satin
Number of bowls 1
Faucet ledge position Yes
Number of faucet holes Specify when ordering
Tailpiece diameter (in) 1 1/2" (38mm)
