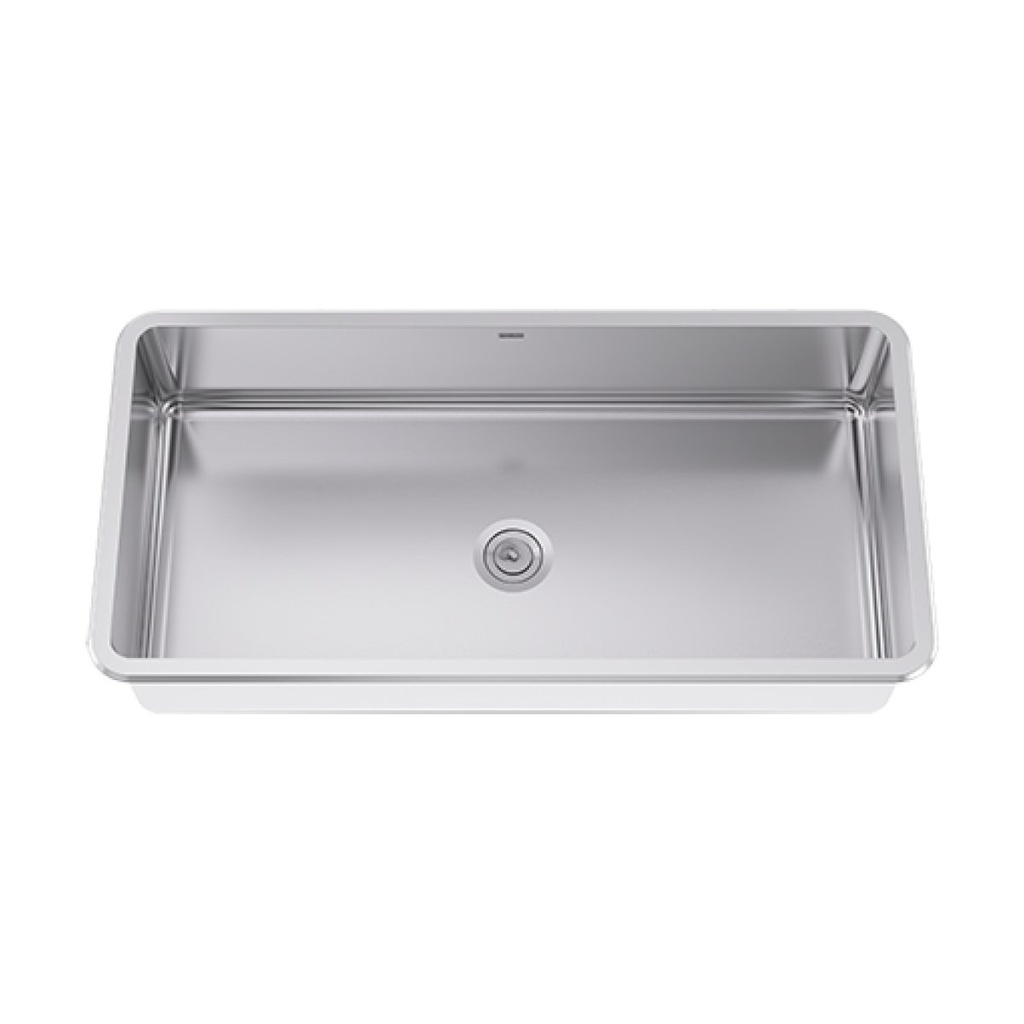

Franke ART36-316-3C Type 316 Art Room Sink No Ledge Stainless Steel
Type 316 sinks
ART36-316-3C Type 316 Art Room sink
Article Number
253.0221.197
Single bowl commercial sink made from 1.2 mm thick corrosion resistant type 316 EN 1.4401 17/12/2 stainless steel. Self rimming edge. Exposed surfaces are satin finished. Undercoated to reduce condensation and resonance. Includes factory applied rim seal to create a water tight seal between the sink and countertop.
Installation kit and waste assembly included. Certified to ASME A112.19.3-2008 / CSA B45.4-08. Centre waste location. Includes 1 1/2" (38 mm) type 316 (EN1.4401 17/12/2) stainless steel duplex waste assembly with rubber stopper and 1 1/2" (DN38) type 316 (EN1.4401 17/12/2) stainless steel tailpiece, model 200-316. 19 1/8 x 38 1/8" Overall. 17 x 36 x 8" Bowl. (FB x LR x D). 486 x 968 mm Overall. 432 x 914 x 203 mm Bowl. (FB x LR x D).
Product Information
Features
Waste assembly Included
Waste fitting Duplex waste with stopper
Product Dimensions
Overall front to back 19.134 "
Overall left to right 38.15 "
Bowl dimension front to back 17.008 "
Bowl dimension left to right 35.984 "
Bowl depth 7.992 "
Installation
Installation type Topmount
Installation system EZ Torque
Product identification
Model ART36-316-3C
Brand FRANKE
Product category Type 316 sinks
Product specifications
Gauge 18
Waste size 1 1/2" (38mm)
Tailpiece diameter (in) 1 1/2" (38mm)
Certification cUPC
Type of material Type 316
Material code EN1.4401 17/12/2
Surface finish #4 Satin
Number of bowls 1
Faucet ledge position No
Waste location Center
