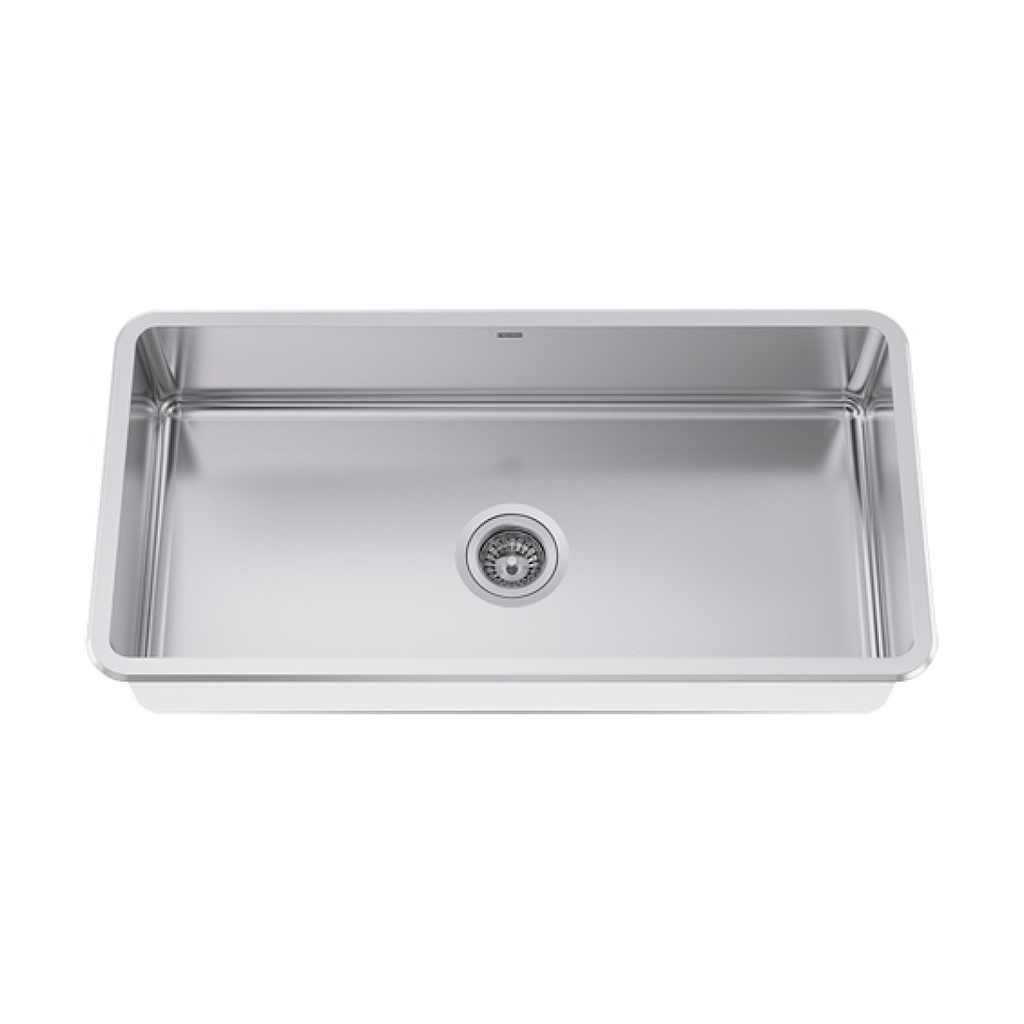

Franke ART36-1 Classroom 18 Gauge Art Room Sink Stainless Steel
Classroom sinks
ART36-1 Art room sink, 3.5" waste, 36"
Article Number
203.0481.312
Single compartment self rimming topmount sink less faucet ledge. 18 gauge (1.2 mm), type 304 (CNS 18/10) stainless steel. Exposed surfaces are #4 satin finished. Undercoated to reduce condensation and resonance.
Includes waste fitting, factory applied rim seal, and factory installed EZ TORQUE™ fasteners. Certified to ASME A112.19.3-2008 / CSA B45.4-08.
Centre waste location. Includes 3 1/2" (89 mm) crumb cup strainer with 1 1/2" (DN38) brass tailpiece. 19 1/8 x 38 1/8" Overall. 17 x 36 x 8" Bowl. (FB x LR x D). 486 x 969 mm Overall. 432 x 914 x 203 mm Bowl. (FB x LR x D).
Product Information
Features
Waste assembly Included
Waste fitting Crumb cup waste assembly
Product Dimensions
Overall front to back 19.134 "
Overall left to right 38.15 "
Bowl dimension front to back 17.008 "
Bowl dimension left to right 35.984 "
Bowl depth 7.992 "
Installation
Installation type Topmount
Installation system EZ Torque
Product identification
Model ART36-1
Brand FRANKE
Product category Classroom sinks
Product specifications
Gauge 18
Certification cUPC
Type of material Type 304
Material code CNS 18/10
Surface finish #4 Satin
Number of bowls 1
Faucet ledge position No
Waste location Center
Waste size 3 1/2" (89mm)
Tailpiece diameter (in) 1 1/2" (38mm)
