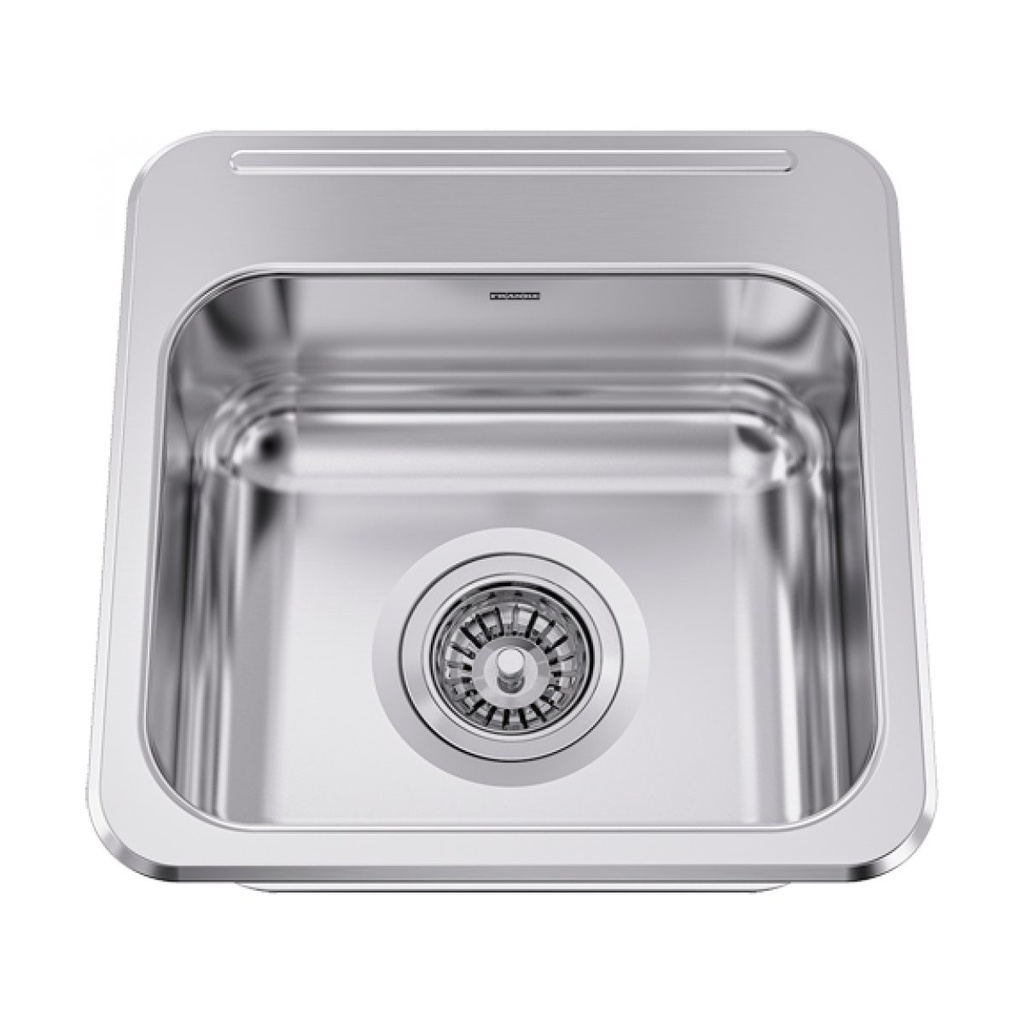

Franke ALBS1306P-1 Single Sink With Ledge 18 Gauge Stainless Steel
Stainless steel sinks
ALBS1306P-1 ADA Single topmount, 18 ga
Article Number
207.0682.625
Model Options, specify when ordering:
ALBS1306P-1-1, 1 faucet hole, 1 1/2" diameter.
ALBS1306P-1-2, 2 faucet holes, 1 1/2" diameter, 4" centres.
ALBS1306P-1, Custom (non-returnable). 15 7/16 x 15 1/8" Overall. 11 x 13 x 6" Bowl. (FB x LR x D). 392 x 384 mm Overall. 279 x 330 x 152 mm Bowl. (FB x LR x D).
Single compartment, self rimming topmount sink with faucet ledge. 18 gauge (1.2 mm), type 304 (CNS 18/10) stainless steel. Exposed surfaces are #4 satin finished. Undercoated to reduce condensation and resonance. Includes waste fitting, factory applied rim seal, cutout template, and factory installed EZ TORQUE™ fasteners.
Certified to ASME A112.19.3-2008 / CSA B45.4-08. Wheelchair accessible: meets ADA (Americans with disabilities act guidelines) and ANSI A117.1 (Accessible and usable buildings and facilities). Check local codes to ensure compliance.
Centre waste location. Includes 3 1/2" (89 mm) crumb cup strainer with 1 1/2" (DN38) brass tailpiece.
Product Information
Features
Waste assembly Included
Waste fitting Crumb cup waste assembly
Product Dimensions
Overall front to back 15.433 "
Overall left to right 15.118 "
Bowl dimension front to back 10.984 "
Bowl dimension left to right 12.992 "
Bowl depth 5.984 "
Installation
Installation type Topmount
Installation system EZ Torque
Product identification
Model ALBS1306P-1
Brand FRANKE
Product category Stainless steel sinks
Product specifications
Gauge 18
Wheelchair accessibility Yes
Certification cUPC
Type of material Type 304
Material code CNS 18/10
Surface finish #4 Satin
Number of bowls 1
Faucet ledge position Yes
Number of faucet holes Specify when ordering
Waste location Center
Waste size 3 1/2" (89mm)
Tailpiece diameter (in) 1 1/2" (38mm)
