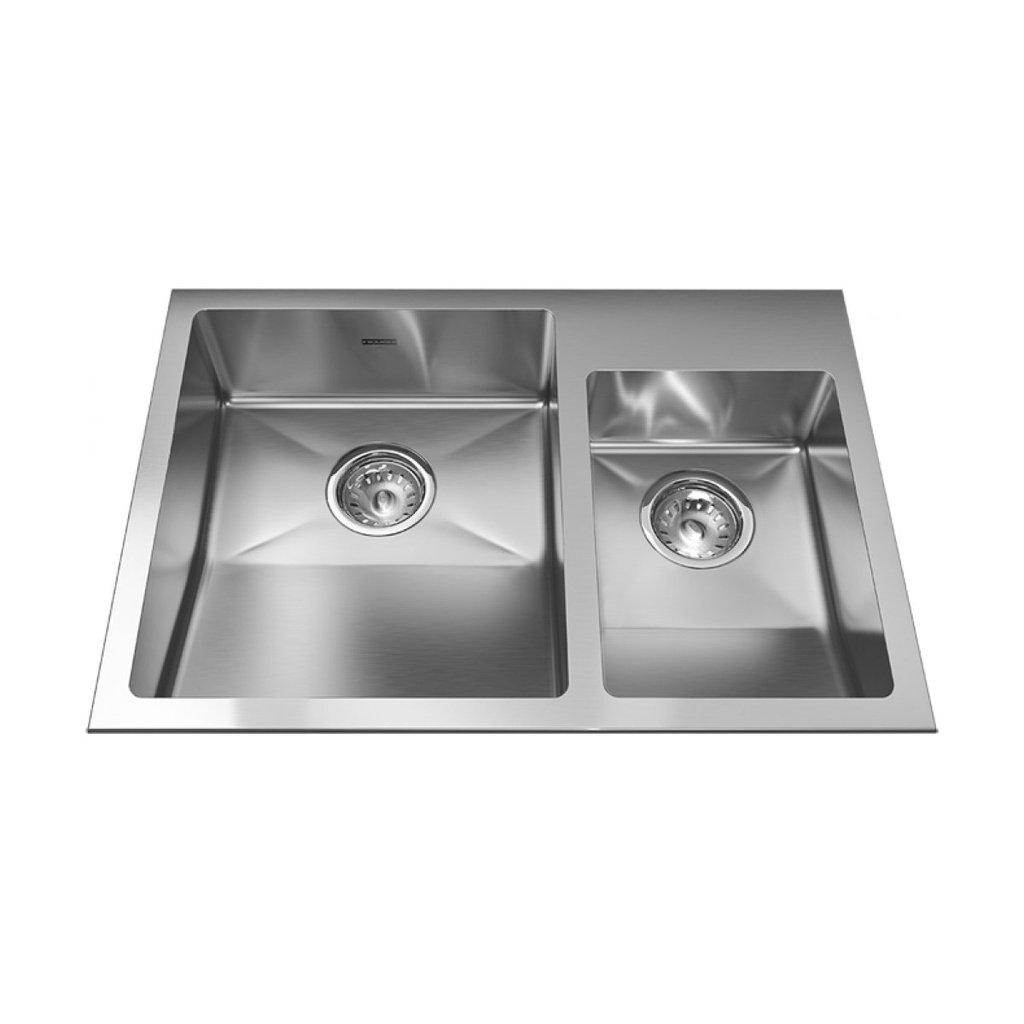

Franke ALBDC182605P-1 Double Sink With Ledge 18 Gauge Stainless Steel
Stainless steel sinks
ALBDC182605P-1 ADA Double bowl topmount
Article Number
253.0221.171
Model Options:
ALBDC182605P-1-2, 2 faucet holes ∅1.5" (38 mm) 8" (204 mm) centreset.
ALBDC182605P-1, Custom(non-returnable). 18 1/4 x 26 5/8" Overall. 16 x 14 x 6" Bowl. (FB x LR x D). 464 x 677 mm Overall. 406 x 356 x 153 mm Bowl. (FB x LR x D).
Double compartment self rimming topmount sink with faucet ledge. 18 gauge (1.2 mm), type 304 (CNS 18/10) stainless steel. Exposed surfaces are #4 satin finished. Undercoated to reduce condensation and resonance.
Includes waste fittings, factory applied rim seal, cutout template, and factory installed EZ TORQUE™ fasteners. Certified to ASME A112.19.3-2008 / CSA B45.4-08.
This sink is specifically designed for Wheelchair accessibility. Unique shape allows for a deeper 6" (152 mm) bowl on the left. Smaller bowl on the right is 5" (127 mm) deep.
The sink can be installed as a topmount or as an undermount. (if undermounting, verify wheelchair clearance as the sink will be mounted below the countertop). We recommend a swivel spout with a remote single lever mixing handle.
Product Information
Features
Waste assembly Included
Waste fitting Crumb cup waste assembly
Product Dimensions
Overall front to back 18.268 "
Overall left to right 26.654 "
Bowl dimension front to back 15.984 "
Bowl dimension left to right 14.016 "
Bowl depth 6.024 "
Installation
Installation type Topmount
Installation system EZ Torque
Product identification
Model ALBDC182605P-1
Brand FRANKE
Product category Stainless steel sinks
Product specifications
Gauge 18
Certification cUPC
Type of material Type 304
Material code CNS 18/10
Surface finish #4 Satin
Number of bowls 2
Faucet ledge position Yes
Number of faucet holes Specify when ordering
Waste location Center back
Waste size 3 1/2" (89mm)
Tailpiece diameter (in) 1 1/2" (38mm)
