Franke ALBD4405P-1-3 Double With Ledge 18 Gauge Stainless Steel
Stainless steel sinks
ALBD4405P-1 ADA Double bowl topmount
Article Number
207.0682.550
Features
Waste assembly Included
Waste fitting Crumb cup waste assembly
Product Dimensions
Overall front to back 18.819 "
Double compartment self rimming topmount sink with faucet ledge. 18 gauge (1.2 mm), type 304 (CNS 18/10) stainless steel. Exposed surfaces are #4 satin finished. Undercoated to reduce condensation and resonance.
Includes waste fittings, factory applied rim seal, cutout template, and factory installed EZ TORQUE™ fasteners. Certified to ASME A112.19.3-2008 / CSA B45.4-08. Wheelchair accessible: meets ADA (Americans with disabilities act guidelines), ANSI A117.1 (Accessible and usable buildings and facilities), and CSA B651- 04 (Accessible design for the built environment).
Check local codes to ensure compliance. Centre back waste location. Includes 3 1/2" (89 mm) crumb cup strainer with 1 1/2" (DN38) brass tailpiece. Sink has Spillway® partition.
Model Options:
ALBD4405P-1-1, 1 faucet hole, 1 1/2" diameter.
ALBD4405P-1-3, 3 faucet holes, 1 1/2" diameter, 4" centres, 8" centreset.
ALBD4405P-1, Custom (non- returnable).

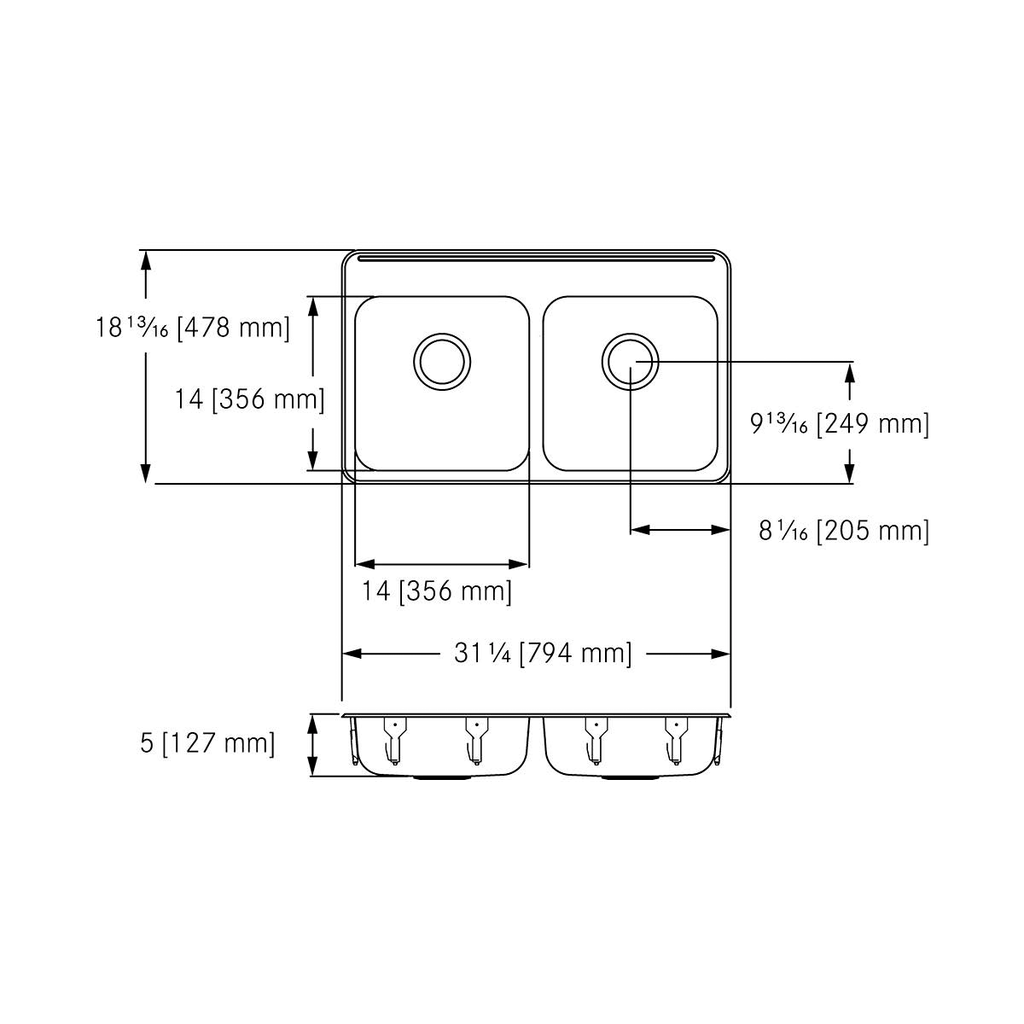

18 13/16 x 31 1/4" Overall. 14 x 14 x 5" Bowl. (FB x LR x D). 478 x 794 mm Overall. 356 x 356 x 127 mm Bowl. (FB x LR x D).
Product Dimensions
Overall front to back 18.819 "
Overall left to right 31.26 "
Bowl dimension front to back 14.016 "
Bowl dimension left to right 14.016 "
Bowl depth 5 "
Installation
Installation type Topmount
Installation system EZ Torque
Product identification
Model ALBD4405P-1
Brand FRANKE
Product category Stainless steel sinks
Product specifications
Gauge 18
Wheelchair accessibility Yes
Certification cUPC
Type of material Type 304
Material code CNS 18/10
Surface finish #4 Satin
Number of bowls 2
Faucet ledge position Yes
Number of faucet holes Specify when ordering
Waste location Center back
Waste size 3 1/2" (89mm)
Tailpiece diameter (in) 1 1/2" (38mm)
