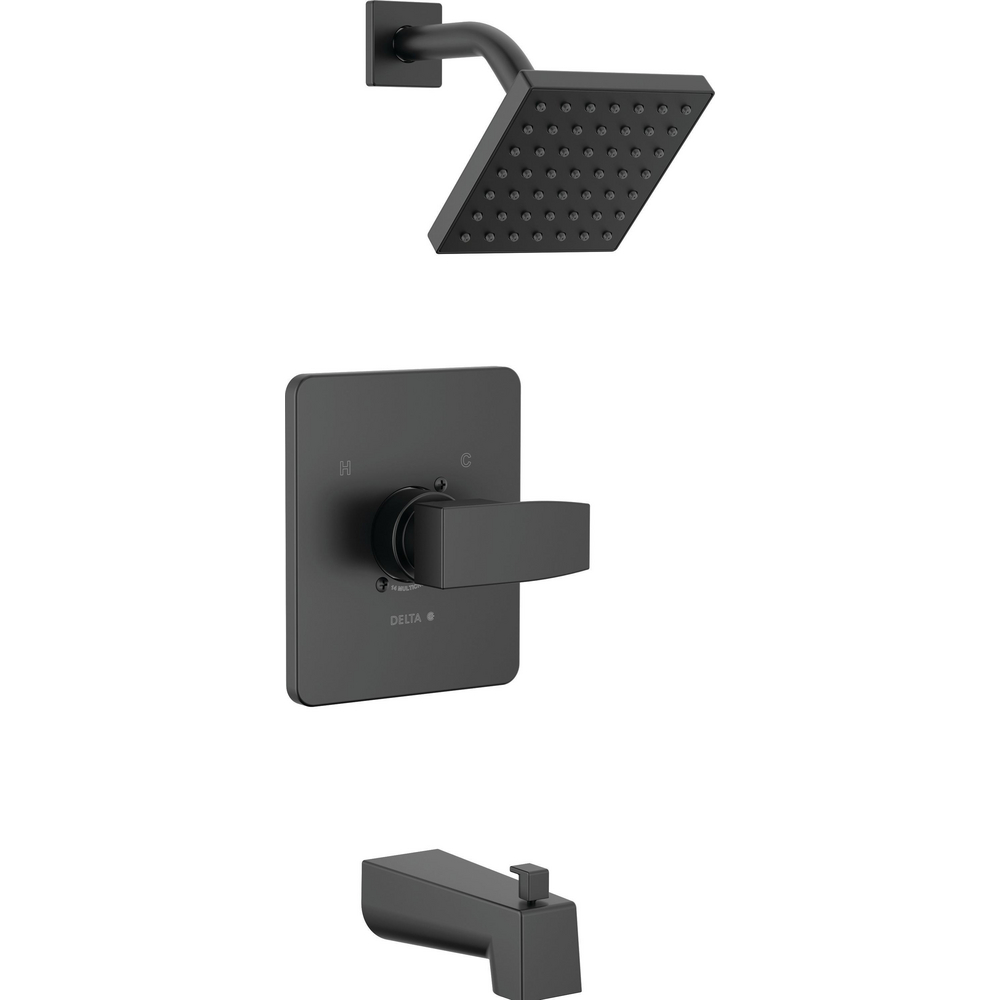

Delta T14467-BL-PP Modern 14 Series Tub and Shower Trim Matte Black
MODERN ANGULAR
Monitor 14 Series Tub & Shower Trim
model#: T14467-BL-PP
Finish: Matte Black
Shower faucet trim kit only, purchase shower valve separately
Monitor Valve protects from rapid changes in water temperature
Monitor pressure balance valve keeps water temperature within a safe ±3.6° F (± 2.0' C), helping to protect you from sudden changes in hot or cold water pressure
Monitor 14 Series single-function pressure balance cartridge
Spray setting: Full Body Spray
Soft, rubber Touch-Clean spray holes allow you to easily wipe away calcium and lime buildup from the spray face of your shower head with the touch of a finger
Trim kit only, must order MultiChoice Universal valve rough (R10000 series) separately to complete the unit
Back-to-back installation capability
Temperature only controlled with handle
ADA Compliant
Pull-up diverter tub spout
Universal tub spout adapter allows for thread, sweat or slip-on installation
WaterSense labeled shower heads use at least 20% less water than the industry standard without compromising performance

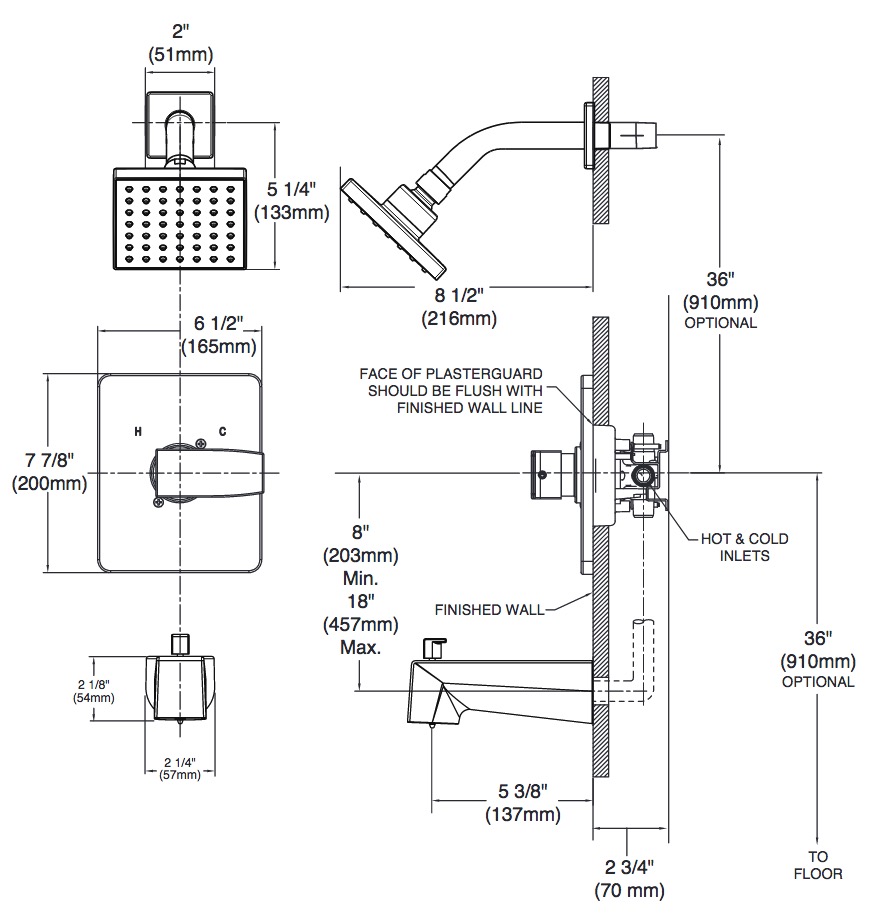

Installation Information
Number of Handles: Single handle
Over All Height: 16
Valve Type: NA
STANDARD SPECIFICATIONS
Single handle pressure balanced tub and shower mixing valve
Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
For use with MultiChoice® Universal rough valve body
NOT INCLUDED AND MUST BE ORDERED SEPARATELY (R10000 Series)
Back-to-back installation capability
Field adjustable means to limit handle rotation into hot water zone
Temperature only controlled with handle
All parts replaceable from the front of the valve
“LHD” indicates less showerhead models
Max. flow rate of spout 6.0 gpm @ 60 psi, 22.7 L/min @ 414 kPa with R10000-UNBX
Max. flow rate of showerhead 1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Universal adapter included allows for thread, sweat or slip-on installation of tub spout
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
ASSE 1016-P
Indicates ADA compliance to ICC/ANSI A117.1 – Valve control only
EPA WaterSense® - Applies to T14267-PP, T14467-PP, & RP101846 only
