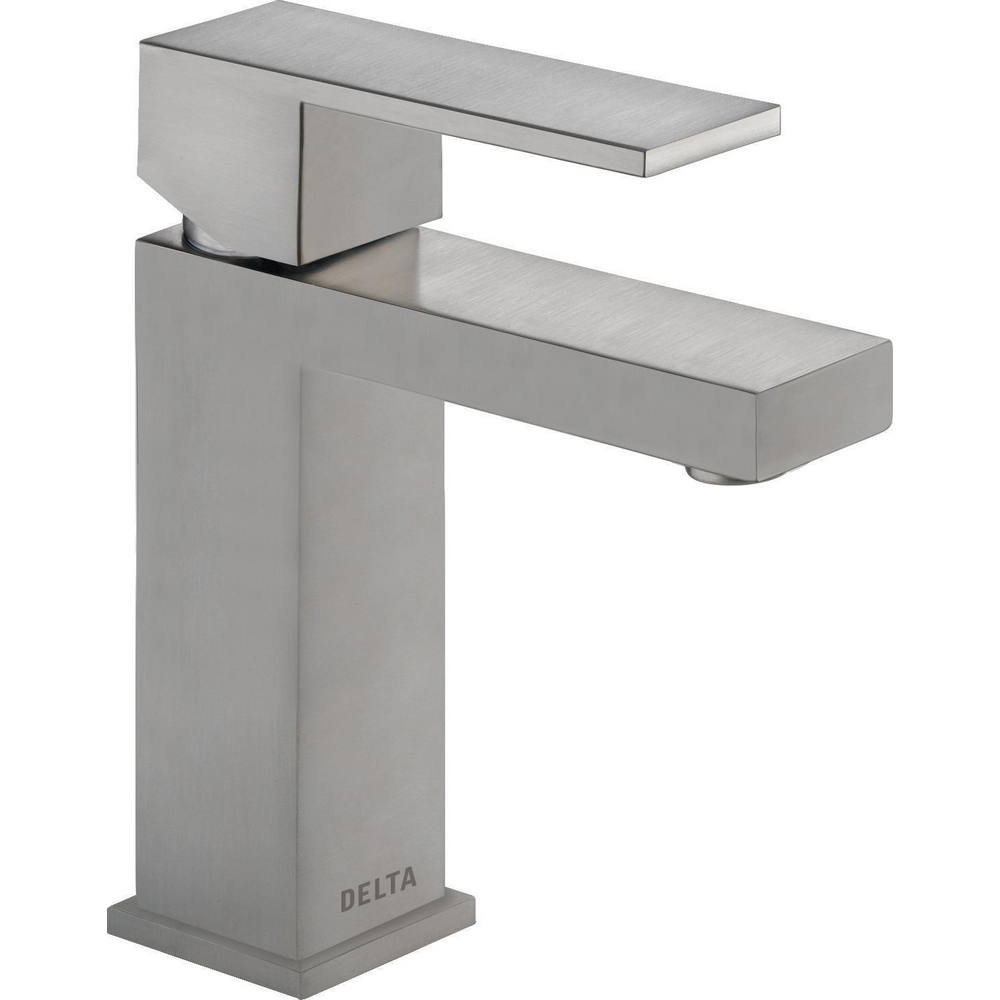

Delta 567LF-SSPP Modern Angular Single Handle Lavatory Faucet Stainless Steel
MODERN ANGULAR
Single Handle Lavatory Faucet
MODEL#: 567LF-SSPP
Finish: Stainless Steel
You can install with confidence, knowing that Delta faucets are backed by our Lifetime Limited Warranty. Delta WaterSense labeled faucets, showers and toilets use at least 20% less water than the industry standard'saving you money without compromising performance.
1 or 3-hole 4" installation
50/50 pop-up
ADA Compliant
Metal push pop-up drain assembly in matching finish (included) is ADA compliant and simple to install, operate and clean
WaterSense labeled faucet uses at least 20% less water than the industry standard without compromising performance
Rigid spout
Rigid spout does not swivel
Integrated InnoFlex PEX supply lines included
3/8-inch compression fittings
Backed by Delta Faucet's Lifetime Limited Warranty

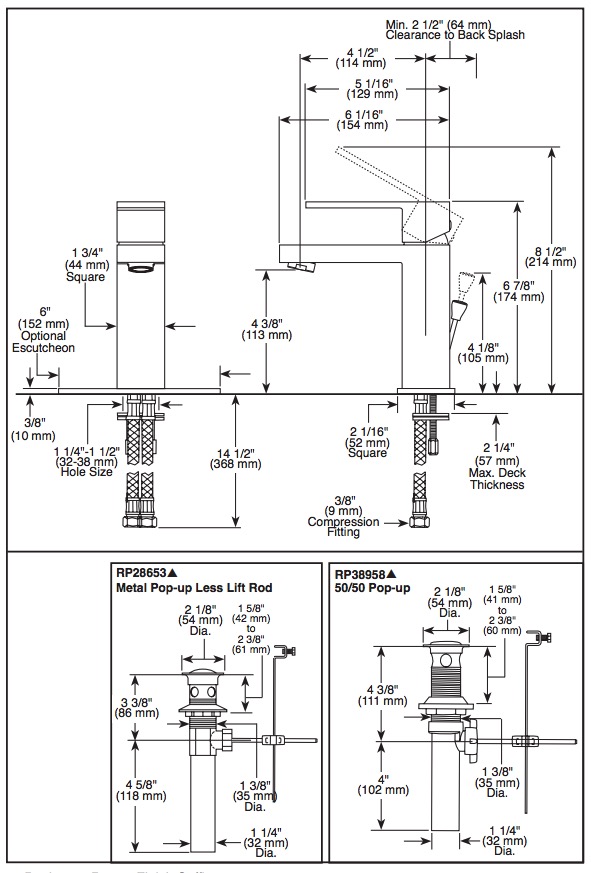

Installation Information
1 or 3-hole 4" installation
Number of Handles: Single handle
Escutcheon: Optional Escutcheon Available
Flow Rate: 1.20 gpm, 4.5 L/min
Spout Height: 5-3/8"
Spout Length: 5-1/2"
Deck to Outlet: 4-1/2"
Fittings Type: 3/8" compression fittings
Drain Type: NA
Deck Thickness: 2.5"
Supply Line: Included InnoFlex Pex-C Supply Lines
Valve Type: Ceramic valve
Over All Height: 7-5/8
STANDARD SPECIFICATIONS:
Max low rate 1.2 gpm @ 60 psi, 4.5 L/min @ 414 kPa.
GPM models provide 1.0 gpm @ 60 psi, 3.8 L/min @ 414 kPa.
HGM models provide 0.5 gpm @ 60 psi,1.9 L/min @ 414 kPa.
One or three hole mount (Escutcheon optional, not included)
Control mechanism is the ceramic disc cartridge.
Red/blue indicator markings.
Solid brass body.
Lift rod hole plug included.
1/4" threaded stud mounting.
Models have 50/50 pop-up type fitting with plated flange and stopper.
Models with suffix "MPU" have metal drain with pop-up type fitting with plated flange and stopper
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
ASME A112.18.2 / CSA B125.2
EPA WaterSense®
Indicates compliance to ICC / ANSI A117.1
Veried compliant with 0.25% weighted average Pb content regulations
